Victron SmartSolar MPPT 150/60-Tr Solar Charge Controller
Victron SmartSolar MPPT 150/60-Tr Solar Charge Controller
Couldn't load pickup availability
High-Capacity MPPT Solar Charging
The Victron SmartSolar MPPT 150/60-Tr Solar Charge Controller is built for larger mobile, marine and off-grid solar systems. It converts energy from a solar array into up to 60A of battery charging current while supporting 12V, 24V, 36V and 48V battery banks.
A 150V maximum PV input provides greater flexibility for series-connected solar panels, helping reduce array current and simplify longer PV cable runs. Built-in Bluetooth makes setup, live monitoring and charging-history review easy through the free VictronConnect app.
Why You'll Love It
- Up to 60A of battery charging current
- 150V maximum PV open-circuit voltage
- Supports 12V, 24V, 36V and 48V battery systems
- Built-in Bluetooth monitoring with the VictronConnect app
- Advanced Maximum Power Point Tracking technology
- Large 35mm² / 2 AWG screw terminals for PV and battery wiring
- VE.Direct connectivity for GX and VRM system integration
- Remote on/off terminals and a programmable relay
- Compatible with the optional SmartSolar Control plug-in display
- Fanless design with up to 98% peak efficiency
- Backed by Victron's 5-year manufacturer's warranty
The 150V PV input limit allows more panels to be connected in series than with a 100V controller. Higher-voltage strings can reduce PV-side current and voltage drop, which is especially useful on cabins, trailers, boats and remote systems with longer cable runs.
Built-in Bluetooth Monitoring
Built-in Bluetooth gives you direct access to the SmartSolar controller through the free VictronConnect app. Check solar production and charging status, review historical performance, configure battery settings and install firmware updates from a compatible phone or tablet.
- View live PV voltage, power and charging current
- Monitor battery voltage and charging stage
- Review daily solar production history
- Select or customize battery charging profiles
- Configure alarms, relay behaviour and operating settings
Live status and historical solar production in the free VictronConnect app.
Typical Solar Array Sizing
The SmartSolar 150/60-Tr can deliver up to 60A of charging current. Its nominal PV capacity increases with battery-bank voltage, making it particularly well suited to larger 24V and 48V systems.
| Battery System | Nominal PV Power |
| 12V Battery Bank | 860W |
| 24V Battery Bank | 1720W |
| 36V Battery Bank | 2580W |
| 48V Battery Bank | 3440W |
These figures are the controller's nominal PV power ratings. Some array oversizing may be possible, but the complete array must always remain within the controller's voltage and current limits. The array's calculated cold-weather open-circuit voltage must remain below the absolute 150V maximum, and Victron specifies a 145V start-up and operating limit. Panel specifications, wiring arrangement and local minimum temperature must all be considered. Not sure whether your panels are a suitable match? Contact us for help and we will be happy to review your proposed configuration.

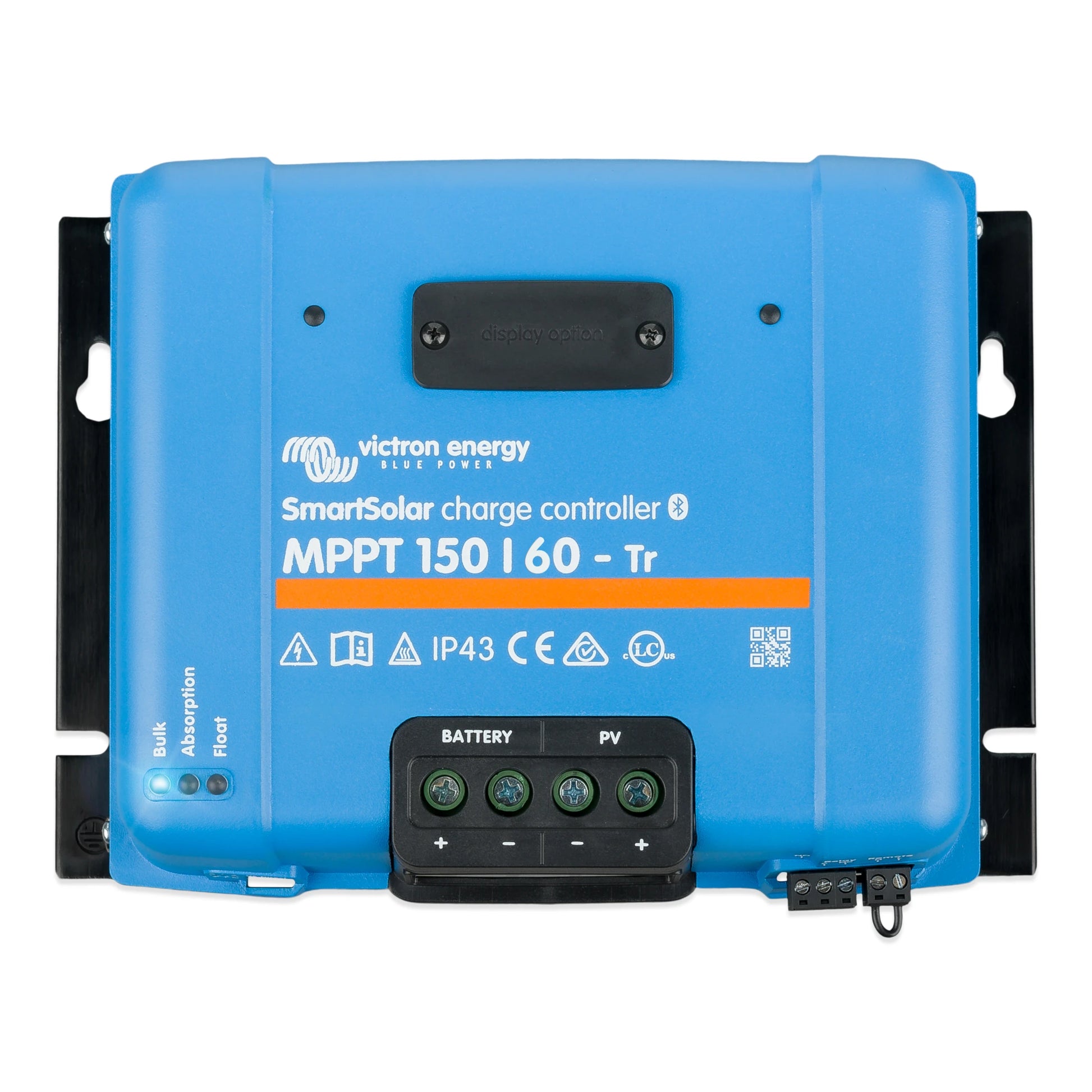

Tr Screw-Terminal Connections
The Tr version uses heavy-duty screw terminals for both the PV input and battery output rather than factory-installed MC4 connectors. The terminals accept flexible, fine-stranded copper conductors up to 35mm² / 2 AWG.
This arrangement is useful when the controller is installed near breakers, combiner equipment or busbars, and it gives the installer flexibility to select cable sizes and termination methods appropriate for the system.
Solar-panel leads normally use MC4-style connectors, while this controller has bare-wire screw terminals. Suitable PV extension cable, disconnecting means and circuit protection may be required between the array and controller.
Battery Cable & Fuse Recommendations
At full output, the controller can supply 60A continuously to the battery bank. Short, properly sized battery cables help reduce voltage drop, heat and charging losses.
| Installation Component | Guidance |
| Maximum Terminal Capacity | 35mm² / 2 AWG flexible copper cable |
| Victron Battery Fuse Range | 70A minimum / 80A maximum |
| Terminal Torque | 2.4Nm |
Victron specifies a 70A to 80A battery fuse for the SmartSolar 150/60. The final fuse and cable size must suit the conductor ampacity, cable length, installation method and applicable electrical requirements. Install the battery fuse close to the positive battery connection.
Flexible Battery Charging
The SmartSolar 150/60-Tr uses a multi-stage adaptive charging algorithm with pre-programmed profiles and user-adjustable settings. It can be configured for compatible LiFePO₄, flooded lead-acid, AGM and gel battery systems.
Battery voltage is automatically detected for 12V, 24V and 48V systems. A 36V battery bank is also supported but must be selected manually. Always confirm the charging parameters recommended by the battery manufacturer before commissioning the system.
A compatible Victron Smart Battery Sense, BMV-712 or SmartShunt can share battery voltage and temperature information with the controller through VE.Smart Networking. This can improve charging accuracy when cable voltage drop or changing battery temperature is a concern.

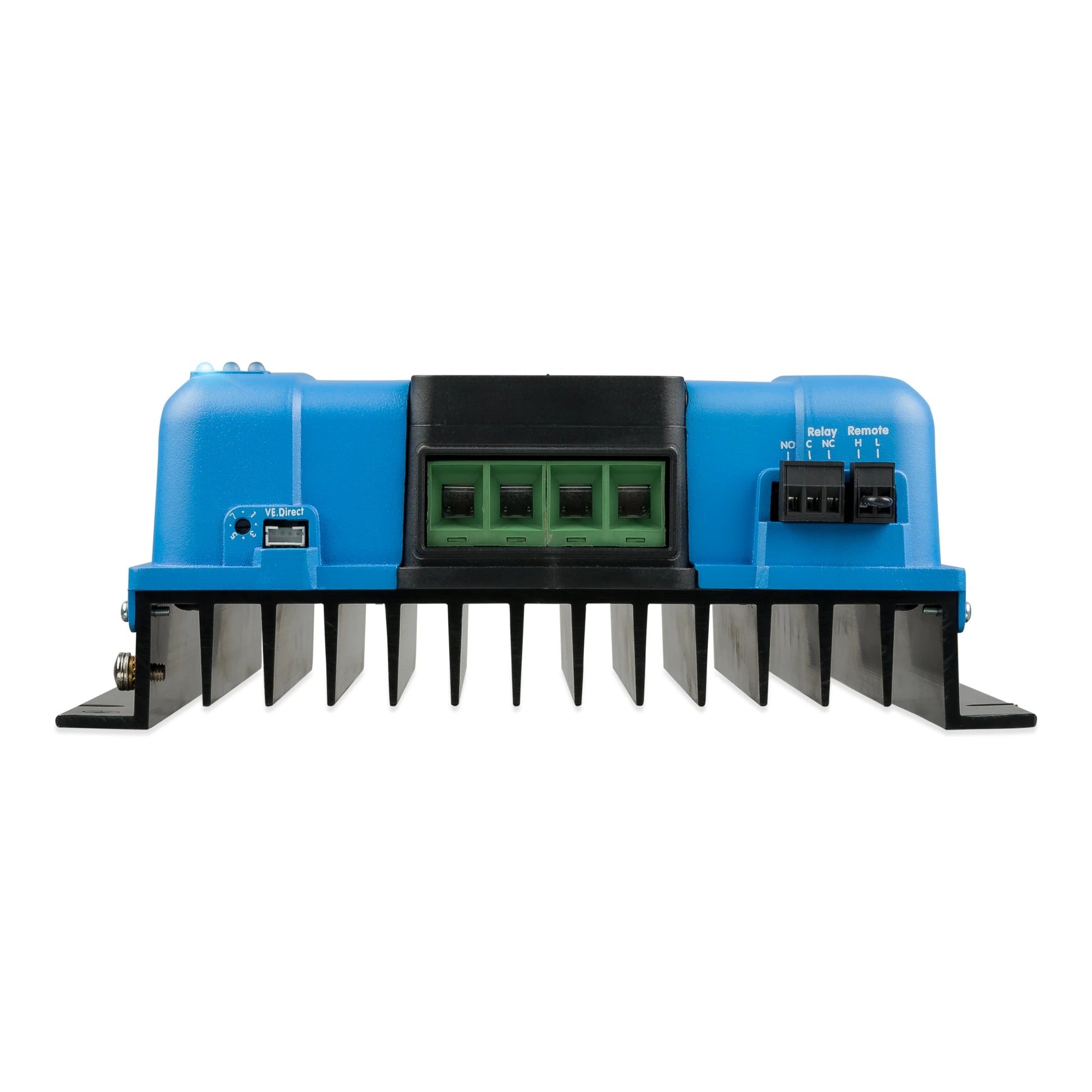

VE.Direct, Remote On/Off & Programmable Relay
The integrated VE.Direct port allows the controller to connect to compatible Victron monitoring equipment such as a Cerbo GX. With an internet-connected GX device, solar production and system status can be monitored remotely through the Victron Remote Monitoring portal.
A two-pole remote on/off input allows external control by compatible equipment or control systems. The built-in programmable relay can be configured through VictronConnect for alarms or other system-control functions.
A VE.Direct cable is required to connect the SmartSolar directly to a Cerbo GX or MPPT Control display. The cable is sold separately and is available in multiple lengths.
Optional Local Display
For at-a-glance information without using a phone, the optional Victron SmartSolar Control display can be installed directly into the front of the controller. The display is sold separately and can be fitted or removed while the controller is operating.
Efficient, Fanless Operation
With up to 98% peak efficiency, the SmartSolar 150/60-Tr converts available solar energy into battery charging power with minimal loss. Natural cooling eliminates fan noise and reduces moving parts.
The controller can provide its full rated output at ambient temperatures up to 40°C. At higher temperatures, output may be reduced automatically to protect the controller.
Built-In Electronic Protection
- PV reverse-polarity protection
- PV reverse-current protection
- Output short-circuit protection
- Over-temperature protection
- Automatic power reduction at high temperatures
- Internal temperature-compensated charging
- Recovery charging for deeply discharged batteries
Built-in controller protection does not replace properly selected external wiring, fuses, disconnects or overcurrent protection. Solar and battery circuits must remain within the controller's published voltage and current limits.
Applications
- Large RV and motorhome solar systems
- Boats and marine battery systems
- Off-grid cabins and tiny homes
- Remote communications and monitoring sites
- Service and security trailers
- Hybrid generator and solar systems
- Backup and emergency battery systems
- 12V, 24V, 36V and 48V battery banks
- Higher-voltage series-connected solar arrays
Product Specifications
| Specification | Value |
|---|---|
| Model | SmartSolar MPPT 150/60-Tr |
| Victron Part Number | SCC115060211 |
| Battery Voltage | 12V / 24V / 48V automatic selection; 36V manual selection |
| Maximum Battery Charge Current | 60A |
| Nominal PV Power — 12V / 24V | 860W / 1720W |
| Nominal PV Power — 36V / 48V | 2580W / 3440W |
| Maximum PV Open-Circuit Voltage | 150V absolute maximum; 145V start-up and operating maximum |
| Maximum PV Short-Circuit Current | 50A |
| Peak Efficiency | 98% |
| Self-Consumption | Less than 35mA at 12V / less than 20mA at 48V |
| Default Absorption Voltage | 14.4V / 28.8V / 43.2V / 57.6V |
| Default Float Voltage | 13.8V / 27.6V / 41.4V / 55.2V |
| Charge Algorithm | Multi-stage adaptive with eight pre-programmed profiles or user-defined settings |
| Communication | Built-in Bluetooth Smart and VE.Direct |
| Remote On/Off | Yes, two-pole terminal |
| Programmable Relay | DPST; 4A up to 240VAC, 4A up to 35VDC or 1A up to 60VDC |
| PV Connections | Screw terminals, up to 35mm² / 2 AWG |
| Battery Connections | Screw terminals, up to 35mm² / 2 AWG |
| Operating Temperature | -30°C to +60°C; full rated output up to 40°C |
| Humidity | 95%, non-condensing |
| Protection Rating | IP43 electronics / IP22 connection area |
| Dimensions | 185 × 250 × 95mm |
| Weight | 3kg |
| Safety Standards | EN/IEC 62109-1, UL 1741 and CSA C22.2 |
| Warranty | 5-Year |
Specifications are believed to be accurate at the time of publication but may change without notice. While we make every effort to keep product information current, Sapphire Energy cannot guarantee all specifications are complete, error-free or up to date. Please refer to the manufacturer's documentation if a particular specification is critical to your application.
Frequently Asked Questions
What does “Tr” mean?
The Tr model uses large screw terminals for the PV and battery connections. Solar panels with MC4-style connectors do not plug directly into the controller; the PV cable must be properly terminated at the controller or routed through suitable circuit protection or combining equipment.
Can I use residential solar panels with the SmartSolar 150/60-Tr?
Yes. The 150V input makes this controller a strong choice for series-connected residential-format solar panels, provided the complete array remains within the controller's voltage and current limits.
The calculated cold-weather open-circuit voltage must remain below the absolute 150V maximum and the 145V start-up and operating limit. The array's total short-circuit current must not exceed 50A. Panel specifications and the minimum expected local temperature must be considered before choosing the final wiring configuration.
Can I connect more than the nominal PV wattage?
Some array oversizing may be possible because the controller limits its charging output to 60A. However, the array must always remain within the controller's 150V absolute maximum open-circuit voltage, 145V start-up and operating limit and 50A maximum short-circuit current.
Oversizing should be evaluated using the actual panel specifications, array configuration, battery voltage and coldest expected site temperature.
Does the SmartSolar 150/60-Tr work with LiFePO₄ batteries?
Yes. It can be configured for compatible LiFePO₄ battery banks using VictronConnect. Select or create a charging profile that follows the battery manufacturer's recommended absorption voltage, float voltage and charging limits.
Any required low-temperature charge protection must be provided by the battery's BMS, a compatible external control system or suitable battery-temperature sensing and control.
Will it automatically detect my battery voltage?
The controller automatically detects 12V, 24V and 48V battery systems when the battery is connected first and the correct installation sequence is followed. A 36V battery system must be selected manually.
Does Bluetooth require an internet connection?
No. Your phone or tablet connects directly to the controller through Bluetooth for local setup, monitoring and history review.
Internet access may be required to download or update VictronConnect, but it is not required for normal local Bluetooth communication.
Can I connect it to a Cerbo GX for remote monitoring?
Yes. Connect the controller's VE.Direct port to a Cerbo GX using a compatible VE.Direct cable. When the Cerbo GX has internet access and is configured with Victron's VRM portal, the controller can be monitored remotely as part of the larger Victron system.
What size battery cable should I use?
Battery cable must be sized for up to 60A of continuous charging current while keeping voltage drop low. The controller accepts flexible, fine-stranded copper cable up to 35mm² / 2 AWG.
The correct conductor size depends on cable length, installation method, insulation temperature rating and applicable electrical requirements. Larger conductors are particularly helpful on 12V systems or longer cable runs.
What size battery fuse should I use?
Victron specifies a 70A minimum and 80A maximum battery fuse for the SmartSolar 150/60. The fuse must also be appropriate for the selected battery cable and should be installed close to the battery positive connection.
Can I install the controller outdoors?
The electronic components are rated IP43 and the connection area is rated IP22. This is not equivalent to a fully weatherproof outdoor enclosure.
Install the controller vertically in a dry, ventilated location protected from direct rain, water spray, condensation and excessive heat. Victron also requires clearance above and below the controller for natural cooling.
What warranty does the SmartSolar MPPT 150/60-Tr include?
The Victron SmartSolar MPPT 150/60-Tr is backed by a 5-year manufacturer's warranty from Victron Energy.
If you have a warranty question or need help troubleshooting, Sapphire Energy will assist throughout the warranty process.
Tell us which solar panels and battery bank you're using, and we'll help confirm array compatibility, review the proposed series and parallel configuration, and recommend suitable wiring and fuse protection before you order.
