Victron Energy

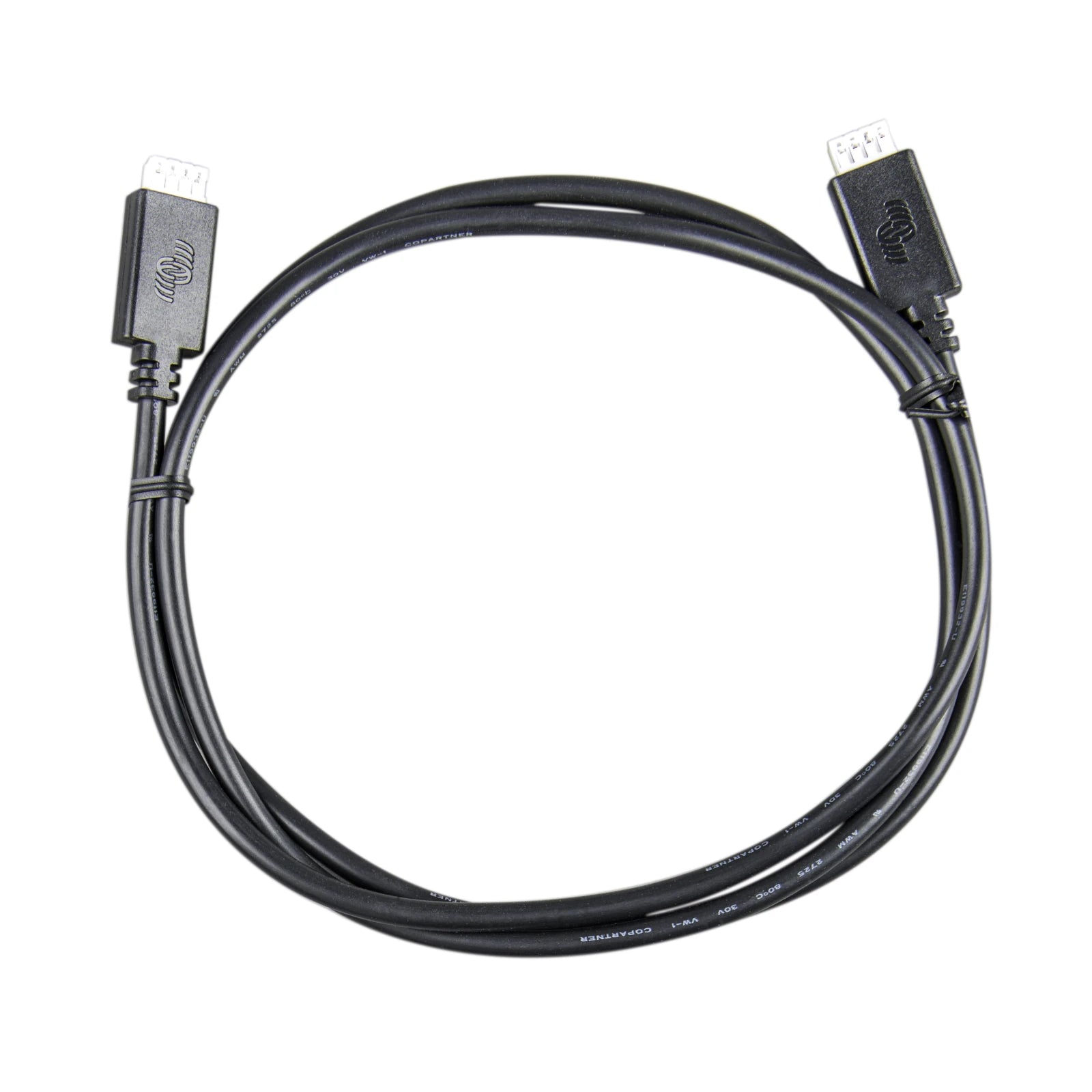

Victron VE.Direct Cable
Victron VE.Direct Cable
Couldn't load pickup availability
Connect Your Victron VE.Direct Equipment
The Victron VE.Direct Cable provides a direct data connection between compatible Victron products. Use it to connect a SmartSolar charge controller, SmartShunt, BMV battery monitor, Phoenix VE.Direct inverter or other VE.Direct device to a Cerbo GX monitoring system.
Choose from six cable lengths ranging from 0.3 metres for closely mounted equipment to 10 metres for larger RV, marine and off-grid installations. Both ends use standard straight VE.Direct connectors.
Why You'll Love It
- Genuine Victron Energy communication cable
- Connects compatible VE.Direct devices directly together
- Ideal for Cerbo GX system monitoring and VRM integration
- Works with VE.Direct-equipped SmartSolar controllers and Phoenix inverters
- Available in six practical lengths from 0.3m to 10m
- Pre-assembled and ready to connect
We can special order any of the listed VE.Direct cable lengths. Contact us for current availability, estimated delivery time or help choosing the correct communication cable for your Victron system.
Available Lengths
| Cable Length | Victron Part Number |
|---|---|
| 0.3m | ASS030530203 |
| 0.9m | ASS030530209 |
| 1.8m | ASS030530218 |
| 3m | ASS030530230 |
| 5m | ASS030530250 |
| 10m | ASS030530310 |
Common Uses
- SmartSolar MPPT to Cerbo GX
- Phoenix VE.Direct inverter to Cerbo GX
- SmartShunt to Cerbo GX
- BMV battery monitor to Cerbo GX
- Compatible BlueSolar MPPT to Cerbo GX
- Direct communication between supported VE.Direct equipment
This cable is only for equipment equipped with a VE.Direct port. It is not an Ethernet cable and cannot be used with VE.Bus, VE.Can, USB or standard RJ45 connections. Check the labels on both devices or contact us if you are unsure which cable you need.
Product Specifications
| Specification | Details |
|---|---|
| Connection Type | VE.Direct to VE.Direct |
| Connector Style | Straight connector at both ends |
| Available Lengths | 0.3m, 0.9m, 1.8m, 3m, 5m and 10m |
| Primary Function | Data communication between compatible Victron VE.Direct equipment |
| Installation | Pre-assembled; no configuration required |
| Warranty | 5-Year Victron Limited Warranty |
Specifications are based on the manufacturer's published data and are believed to be accurate at the time of publication. Product specifications and compatibility may change without notice. Always verify that both devices have compatible VE.Direct ports before ordering. If you have any questions, contact us and we'll be happy to help.
Frequently Asked Questions
What does this cable do?
It carries communication data between compatible Victron products equipped with VE.Direct ports. A common application is connecting a SmartSolar controller, SmartShunt or Phoenix VE.Direct inverter to a Cerbo GX for centralized monitoring.
Will it connect a SmartSolar controller to a Cerbo GX?
Yes, provided the SmartSolar controller has a VE.Direct port. Connect one end to the controller and the other to an available VE.Direct port on the Cerbo GX.
Some larger SmartSolar models may also have VE.Can connectivity, so check the controller's available ports when planning a larger system.
Will it work with a Phoenix inverter?
Yes, it works with Phoenix inverters equipped with a VE.Direct port, including compatible Phoenix VE.Direct models. It does not work with Phoenix products that use a different communication interface.
Do I need one cable for each device?
Yes. Each SmartSolar controller, SmartShunt, Phoenix inverter or other VE.Direct device requires its own communication connection to the Cerbo GX.
For example, a system with two SmartSolar controllers and one SmartShunt would normally require three VE.Direct cables.
Does Bluetooth replace the VE.Direct cable?
No. Bluetooth provides nearby access through the VictronConnect app, while a wired VE.Direct connection allows compatible equipment to communicate continuously with a Cerbo GX and appear within the GX and VRM monitoring system.
Will it work with VE.Bus or VE.Can equipment?
No. VE.Direct, VE.Bus and VE.Can are different communication interfaces. MultiPlus and Quattro inverter/chargers normally use VE.Bus, while VE.Can equipment uses an RJ45-based CAN connection with the appropriate network termination.
Check the port labels on your equipment before ordering. If you are unsure, contact us with the Victron model numbers and we can help identify the required cables.
Which cable length should I choose?
Choose the shortest length that allows a clean route without pulling tightly on the connectors. The 0.3m and 0.9m versions are useful for equipment mounted together on one panel, while the longer options suit larger RV, marine and off-grid installations.
Allow enough extra length for routing, bends and future equipment servicing.
Can I use a standard network or telephone cable instead?
No. VE.Direct uses its own connector and cable configuration. Standard Ethernet, telephone and USB cables are not direct substitutes for this product.
Can you special order an out-of-stock length?
Yes. If your preferred length is unavailable, contact us and we can confirm pricing and estimated delivery time for a special order.
What warranty does this product include?
Victron VE.Direct cables are covered by Victron Energy's 5-year limited warranty. Contact Sapphire Energy if you require troubleshooting or warranty assistance.
Send us the model numbers for your Cerbo GX, solar controllers, inverter, battery monitor and other equipment. We'll help identify the cables and accessories required to connect everything correctly.
