Stäubli MC4-Evo 2 Branch Connector Set
Stäubli MC4-Evo 2 Branch Connector Set
Couldn't load pickup availability

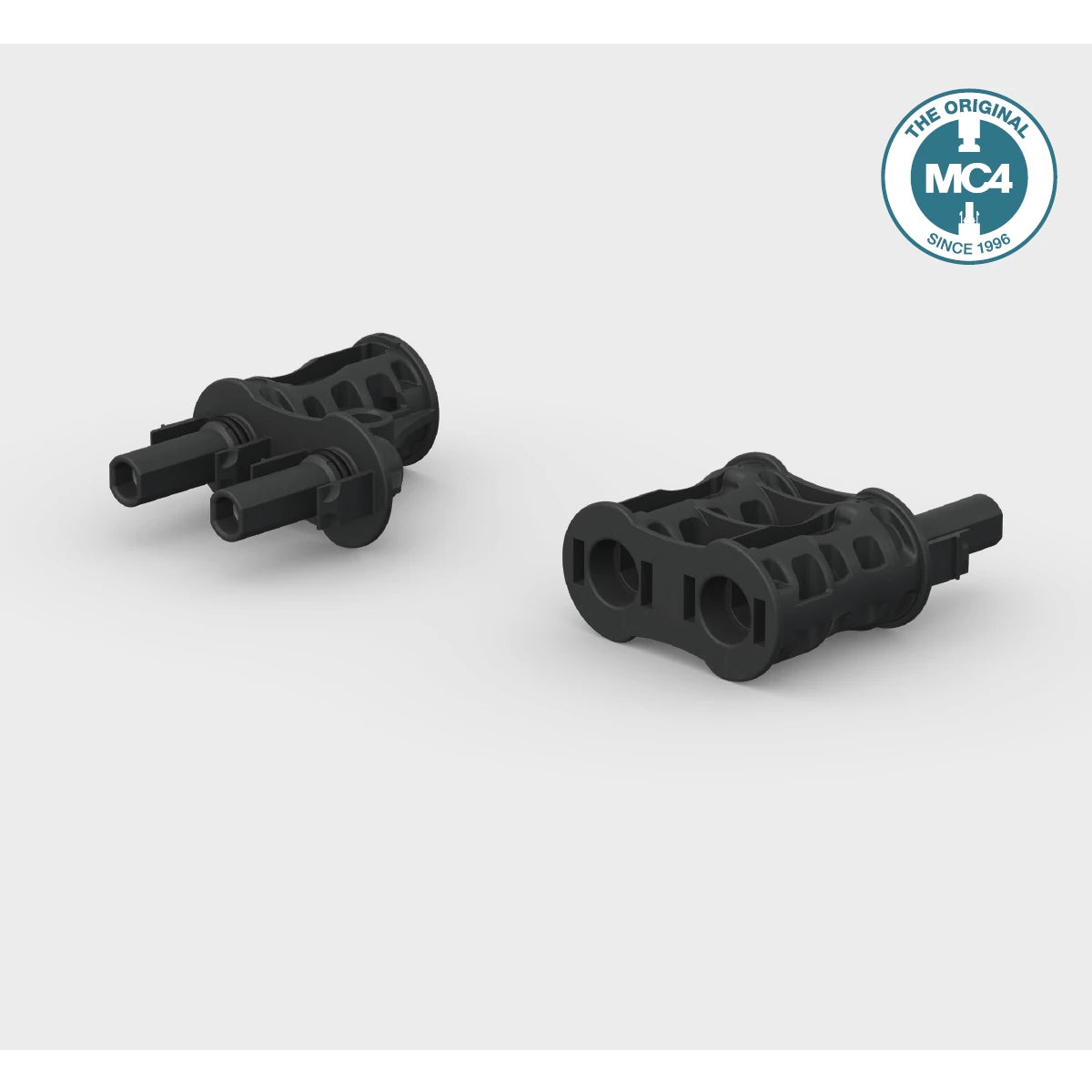

Stäubli MC4-Evo 2 Branch Connectors
Build reliable parallel solar connections using genuine Stäubli MC4-Evo 2 branch connectors. This matched set includes one of each connector for combining PV circuits in systems up to 1500V DC.
Featuring Stäubli’s proven MULTILAM contact technology, IP65 / IP68 environmental protection, and internationally recognized certifications, these connectors are a premium alternative to generic MC4-style Y-connectors.
Stäubli (Staubli) developed the original MC4 connector platform used throughout the solar industry. When long-term reliability matters, genuine Stäubli connectors remain the benchmark.
Why You'll Love It
- Genuine Stäubli MC4-Evo 2 components
- Easy and safe connector system trusted across the solar industry
- Rated for photovoltaic systems up to 1500V DC
- 60A (IEC) / 95A (UL) current rating
- MULTILAM low-resistance contact system
- IP65 / IP68 environmental protection
Specifications

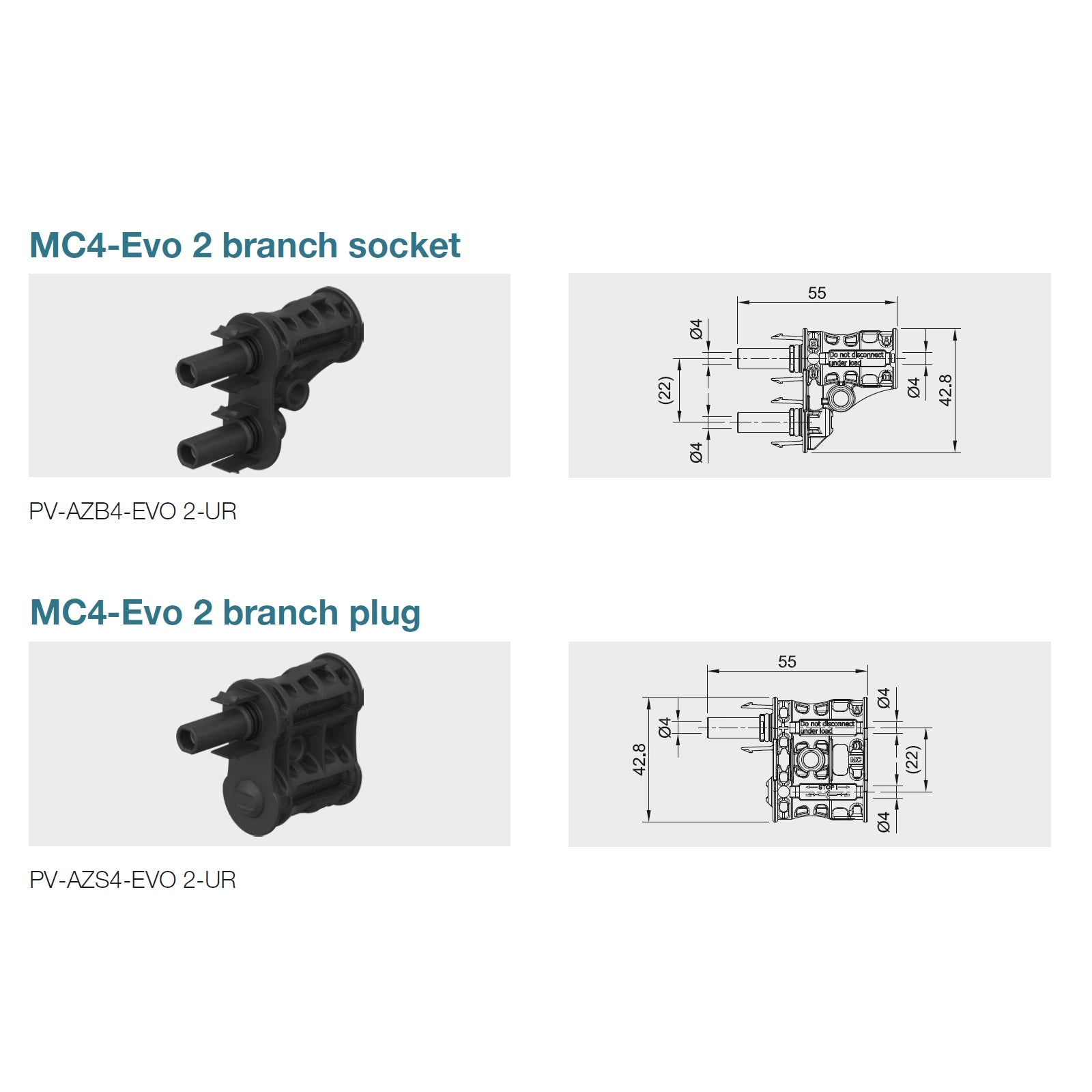

| Model | PV-AZS4-EVO 2-UR + PV-AZB4-EVO 2-UR |
|---|---|
| Included | 1 × Branch Plug (PV-AZS4-EVO 2-UR) 1 × Branch Socket (PV-AZB4-EVO 2-UR) |
| Connector Family | MC4-Evo 2 |
| Compatibility | Stäubli MC4 and MC4-Evo Product Family |
| Rated Voltage | 1500V DC |
| Rated Current | 60A (IEC) / 95A (UL) |
| Rated Impulse Voltage | 16 kV |
| Contact Resistance | < 0.5 mΩ |
| Safety Class | Class II |
| Contact Technology | MULTILAM |
| Contact Material | Tin-Plated Copper |
| Insulation Material | PA |
| Locking System | Locking Type |
| Flammability Rating | UL94-V0 |
| Ingress Protection (Mated) | IP65 / IP68 (1 m, 168 h) |
| Operating Temperature | -40°C to +85°C (IEC) -40°C to +90°C (UL) |
| UV Resistance | ISO 4892-2 / ISO 4892-3 |
| Salt Mist Resistance | IEC 60068-2-52 Severity 6 |
| TÜV Certification | IEC 62852:2014 + Amd.1:2020 |
| UL Listing | UL 6703 (File E343181) |
| CSA Certification | CSA C22.2 No. 182.5 |
Complete your installation with genuine Stäubli MC4 connectors and quality PV cable.
Frequently Asked
What is included with this set?
One PV-AZS4-EVO 2-UR branch plug and one PV-AZB4-EVO 2-UR branch socket.
That is to say you get both splitters, so you have a Male-Male-Female (MMF) & Female-Female-Male (FFM) connector. This will let you connect 2 panels (or 2 strings) together in parallel.
Be sure to get the proper matching solar cables to run to your controller/inverter.
Are these genuine Stäubli connectors?
Yes. These are genuine Stäubli MC4-Evo 2 components, not generic MC4-compatible branch connectors.
That means you are getting the safest, and best quality, components available.
Can these be used in 1500V systems?
Yes. MC4-Evo 2 branch connectors are certified for photovoltaic systems up to 1500V DC when installed according to manufacturer specifications.
Are they compatible with standard MC4 connectors?
They are compatible with the Stäubli MC4 and MC4-Evo connector families. For best performance and certification compliance, genuine Stäubli mating connectors are recommended.
Generic and other branded connectors will generally fit, but it is highly recommended to stick with matching components to guarantee the highest quality & performance.
