10 Awg Solar Panel PV Extension Cables w/ MC4

10 Awg Solar Panel PV Extension Cables w/ MC4

$56.00 CAD
$56.00 CAD $56.00 CAD
Sale Sold out
Length
MC4 Type

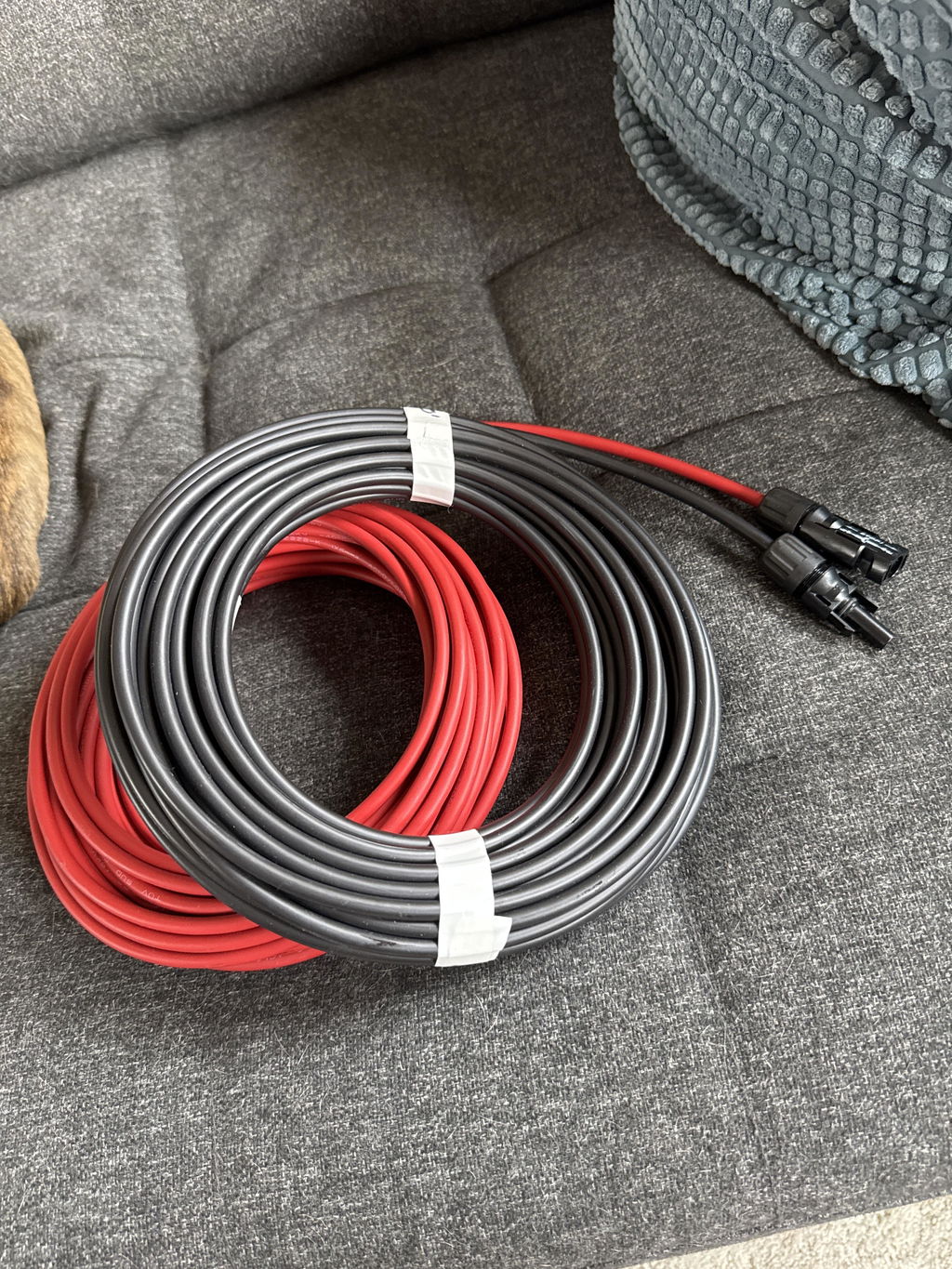

10 AWG Solar Panel PV Extension Cables (w/ MC4)

Built for rugged performance and plug-and-play ease, our 10 AWG solar PV extension cables deliver clean, reliable power from your panels to your charge controller. Designed for sun, vibration, and harsh off-grid environments, they help keep your system efficient and safe.

Every set includes Red AND Black cables, both at the full, specified length. Every cable has a MC4 connector at one end. They are installed to connect directly to your solar panels, and extend the wiring to your solar controller.

Prefer Cable by the Foot?

What’s Included

  • Two (2) cables — one Red and one Black (each cable is full length)
  • MC4 connector pre-installed on each cable end for plug-and-play solar panel connections

Suggested Uses

  • Extending panel runs in RVs, vans, and skoolie solar builds
  • Connecting rooftop arrays to charge controllers in cabins or tiny homes
  • Marine or remote installations needing rugged, UV-resistant cabling
  • Adding length to existing PV systems without sacrificing performance

Other Uses?

These cables are high quality, tinned copper, and also work great for things like diesel heaters, lighting panels, fridges, DC-DC Converters, etc. Order extra length and keep it handy for other projects!

Specifications

Conductor material Tinned copper
Wire size 6.0 mm² (10 AWG)
Insulation & jacket XLPE (low-smoke, halogen-free; UV & outdoor rated)
Rated voltage (DC) 1.8 kV DC
Temperature range −40 °C to +90 °C
Minimum bend radius 4 × cable outer diameter (OD)
Environmental UV / Sun resistant (outdoor rated)
Standards & markings TÜV 2PfG 1169 (08.2007)
IEC 62930
IEC 131 / H1Z2Z2-K
CE
Length Included 2x Selected (1x Red, 1x Black)

FREE CRIMPING SERVICE

Want us to crimp another connector on for you?
Add the connector(s) to your cart and leave a note at checkout (or email us with your instructions). We’ll crimp them on no charge so it shows up ready to install.
Tip: If you’re not sure which connector you need, tell us what you’re connecting to (panel/controller/device + any existing cable ends) and we’ll help.

You Choose The Connector Type

Choose between value and premium options for clean, reliable terminations:

System Design Tip:

For best practice on high power systems, use matching high quality connectors on both solar panels and cables.
Purchase extra matching connectors to replace the ones on your solar panel and guarantee a perfectly mated connection for years of trouble free service.
