Dual MIDI Fuse Holder 80A
Dual MIDI Fuse Holder 80A
Couldn't load pickup availability

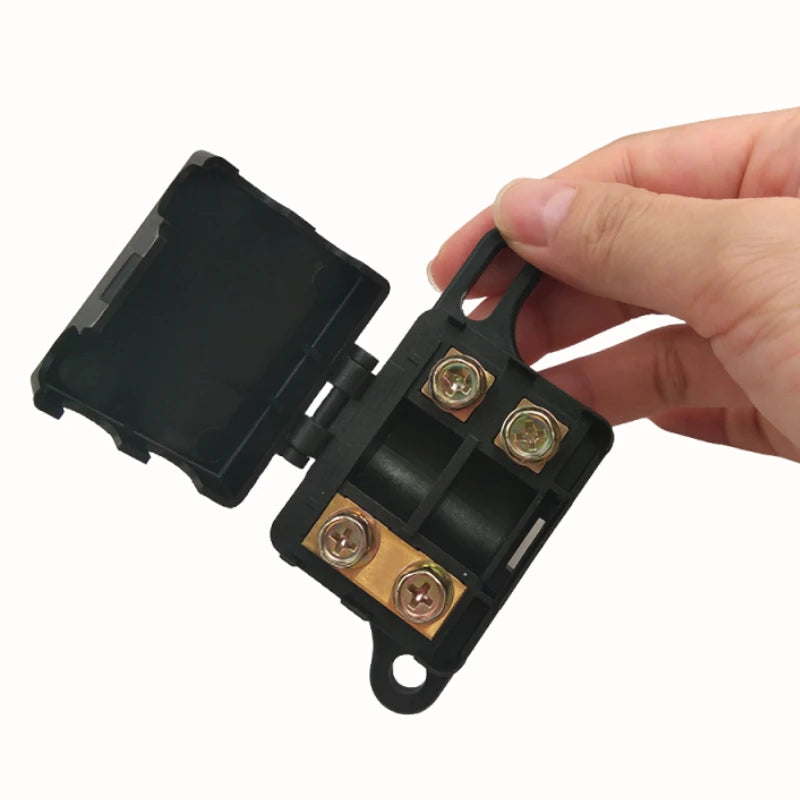

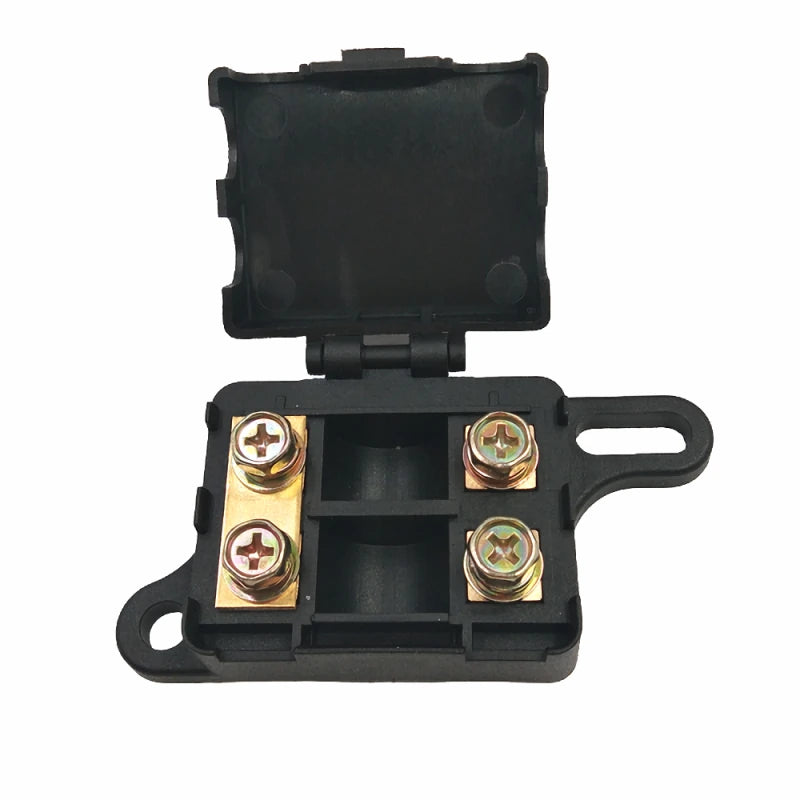

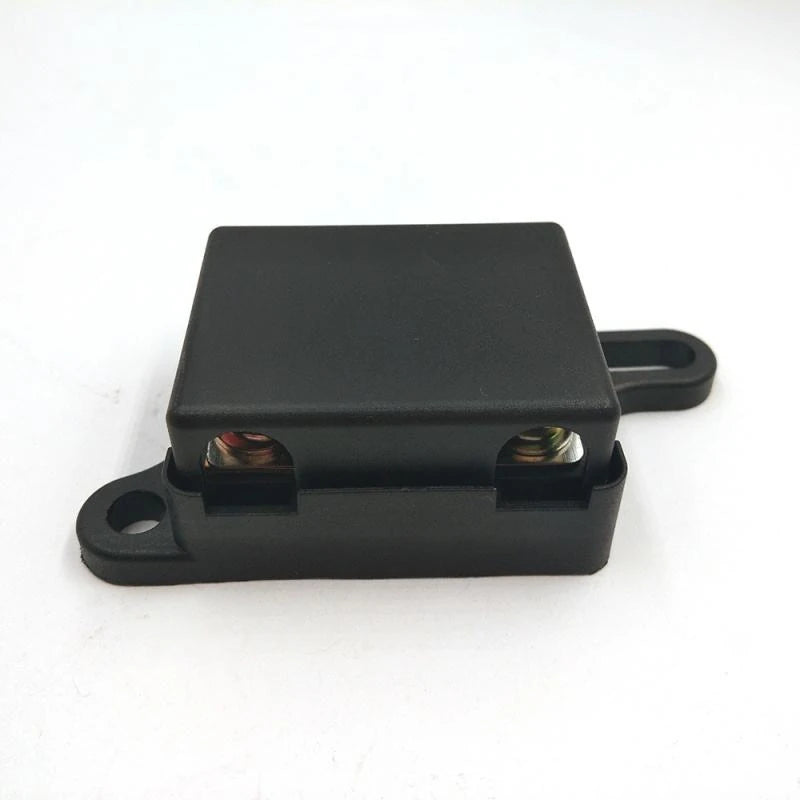

2× MIDI Fuse Holder (Dual Circuit)
Build cleaner, safer circuits in tight spaces. This dual-slot MIDI/AMI holder lets you protect two independent feeds in one compact footprint, cutting clutter and mounting points while keeping your layout serviceable and professional.
Pair with 30–80A MIDI fuses (max 80A per slot) for right-sized protection across DC loads like inverters, DC house panels, chargers, or accessories — all while maintaining an easy-to-read, labeled layout under an included cover.
See also
Why you’ll love it
| Dual-slot convenience — mount two MIDI/AMI fuses in one compact holder for tidy, symmetrical layouts. | ||
| Compact footprint — saves space in vans, RVs, marine, and tight off-grid builds. | ||
| Low-resistance path — tinned copper busbar with an included protective cover. | ||
| Right-sized protection — accepts 30–80A MIDI fuses (80A max per slot). | ||
| Easy mounting — two built-in screw holes let you secure the holder quickly and keep wiring serviceable. |
Specifications
| Fuse Type | MIDI / AMI |
| Positions | 2 (dual fuse slots) |
| Recommended Fuse Range | 30–80A per slot |
| Maximum Fuse Size | 80A per slot |
| System Voltage | Up to 72V DC |
| Conductors | Tinned copper busbar |
| Base Material | Glass-filled nylon |
| Cover | Included |
| Mounting | Flat-surface, 2-hole pattern |
Applications
- Solar & renewable energy systems — distribute power from charge controllers or battery banks.
- RVs, van builds, and campers — compact protection for living space and accessories.
- Marine & boating — ideal for trolling motors, depth sounders, and onboard electronics.
- Golf carts & utility vehicles — protect motors, chargers, and accessories.
- Off-grid cabins & tiny homes — simple dual-feed distribution for inverters, lights, or pumps.
- Dual battery feeds or parallel charge inputs with individual protection.
Frequently Asked Questions
It accepts standard MIDI/AMI fuses in the 30–80A range, with a maximum of 80A per slot.
Yes — a protective cover is included to help keep terminals shielded and the install looking clean.
Yes — mount multiple holders side-by-side to add protected branches while keeping each circuit individually fused.
The holder is suitable for systems up to 72V DC.
Step up to our larger distribution block: the 4 Fuse Holder. It gives you four protected MIDI slots plus a MEGA main fuse in one clean assembly.
