MIDI Fuse Holder
MIDI Fuse Holder
Couldn't load pickup availability

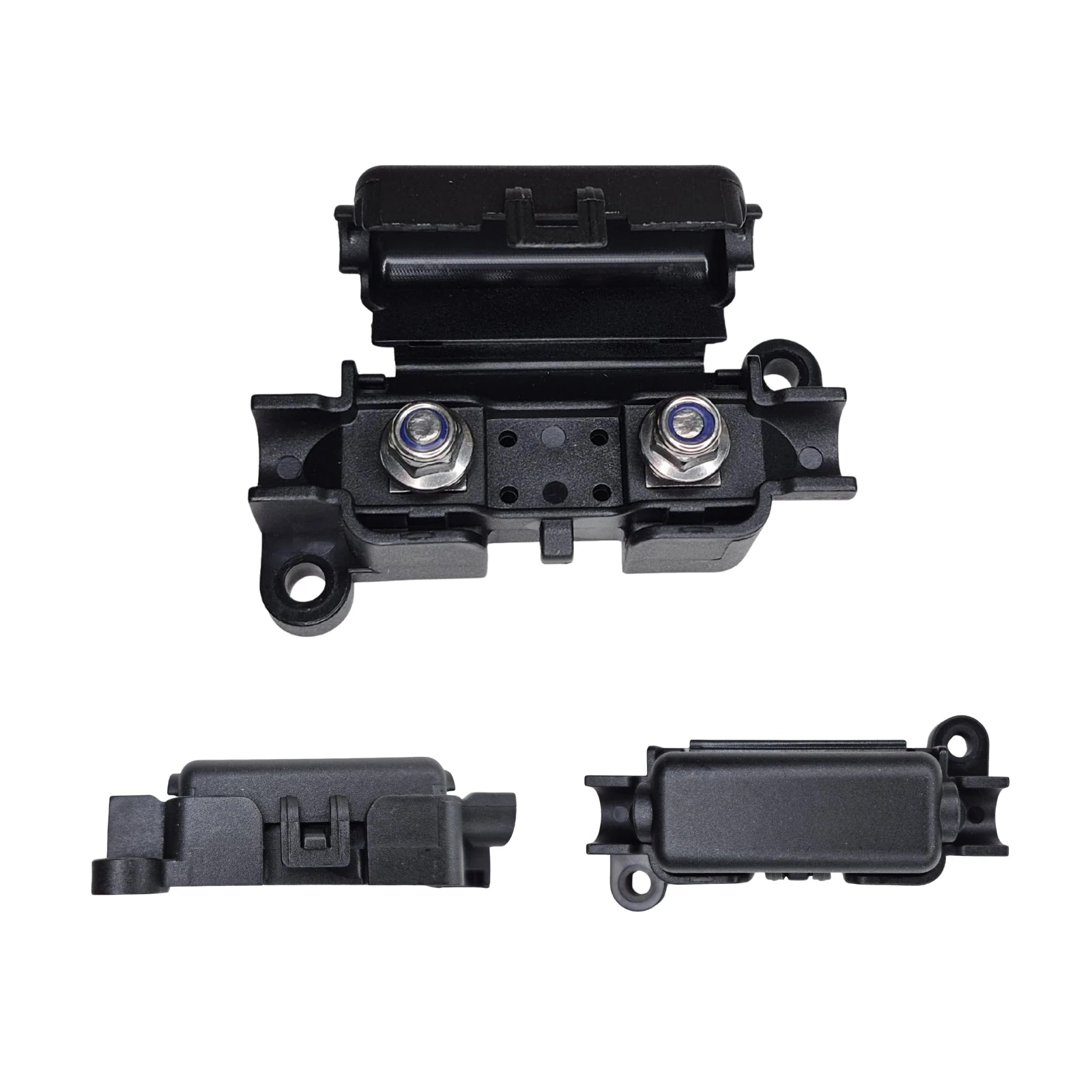

MIDI Fuse Holder (Single)
A clean, compact way to protect a single DC branch. This MIDI/AMI holder gives you a professional, serviceable mount point without eating up space.
Rated up to 200A and suitable for systems up to 72V DC. Pair with industry-standard MIDI/AMI fuses sized to your circuit and device requirements.
See also
Why you’ll love it
| Compact footprint — perfect for vans, RVs, carts, and tight off-grid builds. Mount where it's easy. | ||
| Easy mounting — two built-in screw holes let you secure the holder quickly and keep wiring serviceable. | ||
| Easy to use — straightforward layout for quick fuse swaps and simple service. | ||
| Low cost — very affordable protection without compromising safety. | ||
| Versatile current options — supports a wide range of MIDI/AMI fuse ratings so you can have excellent protection. |
Specifications
| Fuse Type | MIDI / AMI |
| Positions | 1 (single fuse slot) |
| Maximum Fuse Rating | Up to 200A |
| System Voltage | Up to 72V DC |
| Conductor | Tinned copper |
| Base Material | Glass-filled nylon |
| Cover | Included |
| Mounting | Flat-surface, 2-hole pattern |
Applications
- Solar & renewable energy systems — route from charge controller or battery bank to any device.
- RVs, van builds, and campers — compact protection for living space and accessories. Easy to mount in tight spaces.
- Marine & boating — trolling motors, depth sounders, and onboard electronics.
- Golf carts & utility vehicles — protect motors, chargers, and accessories.
- Off-grid cabins & tiny homes — simple protection for inverters, furnaces, diesel heaters, and other mid range loads.
Frequently Asked Questions
It accepts industry-standard MIDI/AMI fuses. The holder is rated up to 200A; choose the fuse rating appropriate for your circuit and device.
Yes — a protective cover is included to help shield terminals and keep the install clean.
Suitable for systems up to 72V DC.
No — the holder is not waterproof. It is splash resistant, but should be installed indoors or inside an enclosure to protect it from water exposure.
Yes — this holder can protect inverter cables, provided the inverter’s current rating is within the holder’s 200A maximum. For smaller and mid-sized inverters this is a clean, compact option. However, if your inverter requires fuses above 100A, an ANL fuse may be a better choice due to its higher current handling and broader rating range. See our ANL Fuse Holder Bundle Kit for heavy-duty inverter protection.
For higher-current applications or more robust branch protection, consider ANL fuses or MEGA fuses. ANL fuses are ideal for heavy loads and are commonly available in the 100A–400A range. For a complete fuse + holder solution, see our ANL Fuse Holder Bundle Kit.
Yes — scale up with our 2× MIDI Fuse Holder or the 4 Fuse Holder.
