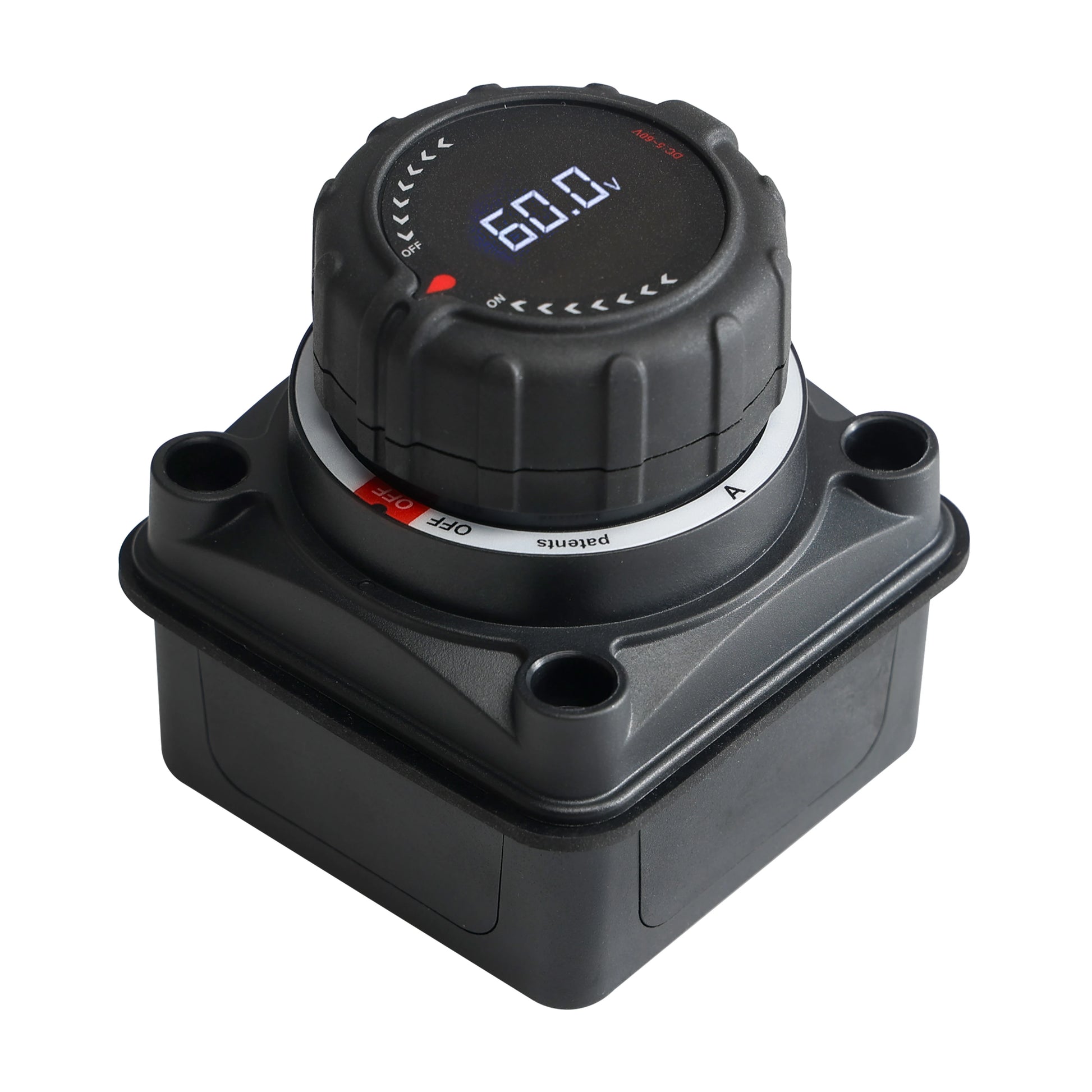

60V / 300A Heavy-Duty Disconnect Switch with Voltage Display
Ideal for Lead-Acid and LiFePO₄ Battery Banks
Ensure safety, durability, and control with this rugged rotary disconnect switch, featuring:
- Wide voltage compatibility: 5–60 V DC, perfect for both 12 V/24 V systems and modern LiFePO₄ setups
- High current tolerance: 250 A continuous, 300 A for 30 minutes
-
Silver-plated copper terminals for superior conductivity and corrosion resistance
-

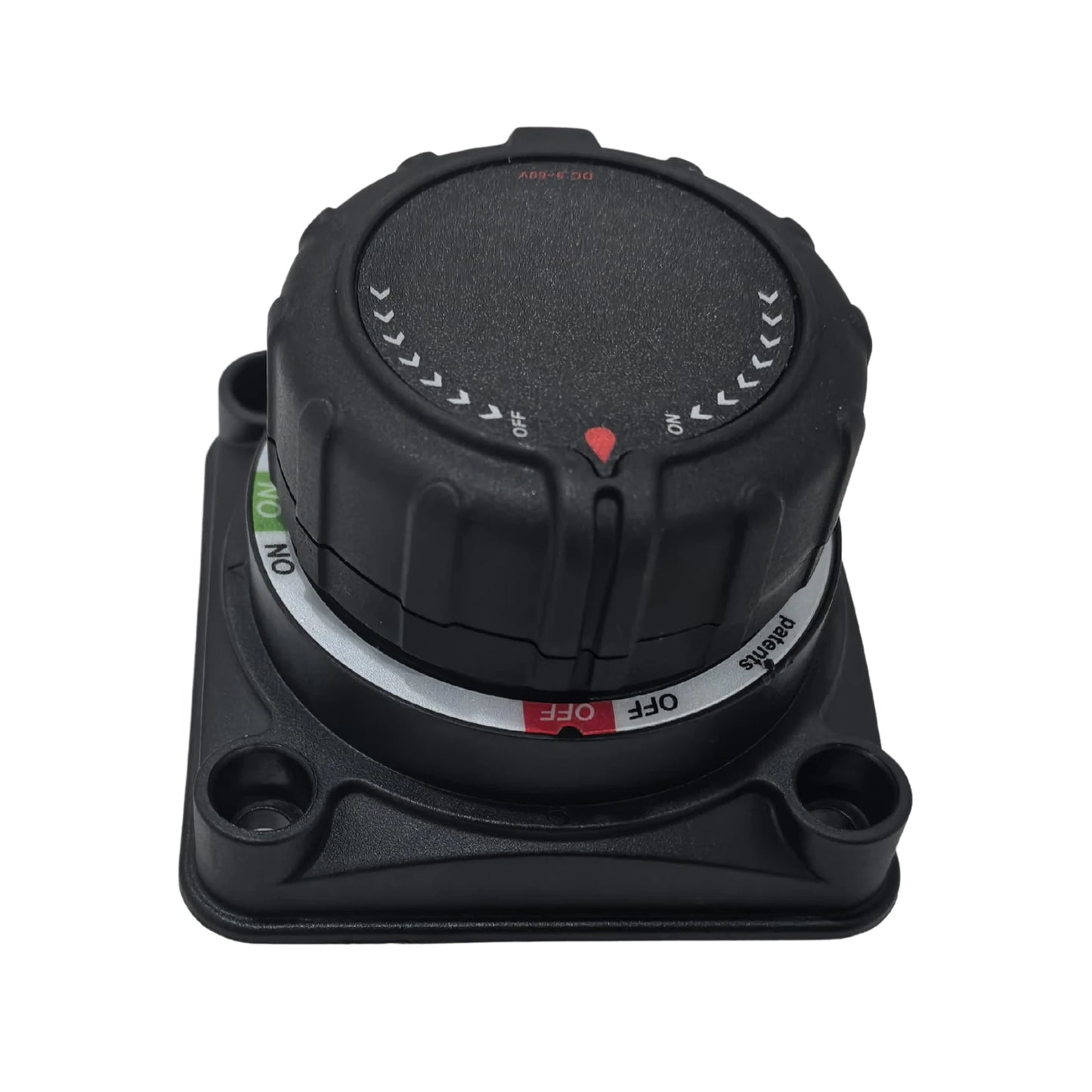

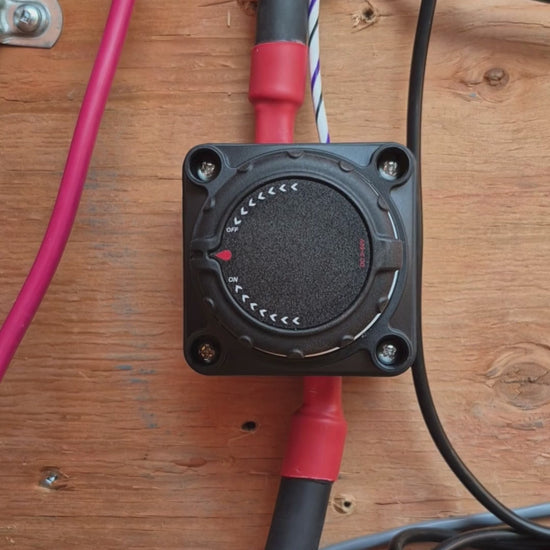

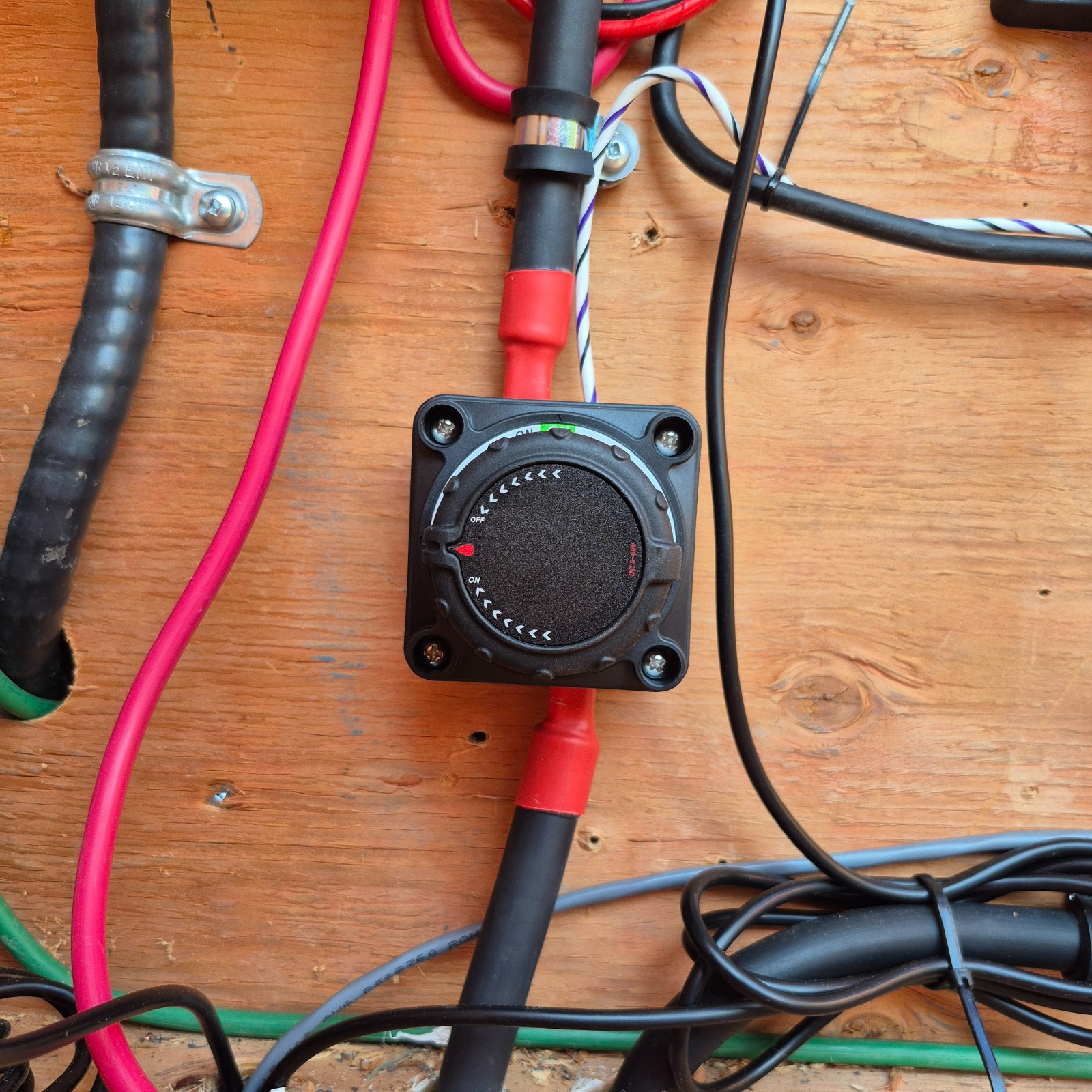

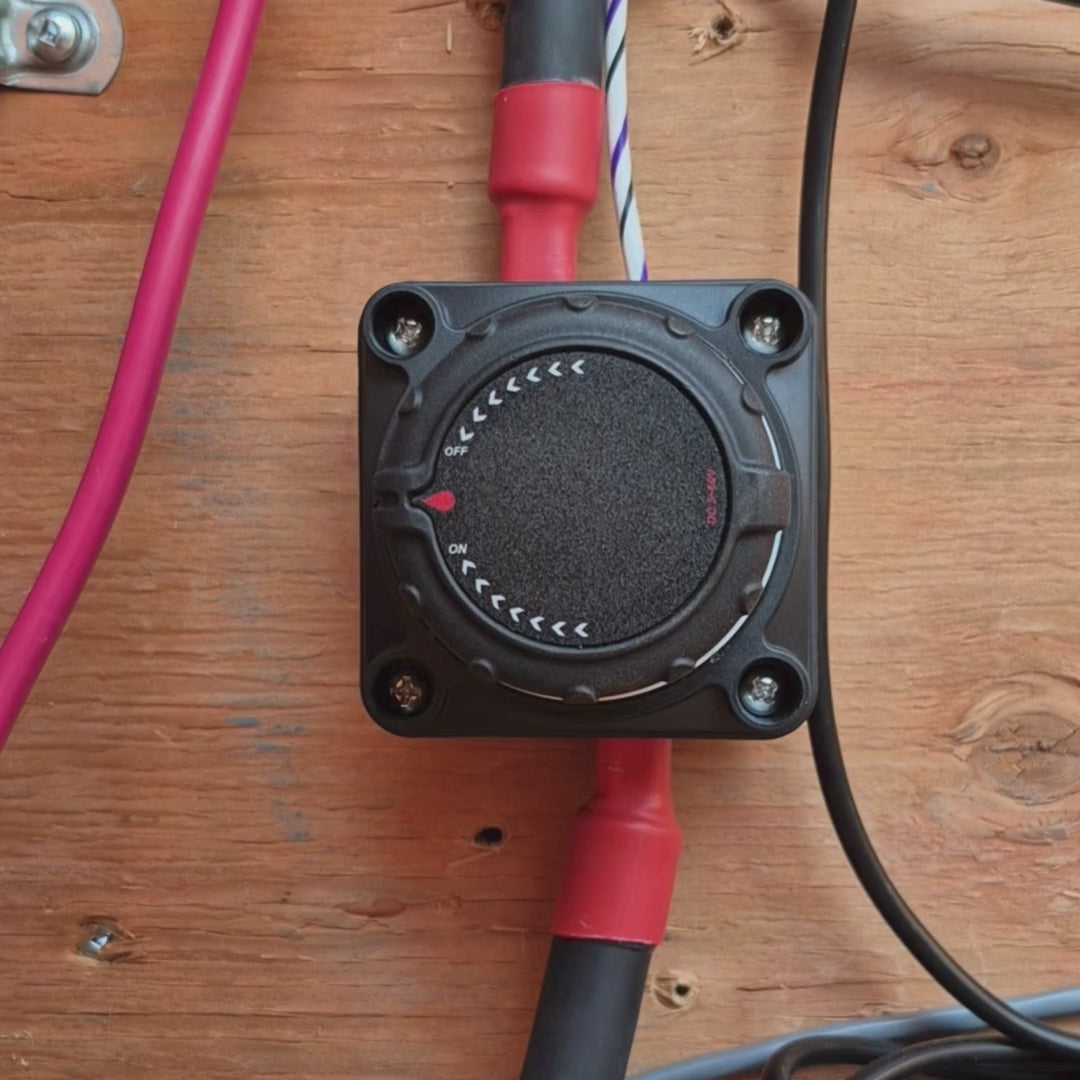

Easy ON/OFF rotary control for simple and reliable power isolation
-

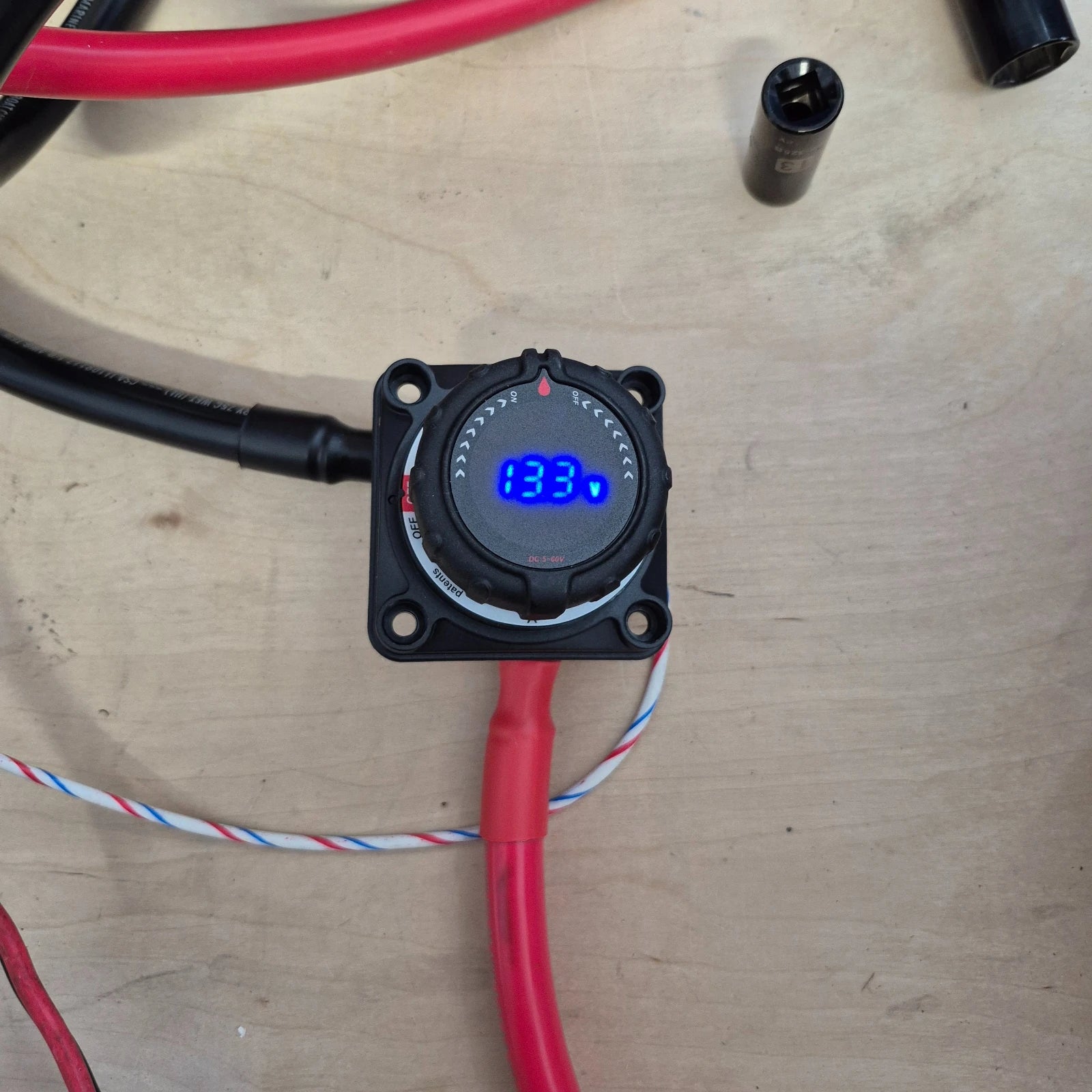

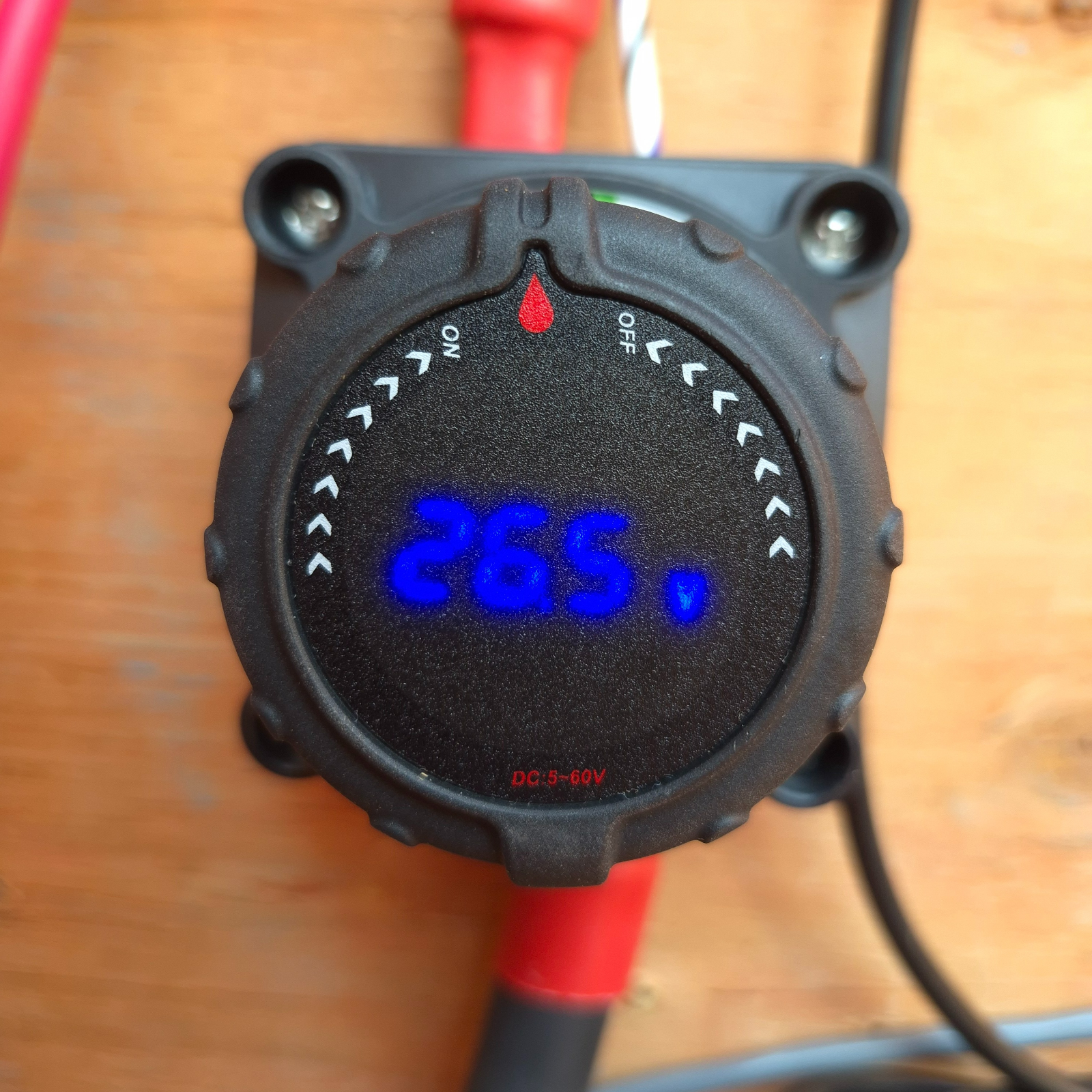

Real-time digital voltage display for monitoring battery state at a glance

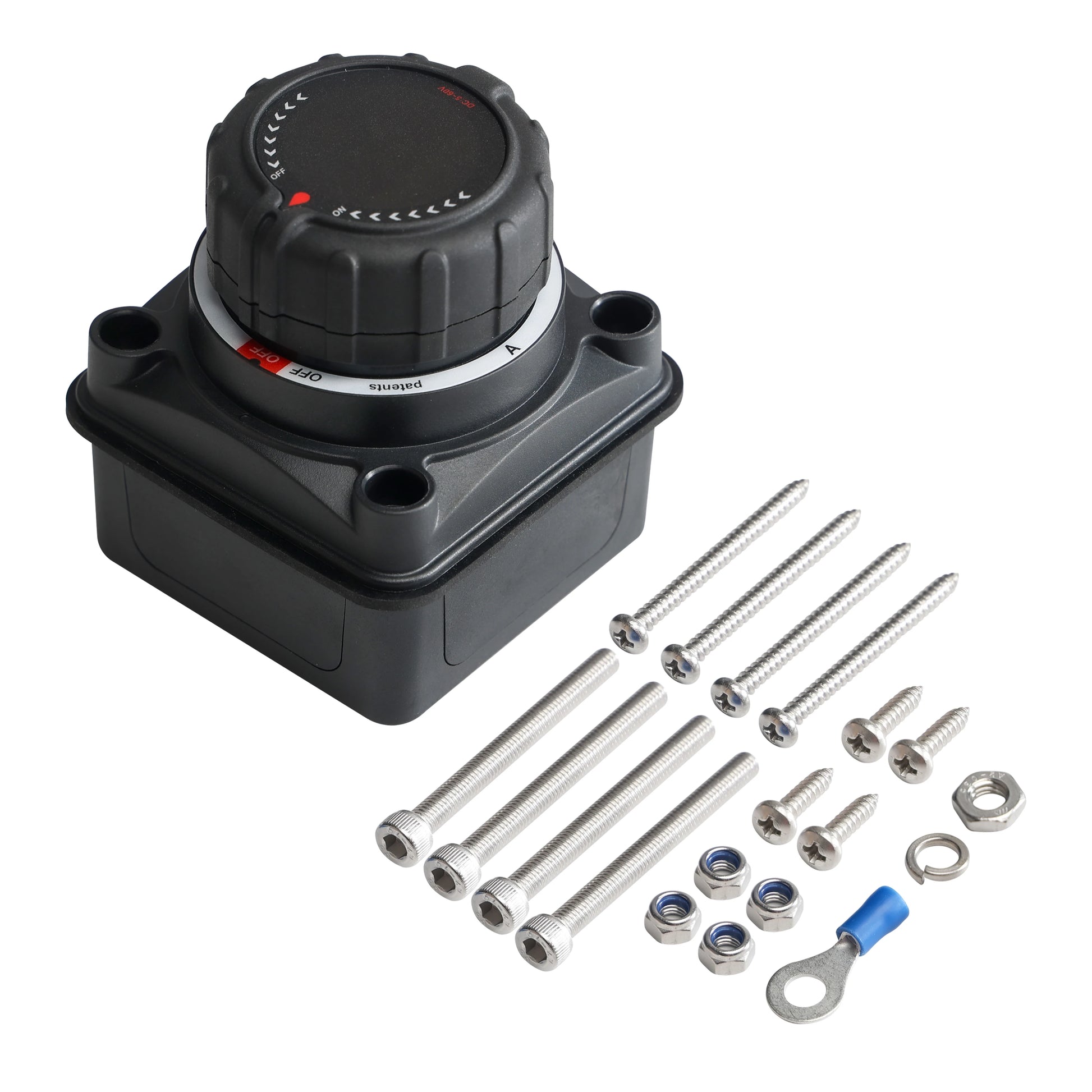

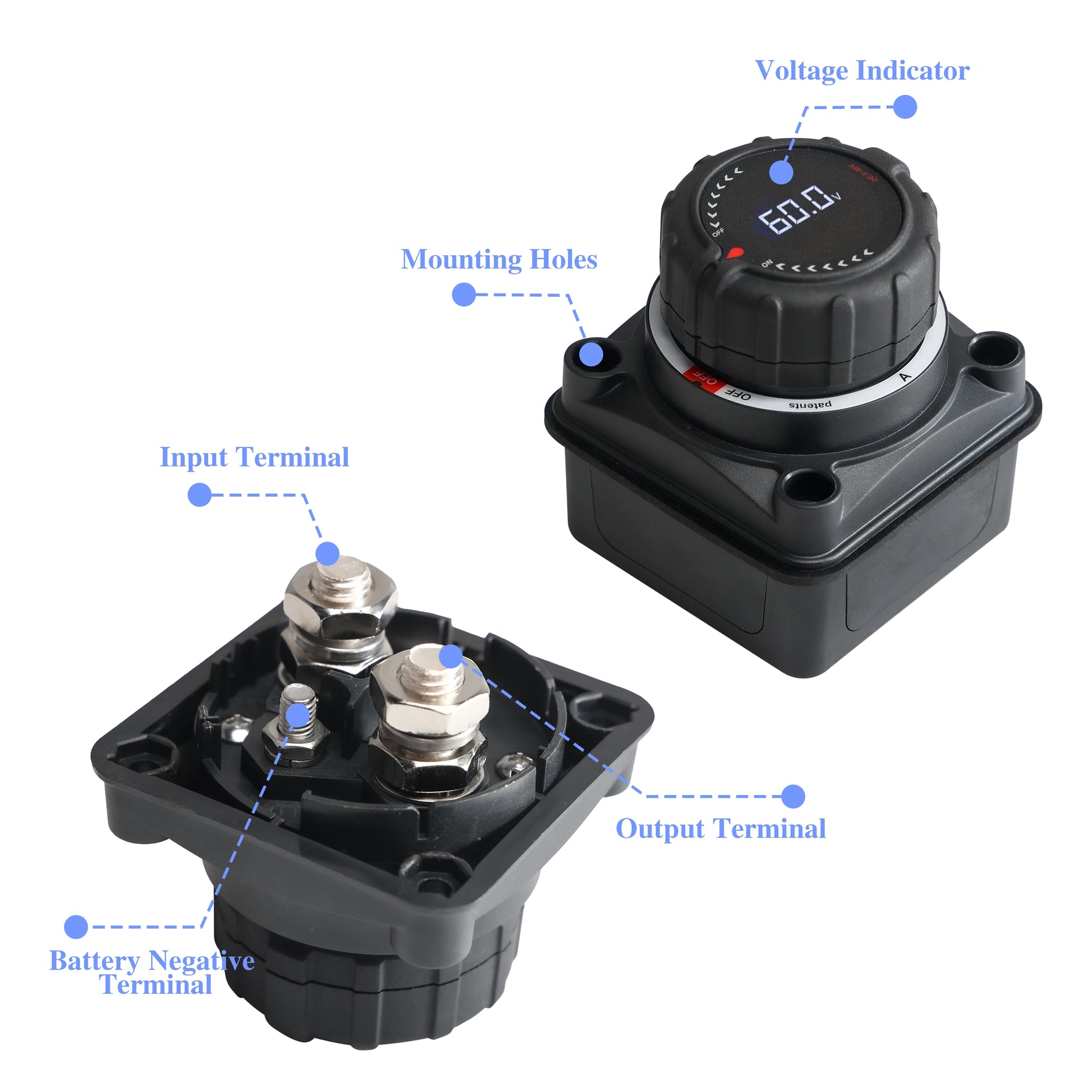

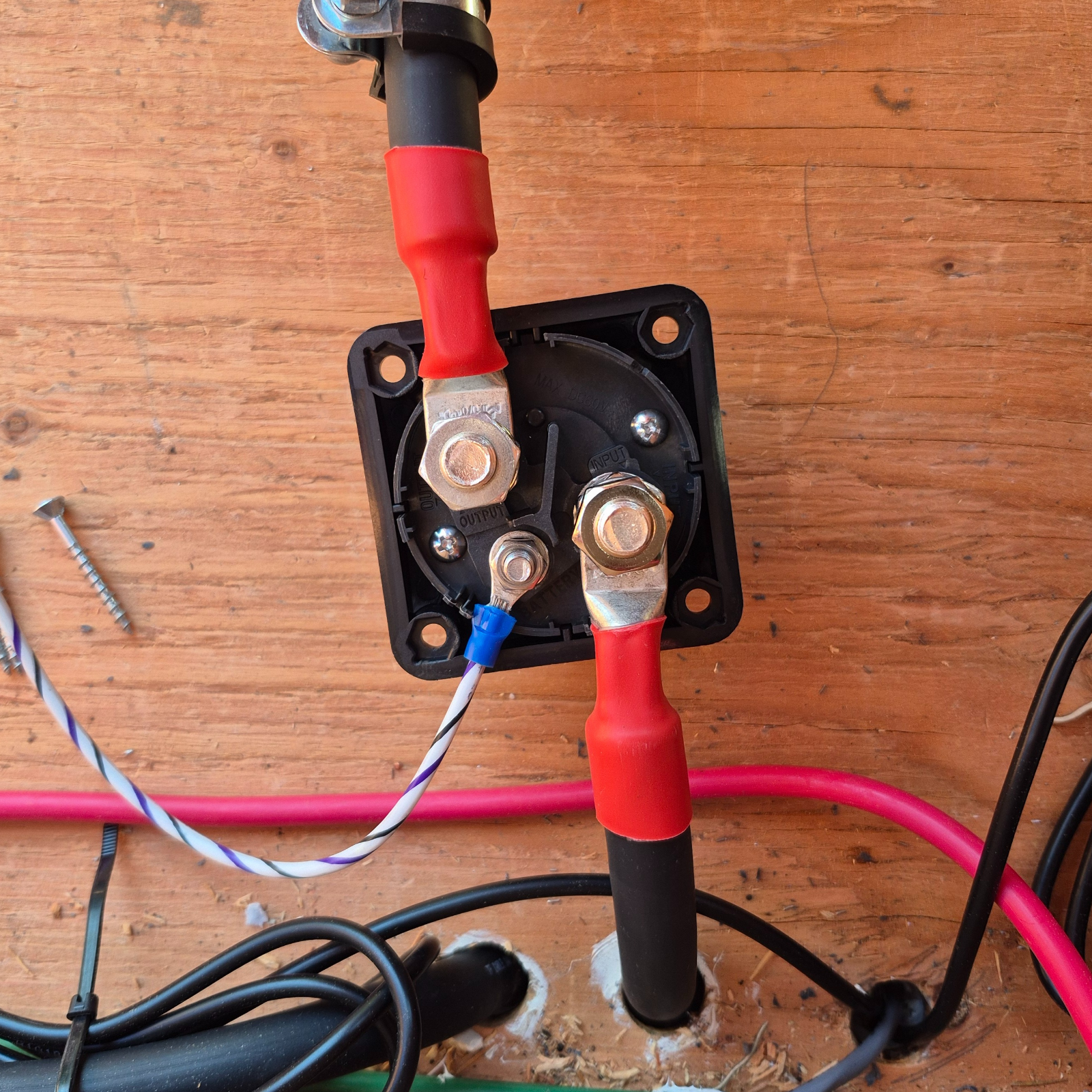

- Heavy-duty construction with bolt terminals (2×M10, 1×M6) for secure, vibration-resistant wiring—ideal in marine, automotive, and off-grid applications

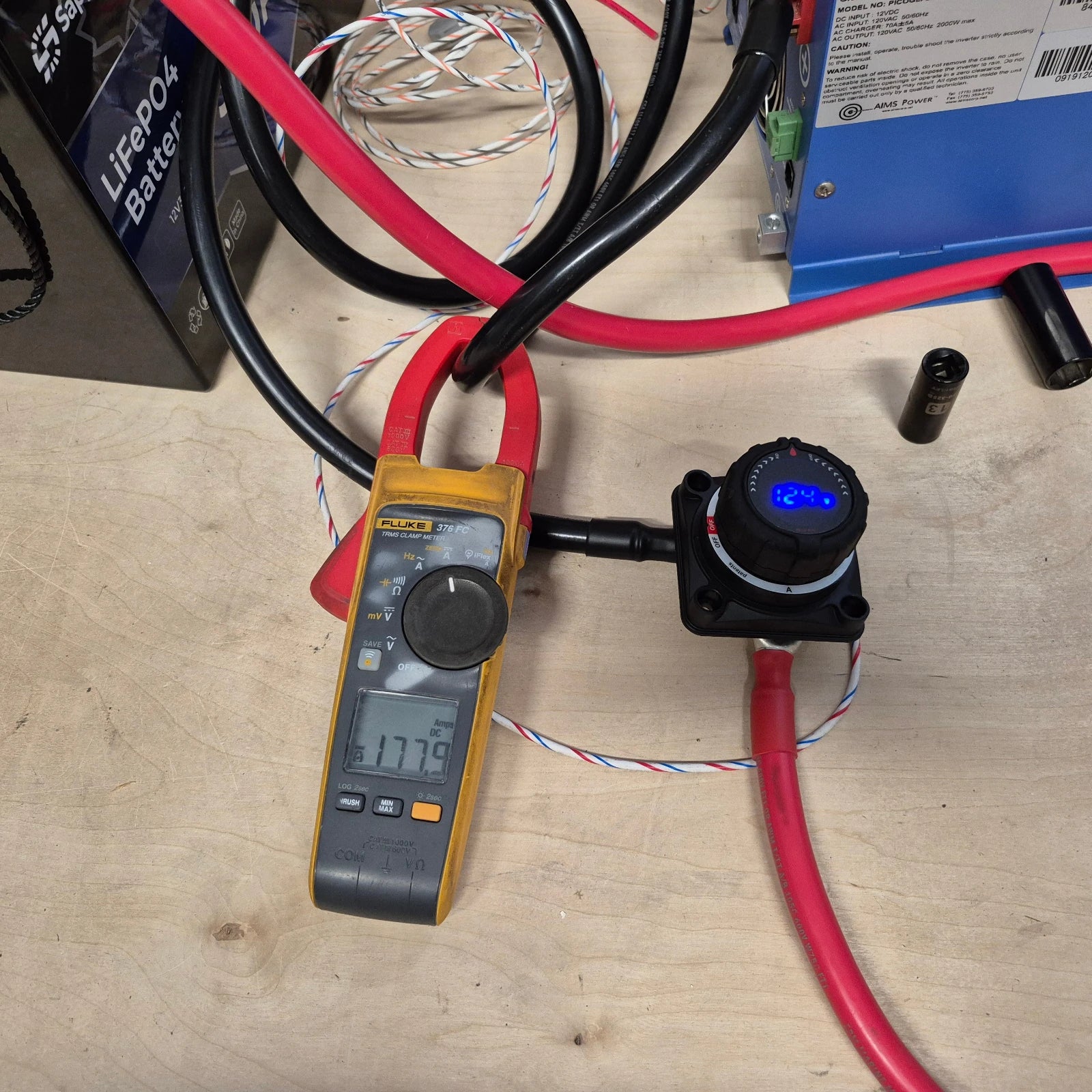

Note From Sapphire: Due to issues with so many disconnect switches for sale online, we carefully tested this switch in house with a ~175A Load for >30 Mins to ensure the safety of our customers. It remained cool with terminal temperatures only rising approximately 26°C (Read Blog Write-up Here), still safe enough to touch with bare hands. Always inspect your installed electrical equipment regularly.
Specifications
| Operating Voltage |
5 V – 60 V DC |
| Continuous Current |
250 A |
| Peak Current (30 min) |
300 A |
| Terminal Material |
Silver-plated copper |
| Terminal Size |
2 × M10 bolts (power), 1 × M6 bolt (led display) |
| Control Type |

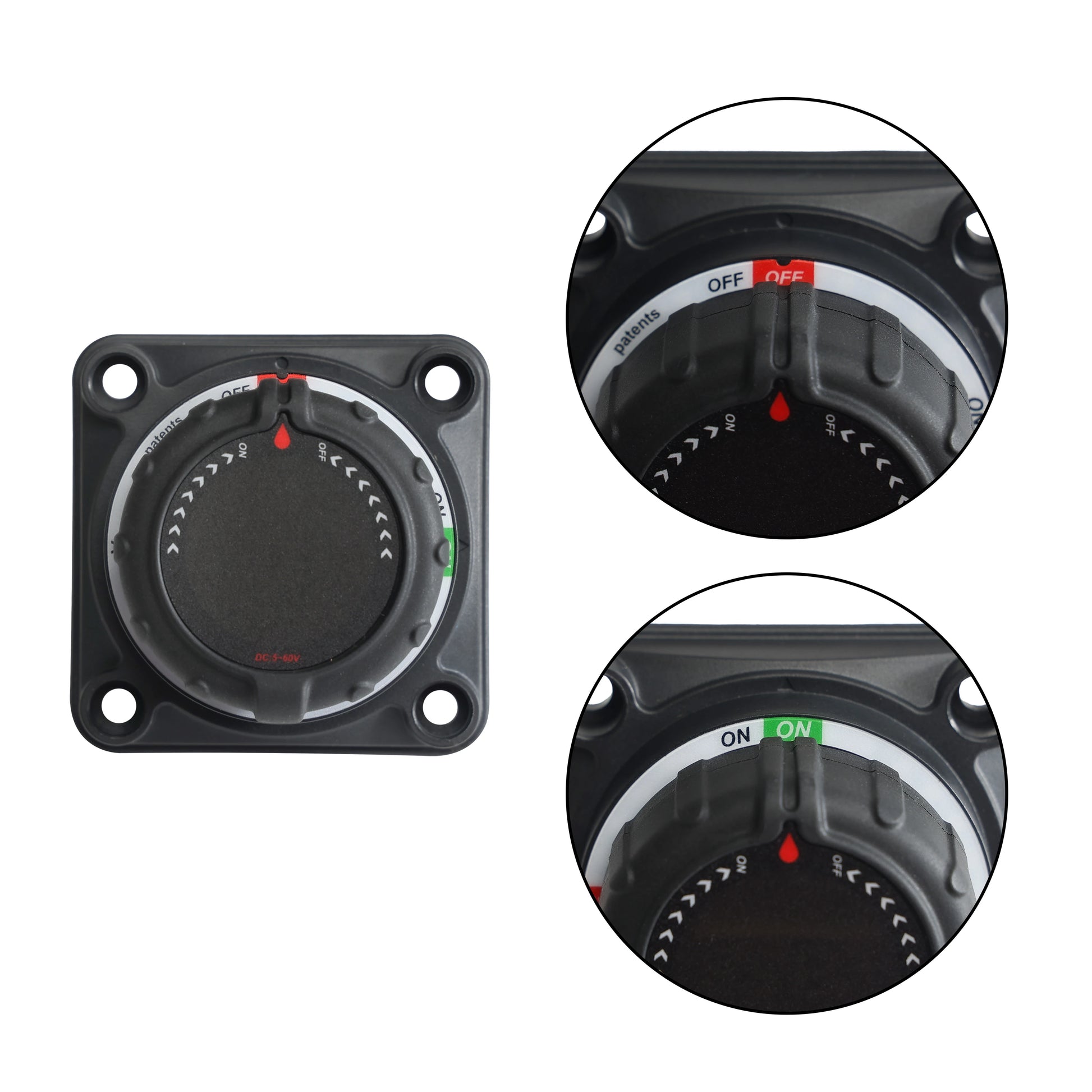

Manual rotary (ON / OFF) |
| Display |
Integrated digital voltage display |
| Application |
LiFePO₄ and Lead-Acid battery banks (12 V, 24 V, 36 V, 48 V systems) |
| Use Cases |
RVs, Vans, Schoolies, Marine, Off-Grid, Solar, etc |
| Housing |
Heavy-duty ABS/metal reinforced construction |
| Operating Temperature |
-20 °C to +60 °C (typical) |
| Mounting |

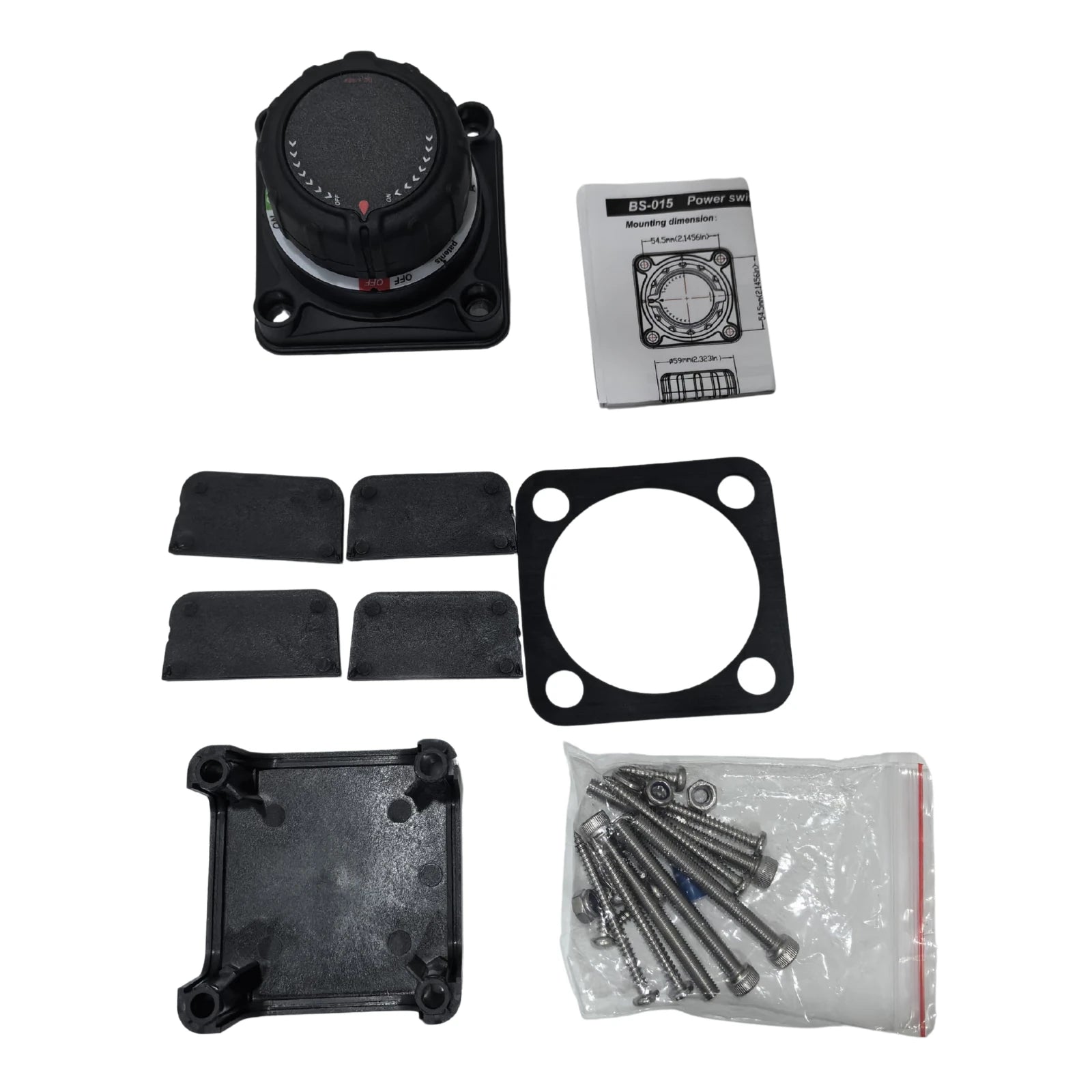

Surface Mount
Panel Mount (include rubber seal) |

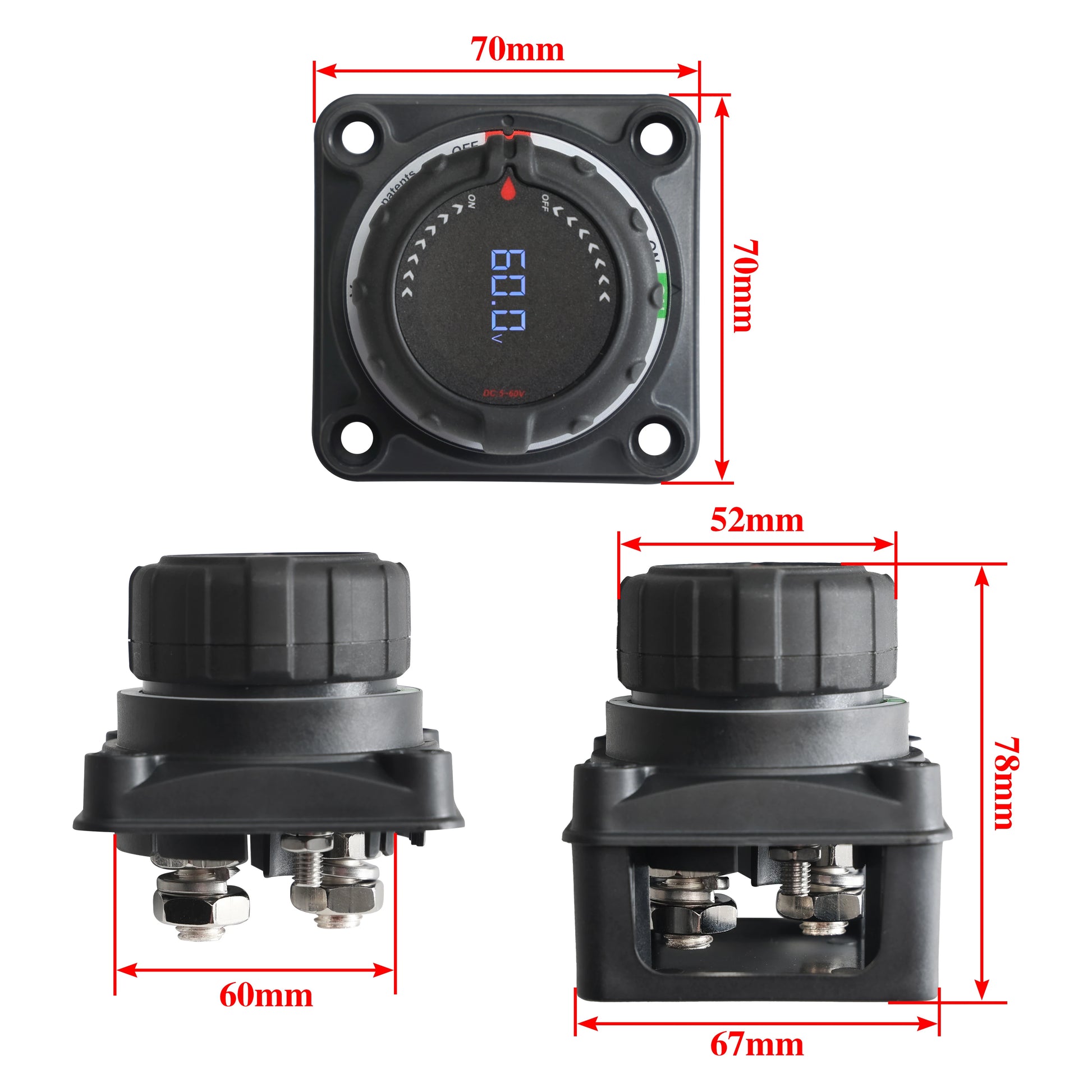

| Dimensions (LxWxH) |
70mm x 70mm x 78mm (surface mounted) |
