Why You'll Love This Battery
| True LiFePO₄ Performance | Enjoy the stability, long cycle life, and maintenance-free design of premium LiFePO₄ chemistry — safer and lighter than lead-acid, with thousands of usable cycles. | ||
| Build Big Banks | Connect up to 4 in series (48 V) or 4 in parallel to create affordable high-capacity systems — perfect for RVs, cabins, or small off-grid homes. | ||
| All-in-One Fuse Kit | Every battery ships with a 100 A fiberglass ANL fuse, holder, and 12″ #4 AWG jumper — giving you everything needed for safe, code-friendly installs. | ||
| Lightweight & Rugged | Weighing just ≈42 lb with rope handles and an IP65-rated case, it’s easy to carry, mounts cleanly, and shrugs off dust or spray. | ||
| Great Price, Same Support | Take advantage of a one-time discount on a proven design — complete with Canadian support. |
Overview

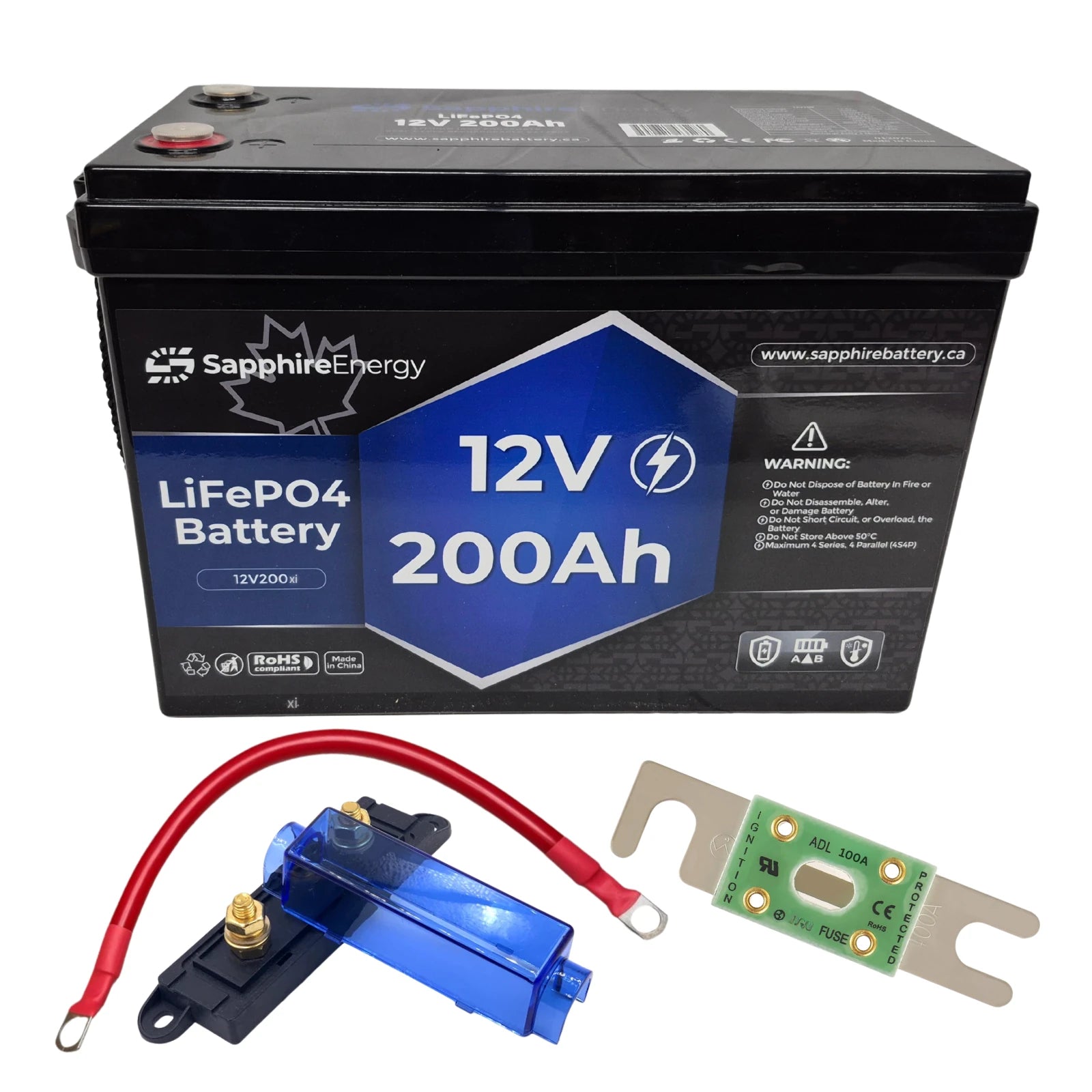

The Sapphire Energy 12V200xi 100 A Special Edition delivers 200 Ah (≈2.56 kWh) of dependable LiFePO₄ power in a compact, 42 lb package. It’s built around A-grade cells and a rugged IP65 case, offering long cycle life, light weight, and maintenance-free convenience — ideal for RVs, vans, boats, cabins, and backup systems.
Each battery ships with a 100 A fiberglass ANL fuse, heavy-duty holder, and a 12″ #4 AWG jumper, giving you everything needed for safe, code-friendly installation. Internal conductors in this batch are rated to 100 A continuous, so the included fuse is required for protection.
Bundle Savings: The fuse, holder, and copper cable are normally about $39 — included free for a ready-to-install package.
Why LiFePO₄ Makes Sense
Lithium iron phosphate chemistry offers high energy density, low weight, and excellent safety. With 5,000+ cycles at typical depth of discharge, the 12V200xi will outlast lead-acid by years while holding voltage steadier under load. There’s no watering, venting, or equalizing — just reliable power for daily use.
Safer chemistry, flat discharge curve, and very low self-discharge make it a natural upgrade from AGM or flooded batteries.
Flexible for Larger Banks
Build affordable capacity by wiring up to 4 in parallel for big amp-hour reserves, or series up to 4 (48 V) for systems supporting ~5 kW of inverter power. Low cost per kWh makes this batch an easy way to start or expand an off-grid bank without overspending.
With 4 Series & 4 Parallel, you can get 41kWh of storage, while powering up to 20kW of Inverter load!
Built for Reliability
A smart BMS protects against over/under-voltage, over-discharge, and short circuits, plus high/low temperature limits for charging and discharging. Rope handles and the sealed enclosure keep the battery portable and protected from dust or spray.
Rated 0 °C to +55 °C for charging (auto-resumes above +5 °C) and −20 °C to +60 °C for discharge.
Who It’s For
This limited-run battery is perfect for RV owners, van builders, boaters, off-grid cabins, and anyone needing a safe, low-cost lithium upgrade for 12 V, 24 V, or 48 V systems. Use it for fridges, pumps, lights, diesel heaters, radios, and small to mid-size inverters up to 100 A continuous.
Stock is limited — once these are gone, they're gone.
Applications
- RV & Camper Power — Run lights, fans, diesel heaters, fridges, and small inverters up to 100 A with reliable lithium energy.
- Vans & Overlanding — Compact, lightweight battery for powering coolers, LED lighting, water pumps, or radios on the trail.
- Boats & Marine — Perfect for trolling motors, house circuits, nav electronics, or bait tanks with easy, fuse-protected installs.
- Cabins & Sheds — Build affordable banks for lighting, water pumps, routers, and seasonal appliances.
- Series / Parallel Banks — Link up to 4 in parallel or 4 in series (48 V) to create larger systems — supporting roughly 5 kW inverter power at a fraction of the usual cost.
- Emergency Backup — Keep routers, LED lamps, and small medical or communication gear online during outages.
- Solar & Wind Storage — Pair with charge controllers for clean energy capture; ideal for budget off-grid projects.
- Ham & Two-Way Radio — Quiet, stable 12 V supply for amateur radio shacks, base stations, or field gear.
- DIY Power Boxes — Drop into custom enclosures with the included fuse kit for safe plug-and-play power.
Performance in Real-World Setups
Series or parallel for affordable capacity — includes fuse kit for quick, code-friendly wiring.
A pair of 12V200xi batteries wired in series makes an easy 24 V / 200 Ah bank (~5 kWh) for mid-size inverters.
Add two more for 48 V storage or larger off-grid systems. The included 100 A ANL fuse, holder, and jumper
simplify installation and save about $39 compared with buying accessories separately.
Big Power
Dreaming of a serious DIY energy bank? The 12V200xi lets you build a robust system without overspending. Up to four batteries can be wired in series for a 48 V string, and four of those strings can be run in parallel for massive capacity — a full 4S4P layout nets you a massive 41kWh capacity. Protect each string with its own 100 A ANL fuse (the battery includes one to get you started, and extras make great spares). This setup keeps wiring neat, safeguards each leg of the bank, and makes future maintenance or expansion simple.
Whether you’re powering a large off-grid cabin, workshop, or a high-demand mobile rig, this layout offers flexible growth and peace of mind. You’ll enjoy up to ~41 kWh of storage while staying organized and protected — perfect for DIY builders who want to scale safely.
Key Features
- Included safety gear — free: 100 A fiberglass ANL fuse, heavy-duty holder, and 12″ #4 AWG copper jumper (a $39 value) for a safe, tidy install.
- Low-temperature charging protection: automatically stops charge below 0 °C, resumes at +5 °C to protect cells in cold weather.
- A+ grade LiFePO₄ cells with built-in balancing for long, stable performance.
- High/low voltage & over-current protection managed by an advanced BMS.
- Rugged IP65 case with rope handles — easy to move, tough against dust and splashes.
- Up to 10-year service life and 5,000+ cycles at typical use depth (80%).
- Series connectable up to 48 V (4S) and parallel up to 4P — scale as your needs grow (Up to 41kWh).
- Can be safely paired up with our Classic 200Ah LiFePo₄ Battery as well
Everything you need for safe power is in the box — the fuse, holder, and cable are items every installer should use anyway, now bundled at no extra cost.
Specifications
- High-performance A+ grade LiFePO₄ cells
- Advanced BMS with over/under-voltage, and short-circuit protection
- Low-temperature charge cut-off to protect cells below freezing
- Includes 100A ANL fuse, holder, and 12″ #4 AWG jumper for safe installation
- Rugged IP65 enclosure with dual rope handles
- Up to 10-year service life
| Model | 12V200xi |
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 200 Ah |
| Energy | ≈ 2.56 kWh |
| Continuous Discharge | 100 A (max BMS output) |
| Recommended Charge Voltage | 14.2 – 14.4 V (max 14.6 V) |
| Balancing Voltage | ≈ 3.45 V per cell |
| Low-Temp Cut-offs | Charge: 0 °C (release +5 °C) • Discharge: −20 °C (release −10 °C) |
| Cycle Life | 5000+ cycles (80% DoD) |
| Ingress Rating | IP65 |
| Dimensions (L × W × H) | 385 × 192 × 260 mm (15.2 × 7.6 × 10.2 in) |
| Weight | 19 kg (≈ 42 lb) |
| Series / Parallel | Up to 4 S (48 V) or 4 P |
| Warranty | 1-year limited |
Getting Started & Sizing
What size LiFePO₄ battery should I start with?
Usually we suggest you start by calculating your daily energy use. Make a list of devices and total up their Wh (watts × hours/day = watt-hours). Add everything up, then divide by your system voltage (12/24/48 V) to estimate amp-hours (Ah). Add at least 20–30% headroom for busier days and future add-ons. Then take this number and multiply by the number of days you need the system to stay powered on without any outside energy input (no shore power/solar/etc). This will give you a rough number to look for.
Easy first picks by use case:
• Budget/compact: 1280Wh — 12.8V 100Ah Classic
• More runtime: 2560Wh — 12.8V 200Ah Classic
• Winter & higher output: 2560Wh — 12.8V 200Ah Self-Heating Bluetooth (High Output)
• Longer runtime: 3840Wh — 12.8V 300Ah Bluetooth
New to sizing? How much battery do I need?
Easy first picks by use case:
• Budget/compact: 1280Wh — 12.8V 100Ah Classic
• More runtime: 2560Wh — 12.8V 200Ah Classic
• Winter & higher output: 2560Wh — 12.8V 200Ah Self-Heating Bluetooth (High Output)
• Longer runtime: 3840Wh — 12.8V 300Ah Bluetooth
New to sizing? How much battery do I need?
Can I replace my lead-acid battery one-for-one?
Voltage is compatible, but LiFePO₄ gives much higher usable capacity—you typically get 80–90% usable vs ~50% for lead-acid. Many customers downsize Ah and still get equal or better runtime. A single 100Ah LiFePO₄ can feel like a 150–180Ah lead-acid in real-world use because you can safely use more of its capacity without damage. See All LiFePO₄ Batteries. Curious why? Lithium vs Lead—Your Choices.
What inverter size pairs well with my first battery?
Add up simultaneous AC loads and include surge (many appliances draw 2–3× their running watts for a split-second). A 1,000–1,500 W coffee maker + a 100 W laptop points to a 2,000 W inverter. For power tools or induction cooktops, either stay 12 V with a higher-output pack like 12V 200Ah Self-Heating Bluetooth (High Output), or step up to 24 V for lower current and better efficiency.
Why choose a single 24 V battery instead of 2×12 V in series?
A one-piece 24 V battery simplifies your life:
• No pack-to-pack balancing — one case, one BMS, one Bluetooth connection.
• Simpler wiring — fewer cables, no series jumpers.
• Easier monitoring — one app (if Bluetooth).
• Lower current for the same power — slimmer cables and cooler-running inverters.
See our 24V 200Ah Self-Heating Bluetooth (High Output).
• No pack-to-pack balancing — one case, one BMS, one Bluetooth connection.
• Simpler wiring — fewer cables, no series jumpers.
• Easier monitoring — one app (if Bluetooth).
• Lower current for the same power — slimmer cables and cooler-running inverters.
See our 24V 200Ah Self-Heating Bluetooth (High Output).
Charging: AC, Alternator & Solar
Do I need a charger made for LiFePO₄?
Yes. LiFePO₄ performs best when the charger uses a lithium profile. For a 12 V battery, target bulk/absorption ~14.2–14.6 V and either no float or a short/low float ≤ 13.6 V. Avoid equalization entirely—it’s a lead-acid maintenance step that isn’t used for LiFePO₄ and can be harmful.
AC → DC charging (shore power or generator) — a dedicated LiFePO₄ charger converts household AC into a precise DC charge curve matched to lithium chemistry. If you’re plugging in at campgrounds, marinas, or with a small generator, this is the simplest route. Browse our LiFePO₄ Battery Chargers.
Solar charging — pair your panels with a solar charge controller that has a LiFePO₄ profile (or custom setpoints). The controller handles MPPT/PWM regulation and applies the correct voltages to protect the battery and maximize harvest. See our Solar Charge Controllers. If your controller offers user-defined setpoints, use the same 12 V targets above (bulk/absorb ~14.2–14.6 V; minimal/disabled float; no equalize).
AC → DC charging (shore power or generator) — a dedicated LiFePO₄ charger converts household AC into a precise DC charge curve matched to lithium chemistry. If you’re plugging in at campgrounds, marinas, or with a small generator, this is the simplest route. Browse our LiFePO₄ Battery Chargers.
Solar charging — pair your panels with a solar charge controller that has a LiFePO₄ profile (or custom setpoints). The controller handles MPPT/PWM regulation and applies the correct voltages to protect the battery and maximize harvest. See our Solar Charge Controllers. If your controller offers user-defined setpoints, use the same 12 V targets above (bulk/absorb ~14.2–14.6 V; minimal/disabled float; no equalize).
Can I charge from my vehicle alternator?
Absolutely—use a DC-DC charger between starter and house battery. It protects the alternator, limits current to a safe level, and applies a lithium profile. Without DC-DC, modern smart alternators may under-charge or overheat. For visibility while driving, our BM02 Bluetooth Battery Monitor shows volts, amps, and SOC on an LCD and in the phone app in real time.
Why Would I Need Self Heating?
Lithium cells should not be charged below 0 °C (32 °F). Most LiFePO₄ BMSs include a low-temperature charge cutoff to prevent plating damage—on freezing days your battery may refuse to accept a charge until it’s warm enough. That’s normal and it protects your pack for the long term.
Our Self-Heating batteries solve this by warming the cells automatically whenever charging is requested below freezing. The pack heats to a safe internal temperature, then begins charging—no manual steps. This is ideal for northern climates, winter activities (ice fishing, ski trips), vanlife, and outdoor storage where temps fluctuate. Adding insulation around the battery compartment helps it warm faster and reduces temperature swings for more consistent performance.
Our Self-Heating batteries solve this by warming the cells automatically whenever charging is requested below freezing. The pack heats to a safe internal temperature, then begins charging—no manual steps. This is ideal for northern climates, winter activities (ice fishing, ski trips), vanlife, and outdoor storage where temps fluctuate. Adding insulation around the battery compartment helps it warm faster and reduces temperature swings for more consistent performance.
How much solar should I pair with a 12 V system?
A simple starting point is 100 W of solar when you’re just getting started or topping up on weekends. From there, scale based on your daily energy use and how many “backup days” you want.
Design rule of thumb (off-grid): 3 days of autonomy. That means sizing battery + solar so you can run for ~3 cloudy days without fully depleting the battery. If you also have alternate charging like a DC-DC alternator charger or occasional AC charger at campgrounds, you can safely reduce that autonomy target because you’re not relying on solar alone.
Step 1 — Calculate your daily watt-hours (Wh)
Make a list of devices: Watts × hours per day = Wh/day. Add them up.
Example day: LED lights (15 W × 4 h = 60 Wh), laptop (60 W × 3 h = 180 Wh), 12 V fridge (40 W avg × 24 h ≈ 960 Wh), phone charging (10 W × 2 h = 20 Wh). Total ≈ 1,220 Wh/day.
Step 2 — Size the battery bank
Battery capacity in Wh = Voltage × Ah. A 12 V 100 Ah LiFePO₄ ≈ 1,280 Wh, with ~80–90% usable = ~1,000–1,150 Wh usable. For 1,220 Wh/day and one day of autonomy, you’d look at ~12 V 200 Ah. For the full 3-day autonomy target, ~12 V 300–400 Ah (or a 24 V bank to reduce current).
Step 3 — Size the solar
Daily solar production ≈ Panel Watts × Sun-hours × system efficiency (efficiency often ~0.7 to include controller/battery losses). With 400 W of panels and 4 sun-hours: 400 × 4 × 0.7 ≈ 1,120 Wh/day—close to our 1,220 Wh example. If you drive daily with a DC-DC charger, you can rely on alternator charging to fill the gap and may choose fewer panels.
Be honest about heavy loads. High-draw devices (kettles, coffee makers, induction, space heaters) and large inverters increase both battery size and solar needed. Start small and expand as you confirm your real-world use.
For a deeper walkthrough, see How much battery do I need?, and explore Solar Products plus Charge Controllers.
Design rule of thumb (off-grid): 3 days of autonomy. That means sizing battery + solar so you can run for ~3 cloudy days without fully depleting the battery. If you also have alternate charging like a DC-DC alternator charger or occasional AC charger at campgrounds, you can safely reduce that autonomy target because you’re not relying on solar alone.
Step 1 — Calculate your daily watt-hours (Wh)
Make a list of devices: Watts × hours per day = Wh/day. Add them up.
Example day: LED lights (15 W × 4 h = 60 Wh), laptop (60 W × 3 h = 180 Wh), 12 V fridge (40 W avg × 24 h ≈ 960 Wh), phone charging (10 W × 2 h = 20 Wh). Total ≈ 1,220 Wh/day.
Step 2 — Size the battery bank
Battery capacity in Wh = Voltage × Ah. A 12 V 100 Ah LiFePO₄ ≈ 1,280 Wh, with ~80–90% usable = ~1,000–1,150 Wh usable. For 1,220 Wh/day and one day of autonomy, you’d look at ~12 V 200 Ah. For the full 3-day autonomy target, ~12 V 300–400 Ah (or a 24 V bank to reduce current).
Step 3 — Size the solar
Daily solar production ≈ Panel Watts × Sun-hours × system efficiency (efficiency often ~0.7 to include controller/battery losses). With 400 W of panels and 4 sun-hours: 400 × 4 × 0.7 ≈ 1,120 Wh/day—close to our 1,220 Wh example. If you drive daily with a DC-DC charger, you can rely on alternator charging to fill the gap and may choose fewer panels.
Be honest about heavy loads. High-draw devices (kettles, coffee makers, induction, space heaters) and large inverters increase both battery size and solar needed. Start small and expand as you confirm your real-world use.
For a deeper walkthrough, see How much battery do I need?, and explore Solar Products plus Charge Controllers.
Installation & Wiring
Can I connect multiple Sapphire batteries together?
Yes. In series, voltage adds (Ah stays the same): two 12 V 100 Ah in series = 24 V 100 Ah. In parallel, Ah adds (voltage stays the same): two 12 V 100 Ah in parallel = 12 V 200 Ah. Series lowers current for the same power (thinner cables, higher inverter efficiency), while parallel increases runtime at the same voltage. Many 12 V models—like the Classic 100 Ah—support 24/36/48 V series.
Best practices: fully charge each battery before linking, use equal-length interconnects so currents share evenly, and match model/age/capacity. A Bluetooth model or a shunt monitor makes verification easy.
Best practices: fully charge each battery before linking, use equal-length interconnects so currents share evenly, and match model/age/capacity. A Bluetooth model or a shunt monitor makes verification easy.
What wire size and fuse should I use?
Wire is sized for current and length. Higher current or longer runs need thicker wire to keep voltage drop low. For 12 V systems, try to keep drop under ~3%. The main fuse/breaker should be as close to the battery as possible and sized to protect the cable (ampacity) and your system’s max current. If your inverter draws 150 A continuous, use cable and a fuse rated for at least that plus a safety margin.
Need parts? See Wiring & Accessories. For manuals and inverter/charger specs, visit Downloads.
Need parts? See Wiring & Accessories. For manuals and inverter/charger specs, visit Downloads.
Can I install my battery indoors?
Yes—LiFePO₄ doesn’t produce routine off-gassing like flooded lead-acid, so indoor installs (RVs, vans, cabins, boats) are common. Secure the battery, cover terminals, use proper fusing, and ensure chargers/inverters have ventilation. If you see freezing temps, consider our Self-Heating models or insulate the compartment.
Can I mount the battery on its side? Is the case weather-resistant?
Our prismatic-cell packs can be installed in multiple orientations (just protect the terminals from stress). Models like the Classic 100 Ah are IP65 with carry handles—great for marine, RV, and mobile setups. IP65 means dust-tight and protected from low-pressure water jets; don’t submerge it.
Operation, Safety & Monitoring
Are Sapphire LiFePO₄ batteries safe?
Yes. LiFePO₄ is a stable chemistry with strong thermal safety compared to many other lithium types. Each pack includes a BMS that protects against over/under-voltage, high/low temperature, over-current, and short circuits. Combine that with proper wire sizing, fusing, and a quality charger, and you’ll have a safe, long-lasting setup.
How can I monitor health and state of charge (SOC)?
We recommend two beginner-friendly options—use one or both:
1) Shunt-based monitor (most accurate) — installs on battery negative and measures all current in/out to compute SOC, amps, Ah used, and time remaining. Our BM02 includes the shunt, an LCD, and a phone app. Wiring: battery negative → shunt → system negative, plus a small positive lead for the display.
2) Bluetooth batteries (fast & easy) — our Bluetooth packs report voltage, current, temperatures, cell balance, and BMS status in the app. A great example is the 12V 200Ah Self-Heating Bluetooth (High Output). Manuals and apps: Downloads.
Tip: Shunt monitors excel at accurate SOC over time; Bluetooth is great for diagnostics and cell-level detail.
1) Shunt-based monitor (most accurate) — installs on battery negative and measures all current in/out to compute SOC, amps, Ah used, and time remaining. Our BM02 includes the shunt, an LCD, and a phone app. Wiring: battery negative → shunt → system negative, plus a small positive lead for the display.
2) Bluetooth batteries (fast & easy) — our Bluetooth packs report voltage, current, temperatures, cell balance, and BMS status in the app. A great example is the 12V 200Ah Self-Heating Bluetooth (High Output). Manuals and apps: Downloads.
Tip: Shunt monitors excel at accurate SOC over time; Bluetooth is great for diagnostics and cell-level detail.
What temperature range should I plan for?
Rule of thumb: discharge down to about −20 °C (with reduced power) and charge at 0 °C or above. Below freezing, the BMS will usually block charging to protect the cells. If you regularly operate in the cold, our Self-Heating models warm themselves before charging. If the pack is flat and won’t start charging, see: Under-Voltage Protection & Recovery.
Maintenance & Storage
What’s your warranty and typical lifespan?
We back our batteries with a 5-year limited warranty. Lifespan depends on depth of discharge (shallower cycles last longer), charge/discharge rates, temperature, and storage practices. Many customers see years of daily cycling. For terms, visit Warranty Policy.
How should I store the battery off-season?
Store around 50–80% SOC in a cool, dry place. Check SOC every 2–3 months and top up if it drifts toward ~50%. Disconnect small parasitic loads (trackers, meters) so the battery doesn’t slowly drain. If storing where it’s cold, avoid charging below 0 °C unless you’re using a Self-Heating model.
Do your batteries need routine maintenance?
LiFePO₄ is low-maintenance: no watering and no equalization. Periodically tighten lugs, check for corrosion or heat discoloration, secure cabling against vibration, and keep vents clear on chargers/inverters. Need parts? See Wiring & Accessories.
Troubleshooting
My battery shut off under load—what caused it?
The BMS likely protected the pack from over-current (load too large) or low-voltage (battery nearly empty). Check inverter surge rating, cable gauge, and that all connections are tight. If the pack was deeply discharged, begin charging—most BMSs reset automatically once a healthy voltage is reached. Bluetooth models show which protection triggered; see the app. If you ran flat, this guide helps: Under-Voltage Protection & Recovery.
It won’t start charging after running flat—how do I “wake” it?
Some chargers won’t begin if the BMS is in low-voltage cutoff. Use a LiFePO₄-compatible charger with a recovery/start function, or briefly parallel a known-good 12 V source under supervision to raise voltage, then swap to the normal charger. Verify the charger has a lithium profile (no equalize, short/low float). To prevent repeat events, install a shunt monitor like BM02 and set low-SOC alerts.
Policies, Shipping & Compatibility
Where do you ship from and what are the terms?
We’re a Canadian-owned supplier. We frequently run free-shipping promos across much of Canada; exact eligibility and timelines show at checkout on each product. Start here: Sapphire Energy.
Can I mix different brands or capacities?
We don’t recommend mixing. Different internal resistances and BMS behaviors can fight each other, causing imbalance. If you must combine, match model/age/capacity, fully charge and balance each first, and monitor carefully (Bluetooth plus a shunt is best). The ideal approach is to build your bank from the same series.
Where can I find manuals, spec sheets, and apps?
Everything’s in one place: Downloads — BM01/BM02 apps, the JBD (XiaoXiang) app for Bluetooth batteries, plus product manuals and spec sheets.
