ANL High Current Fuses (UL)
ANL High Current Fuses (UL)
Couldn't load pickup availability

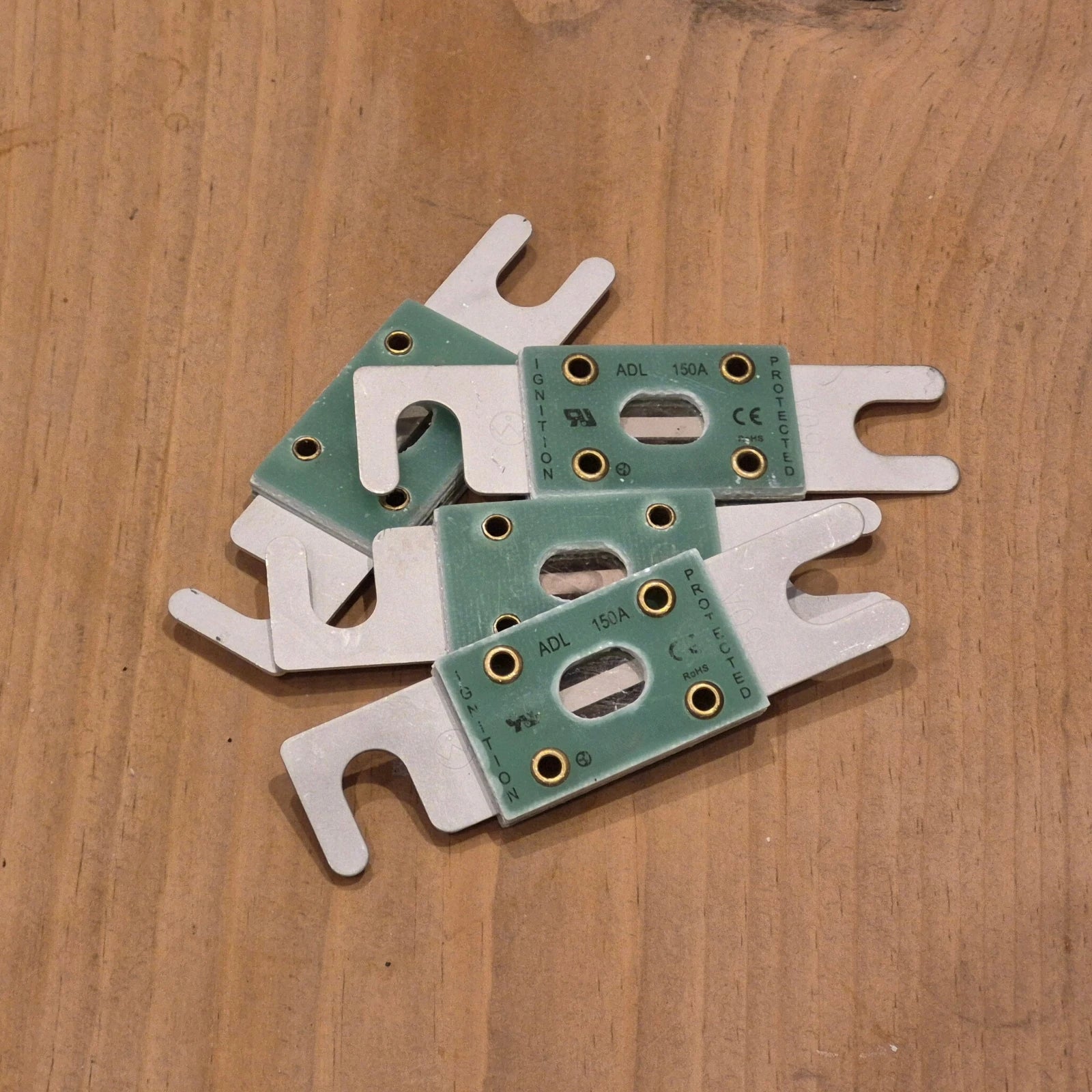

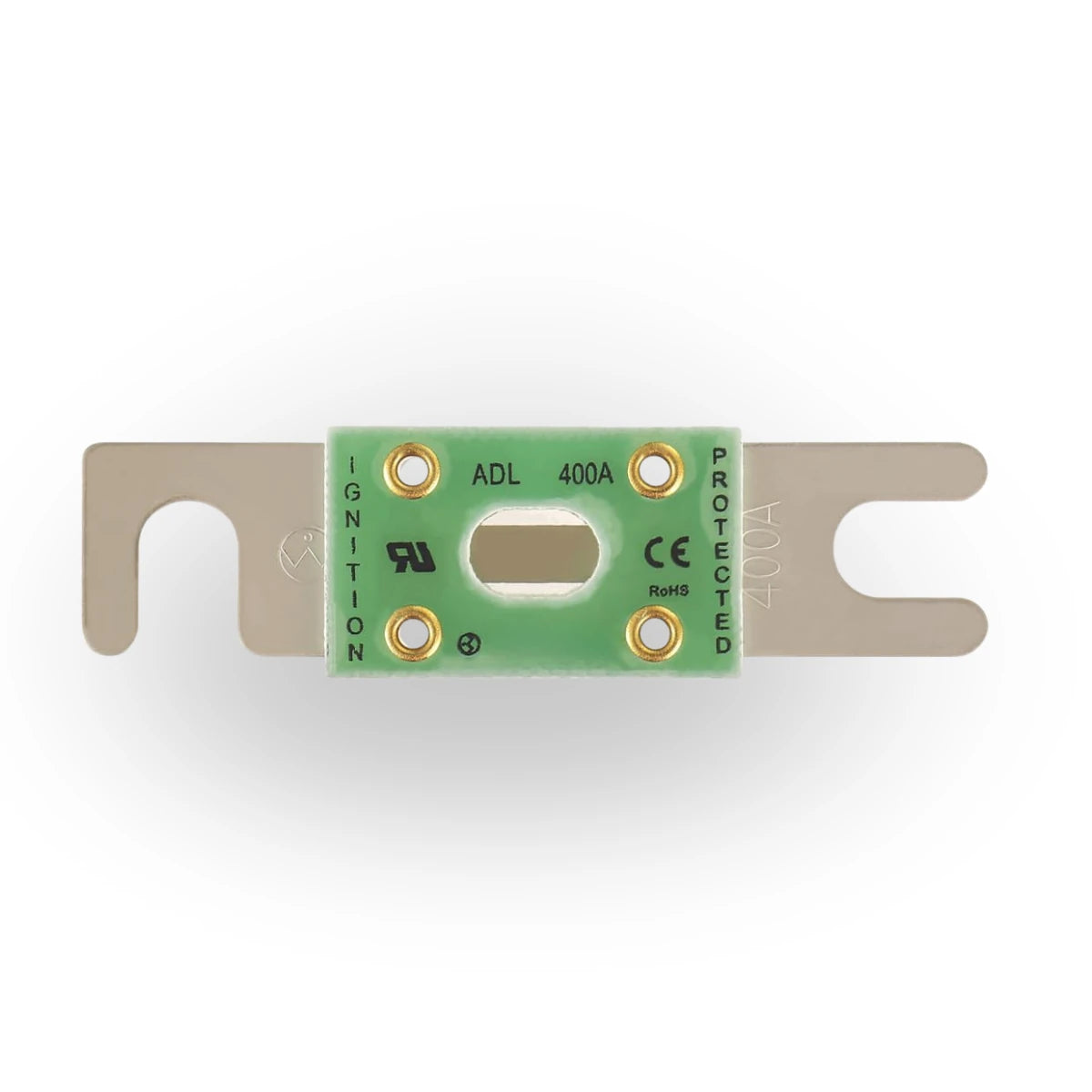

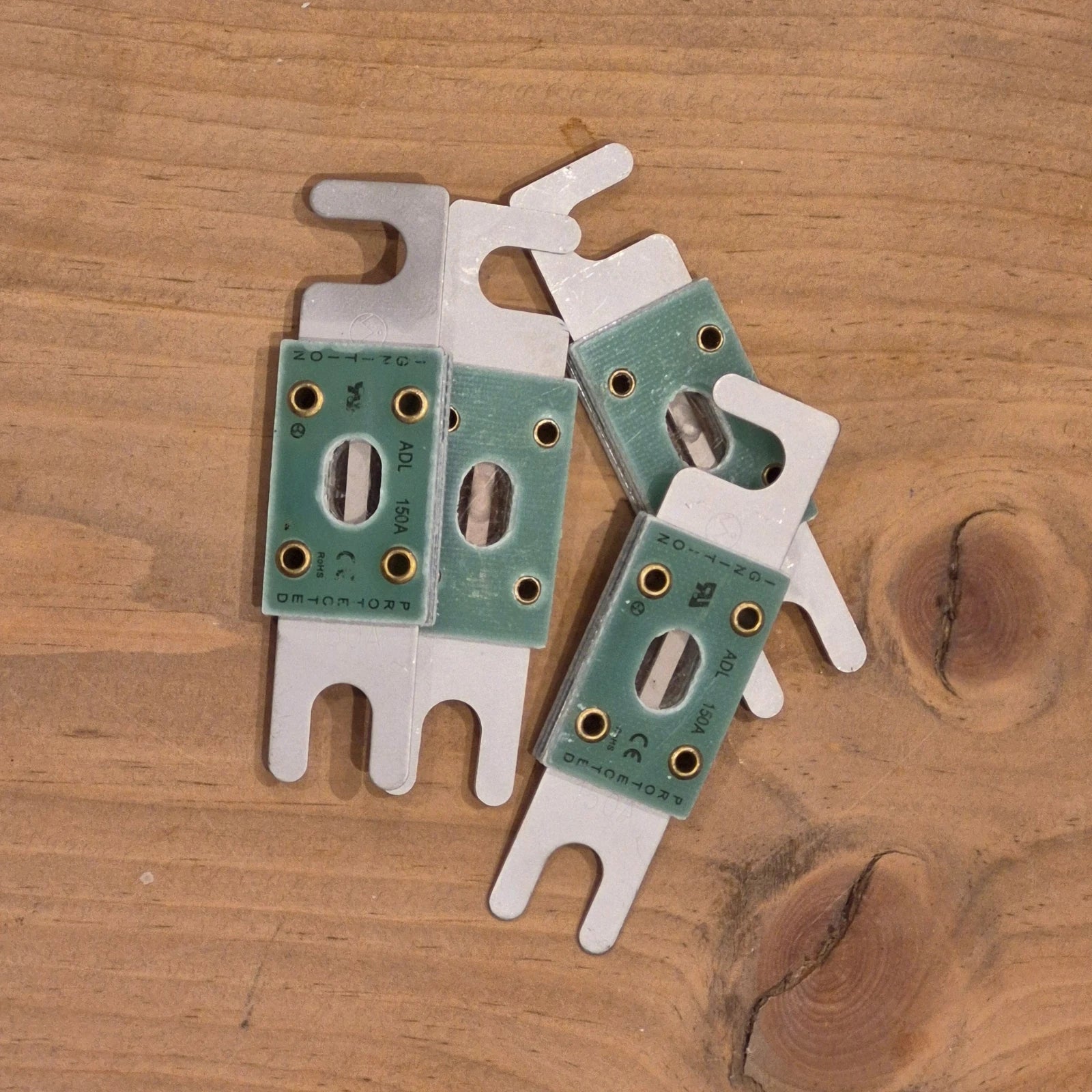

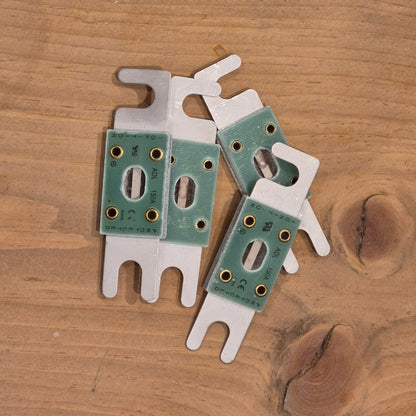

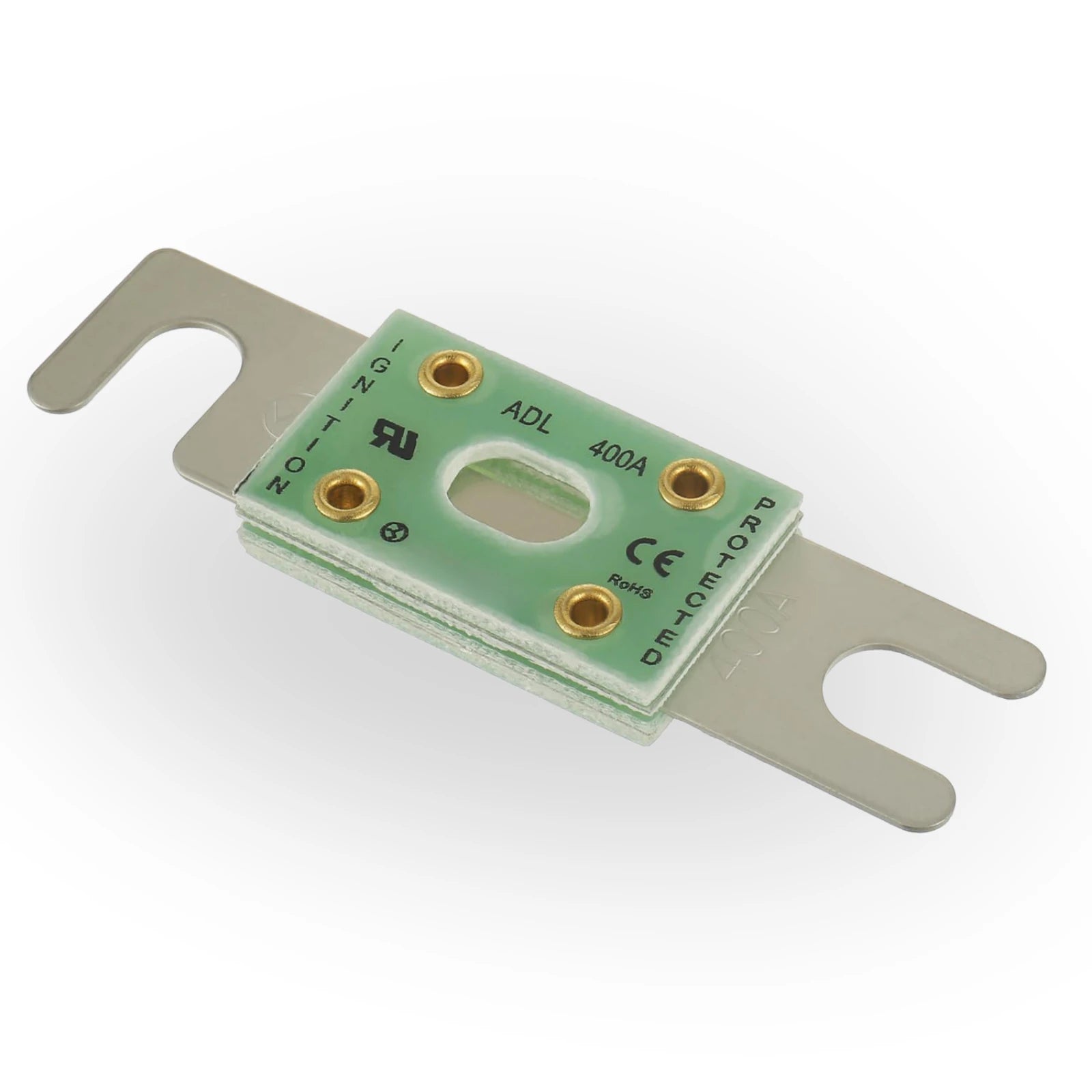

UL-Listed Fiberglass ANL Fuses (100A – 400A, Up to 125V DC)
Protect your DC power system with professional-grade ANL fuses engineered for safety, reliability, and compliance. Built on a fiberglass-reinforced body with riveted construction, these fuses resist heat and arc events far better than common plastic alternatives. Certified to UL and CE standards with ignition protection (SAE J1171), they are safe for installation even aboard gasoline-powered boats.
Specs at a Glance
| Voltage Rating | Up to 125V DC |
| Interrupt Capacity (AIC) | 6,000 Amps @ 125VDC |
| Certifications | UL Listed & CE Approved |
| Ignition Protection | SAE J1171 (safe for gasoline boats) |
| Body Construction | Fiberglass-reinforced with riveted edges |
| Form Factor | Standard ~81 mm ANL size |
⚡ Features at a Glance
- Up to 125V DC rating
- 6,000A AIC @ 125V DC
- UL & CE certified
- Ignition protected (SAE J1171)
- Fiberglass body resists heat & fire
- Standard ~81 mm size fits most holders
Applications
Perfect for solar arrays, RVs, marine power, off-grid cabins, and custom DC systems. Use these fuses to protect inverters, battery banks, charge controllers, and distribution circuits. They are also an excellent match for your Sapphire Lithium Battery, ensuring safe, certified protection for your system.

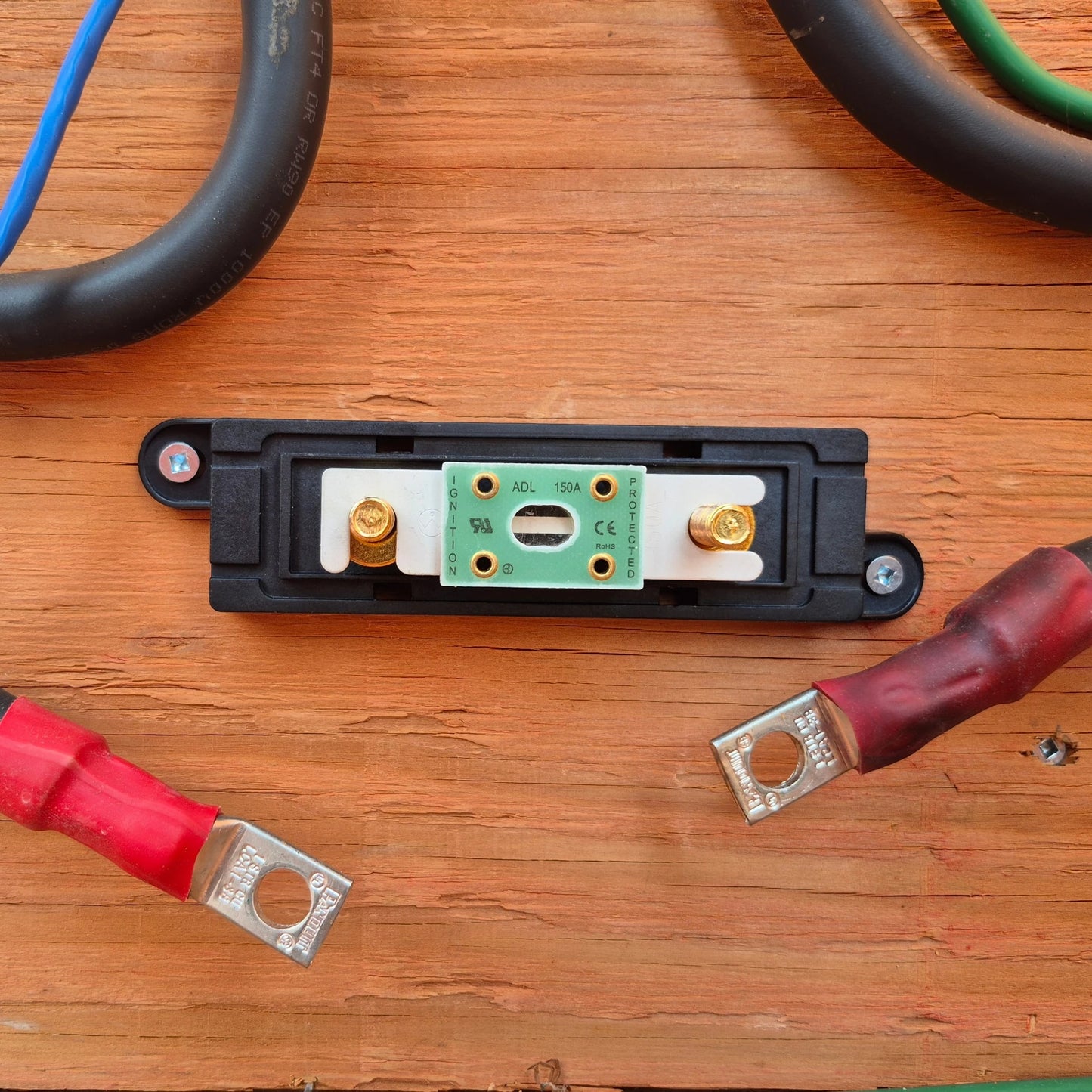

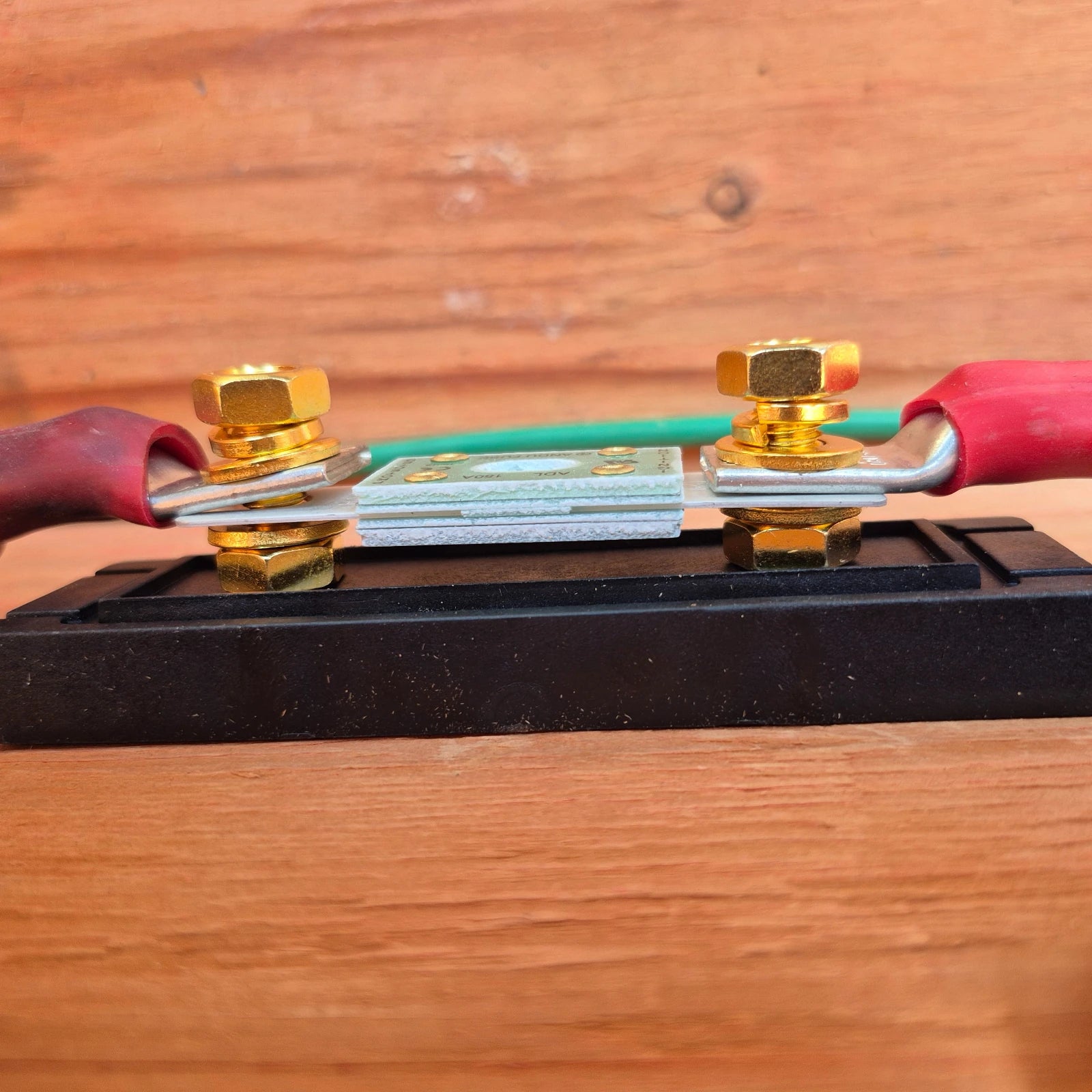

Need a mount? Shop the ANL Fuse Holder or grab the Fuse + Holder Bundle Kit.
