Victron GX Touch 50 & 70 Wall Mount
Victron GX Touch 50 & 70 Wall Mount
Couldn't load pickup availability
Victron GX Touch 50 & 70 Wall Mount

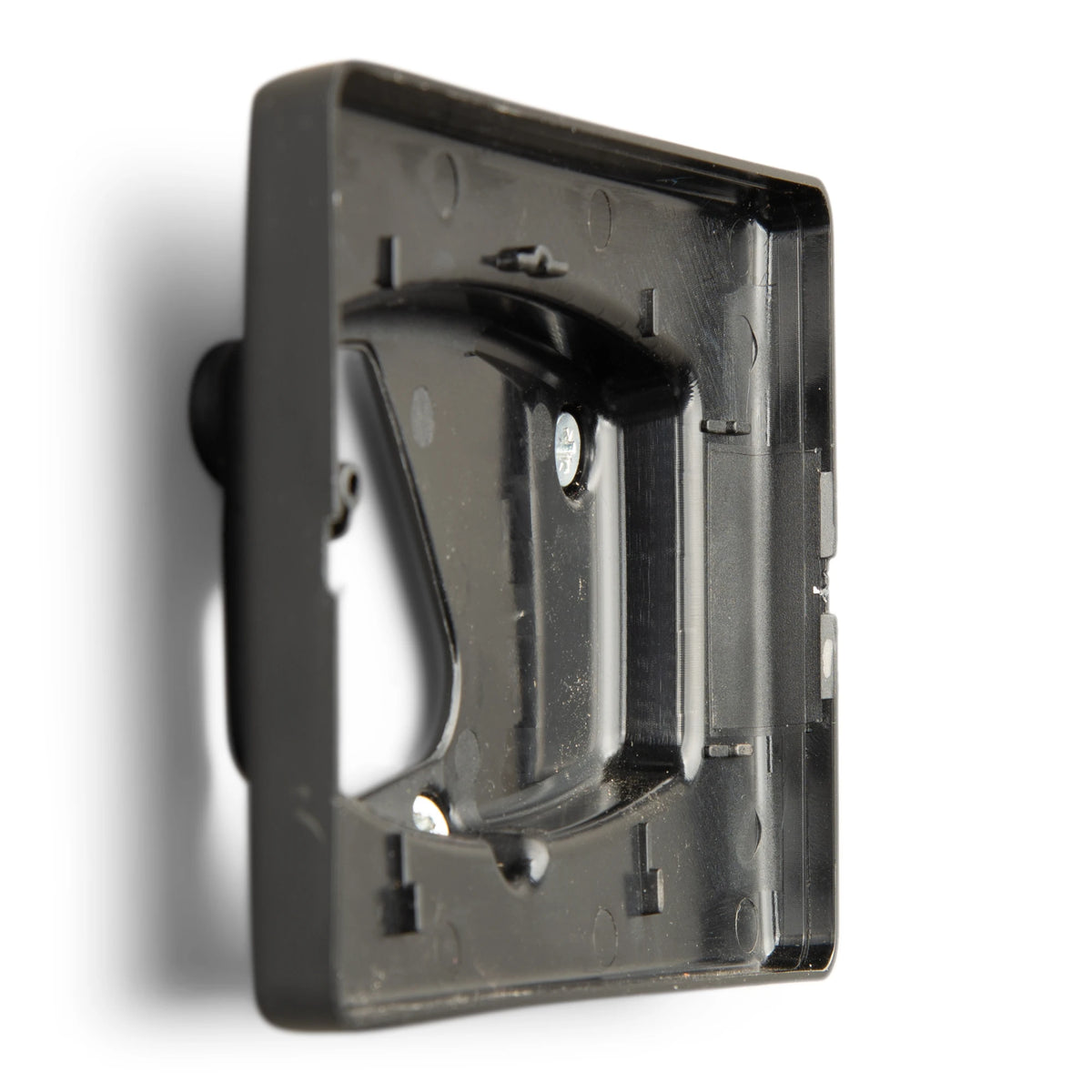

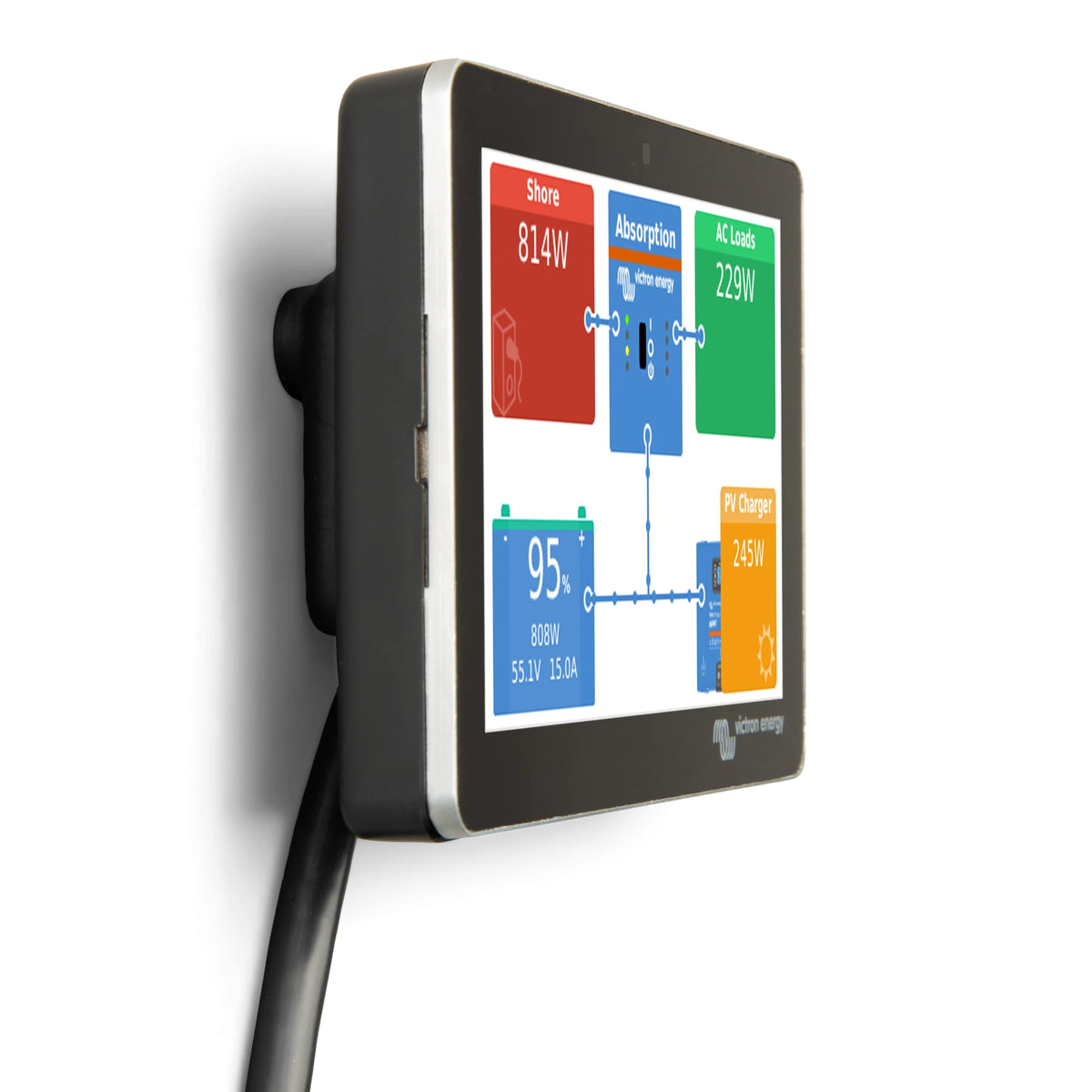

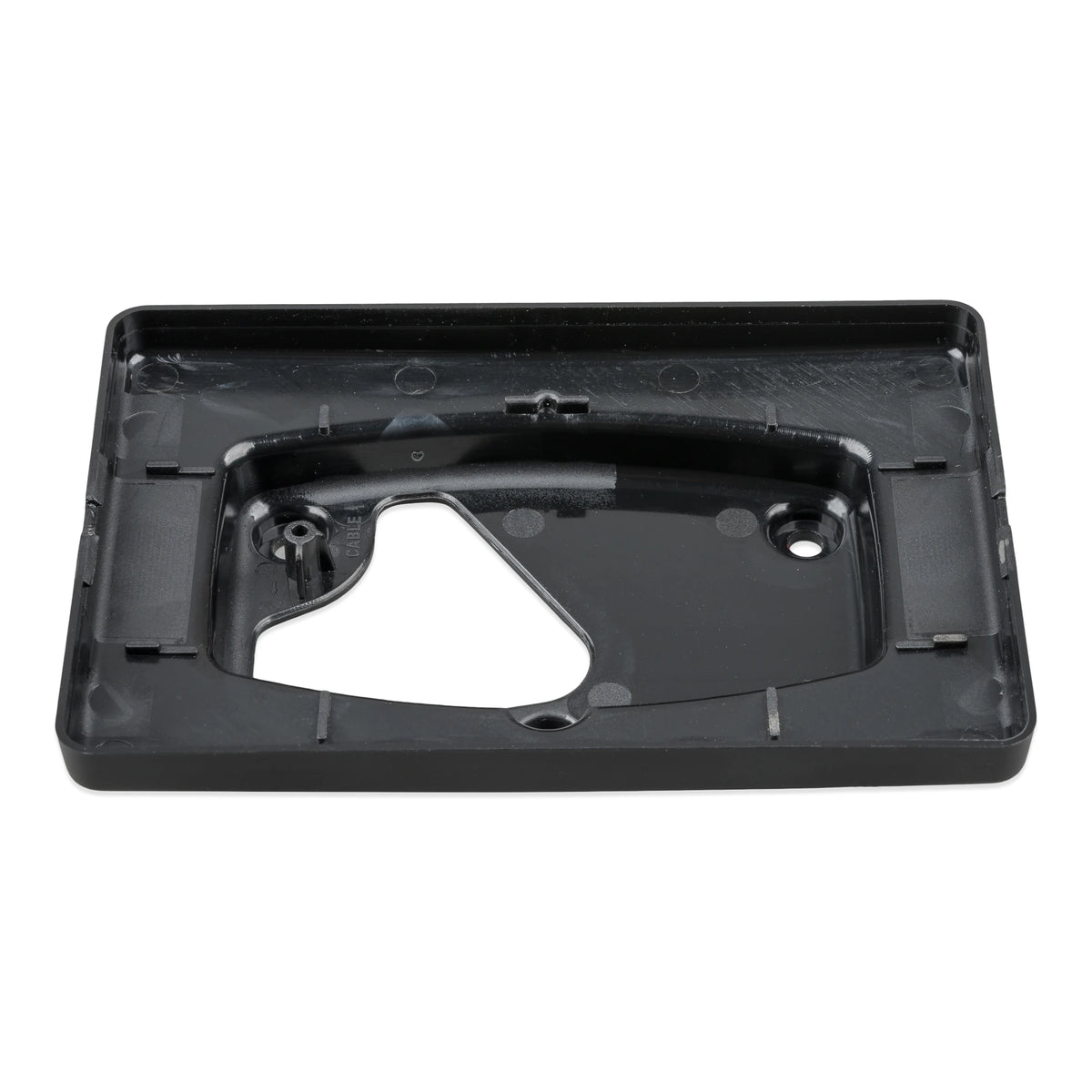

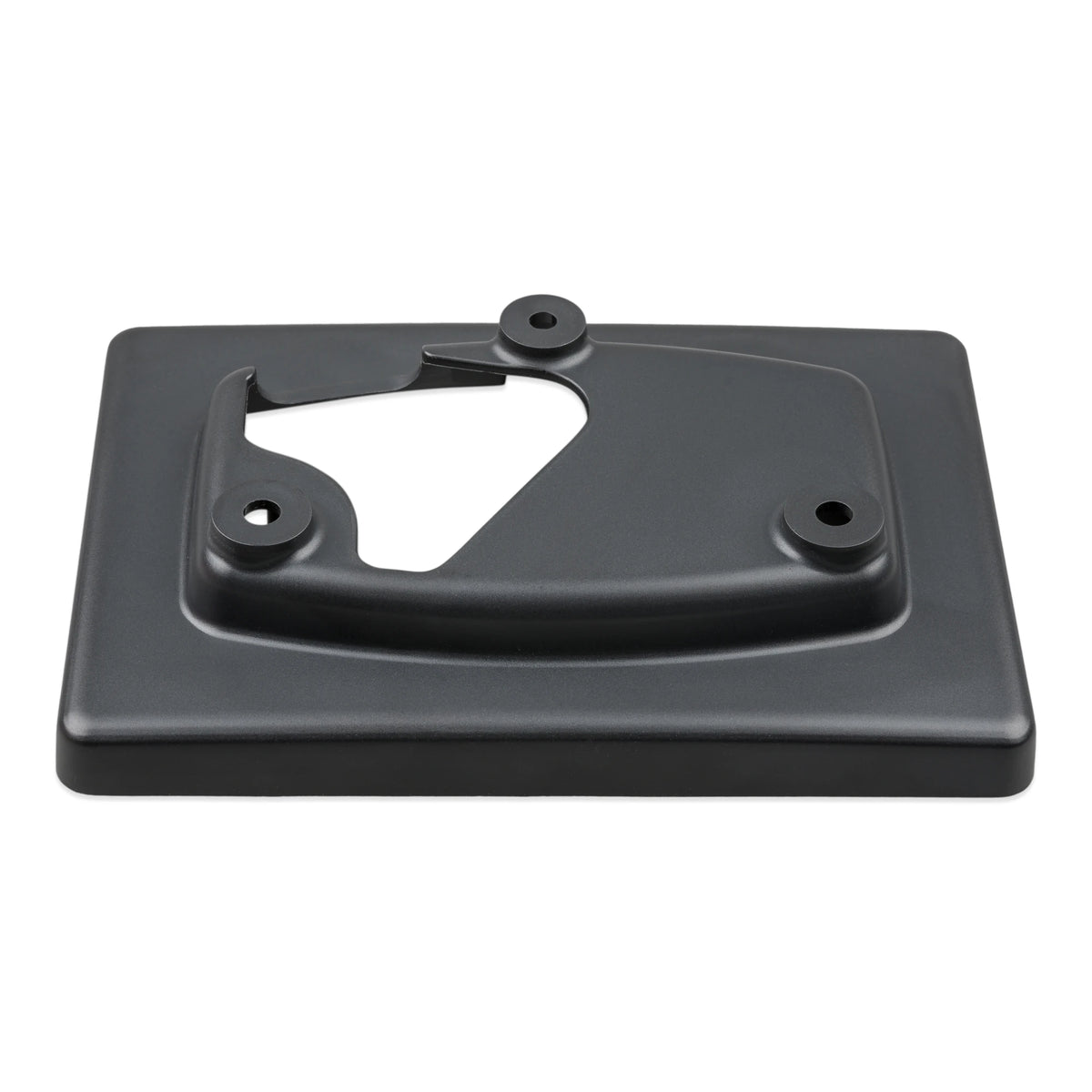

Surface mount your Victron GX Touch display without cutting a large opening into the wall or control panel. The GX Touch Wall Mount provides a clean, secure installation for locations where the standard panel-mount arrangement is not practical.
Choose the GX Touch 50 or GX Touch 70 version to match your display. The two mounts are different sizes and are not interchangeable.
- Clean surface-mounted installation for your GX Touch display
- Avoids the large cut-out required for conventional panel mounting

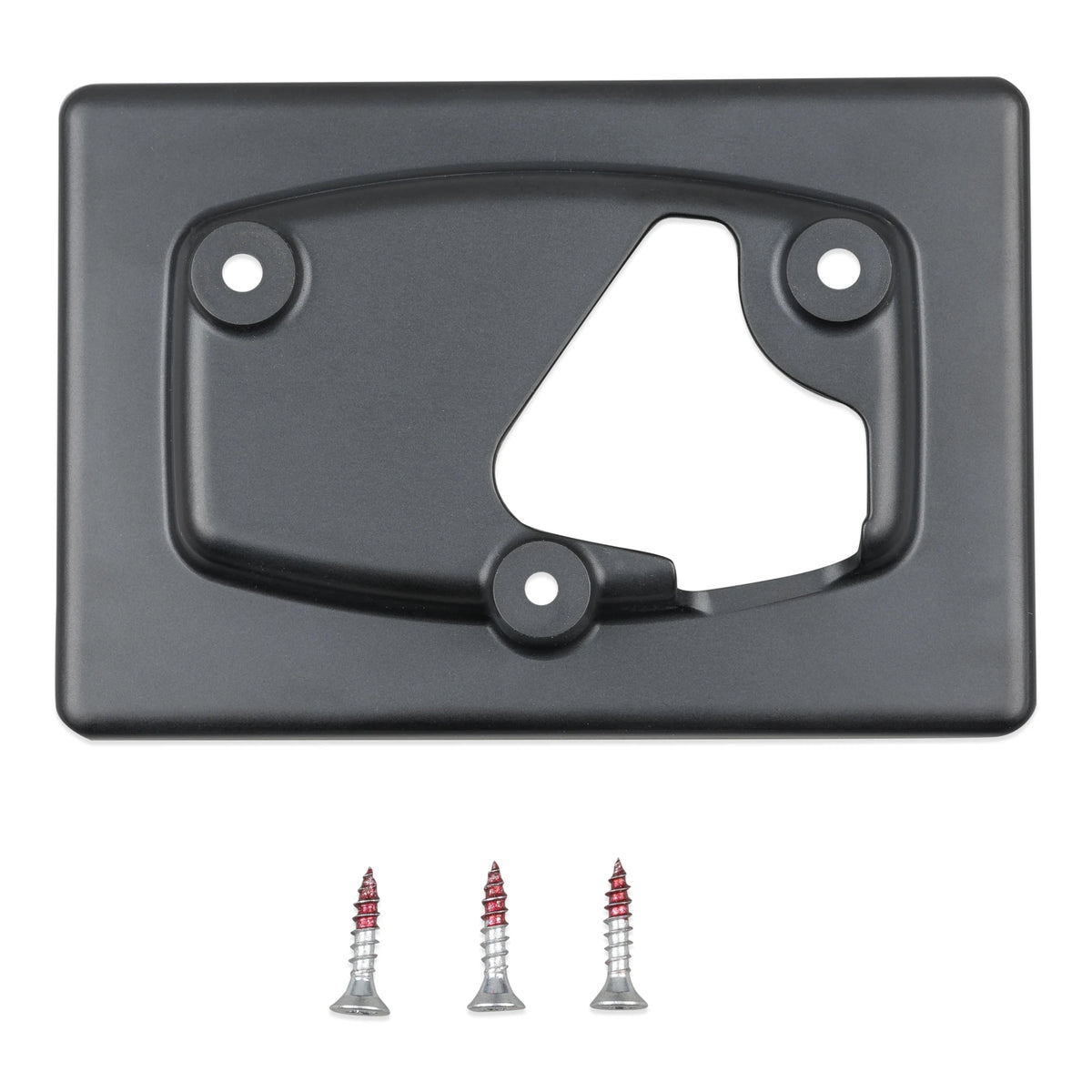

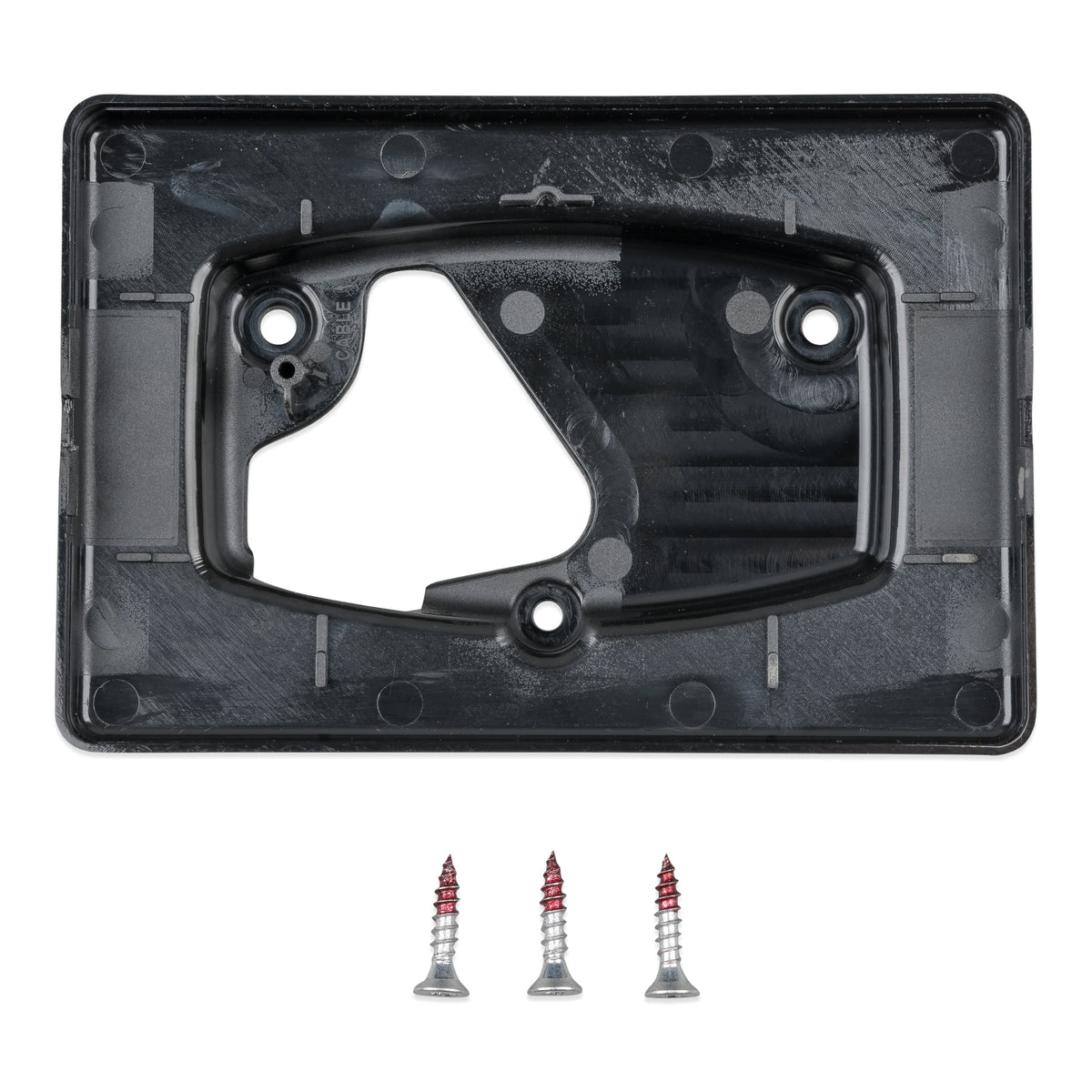

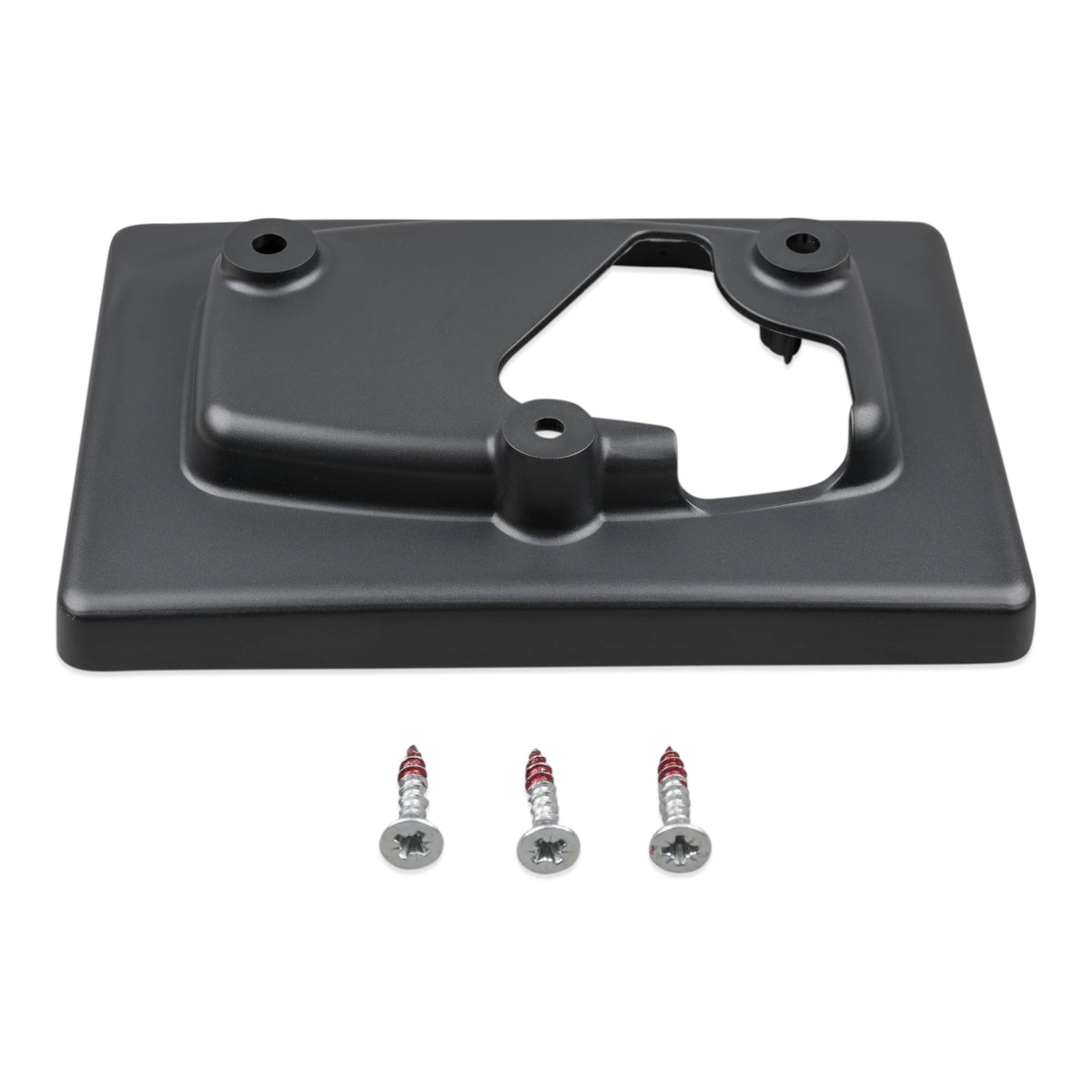

- Simple three-screw mounting arrangement
- Available for both GX Touch 50 and GX Touch 70 displays
- Purpose-built Victron fit and finish
This product is the wall-mount accessory only. Select the mount that matches your GX Touch 50 or GX Touch 70 display.
- RV and camper interior walls
- Marine electrical and navigation panels
- Off-grid power-system control areas
- Equipment cabinets and service vehicles
- Retrofit installations without a suitable panel cut-out
| Specification | GX Touch 50 Mount | GX Touch 70 Mount |
|---|---|---|
| Victron Part Number | BPP900465050 | BPP900465070 |
| Compatible Display | Standard GX Touch 50 | Standard GX Touch 70 |
| Mounting Style | Surface / wall mount | Surface / wall mount |
| Mounting Points | 3 screws | 3 screws |
| Dimensions (L × W × H) | 128.1 × 24.4 × 87mm (5.04 × 0.96 × 3.43in) |
176.2 × 25.4 × 113.2mm (6.94 × 1.00 × 4.46in) |
| Included | GX Touch 50 wall mount | GX Touch 70 wall mount |
| Display Included | No | No |
| Warranty | 5 years | 5 years |
Specifications are believed to be accurate at the time of publication but may change without notice. Confirm your GX Touch model before ordering because the 50 and 70 wall mounts are not interchangeable.
Does the wall mount include a GX Touch display?
No. This listing is for the wall-mount accessory only. The GX Touch display and Cerbo GX are sold separately.
Do I need to cut a large opening in the wall?

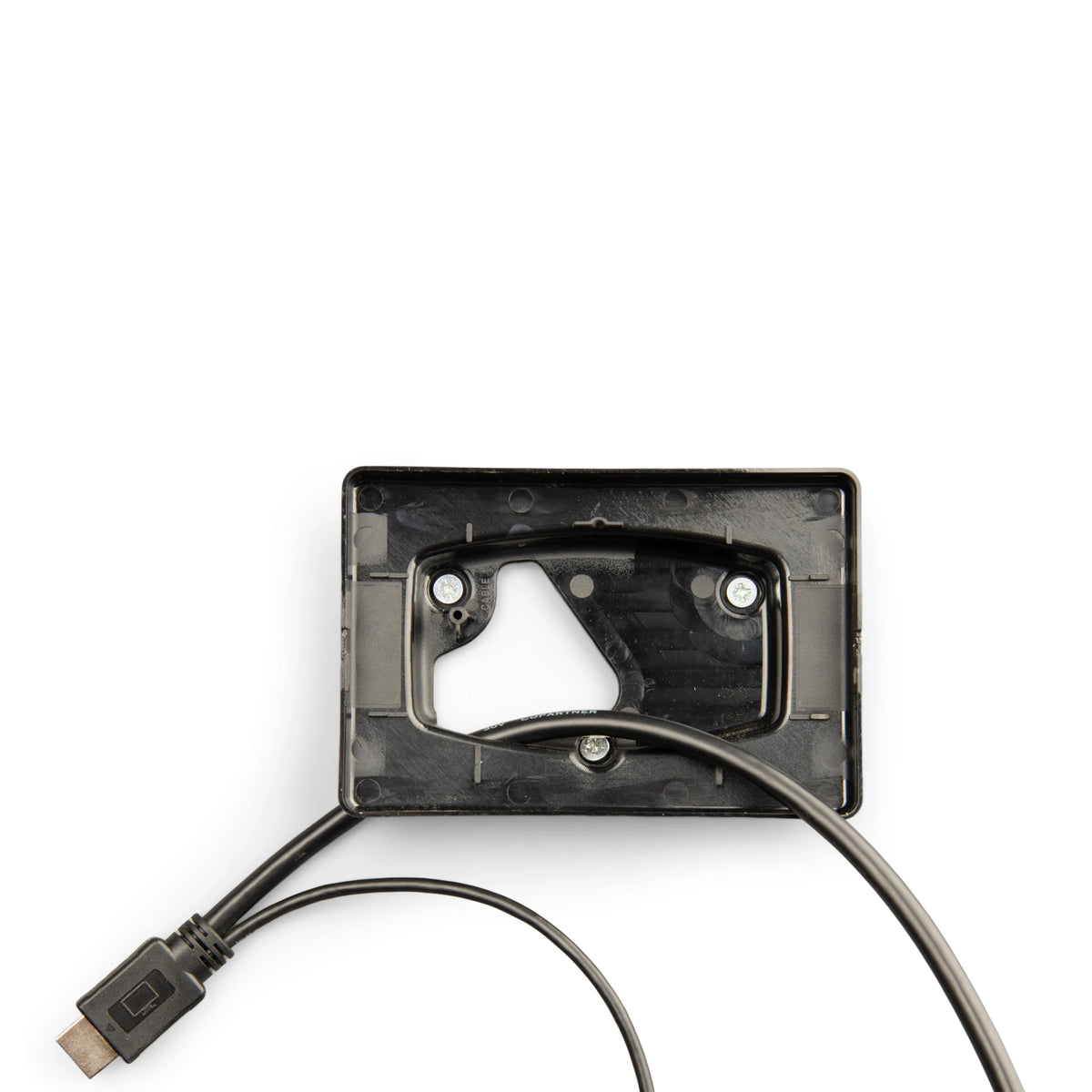

No large display cut-out is required. The mount attaches using three screws and provides space for routing the GX Touch connection cable. The exact cable route depends on the installation surface and whether the wiring will run behind or along the wall.
Will this fit a GX Touch Flush display?
No. These wall mounts are designed for the standard GX Touch 50 and GX Touch 70. The separate GX Touch Flush models use a different housing and mounting system.
Can you special order Victron products that aren’t listed?
Yes! We can special order many Victron Energy products that are not currently listed on our website. Contact us with the product name or part number, and we’ll confirm availability, pricing and estimated lead time.
