Roof Tech
RT Mini II Roof Mount
RT Mini II Roof Mount
Couldn't load pickup availability

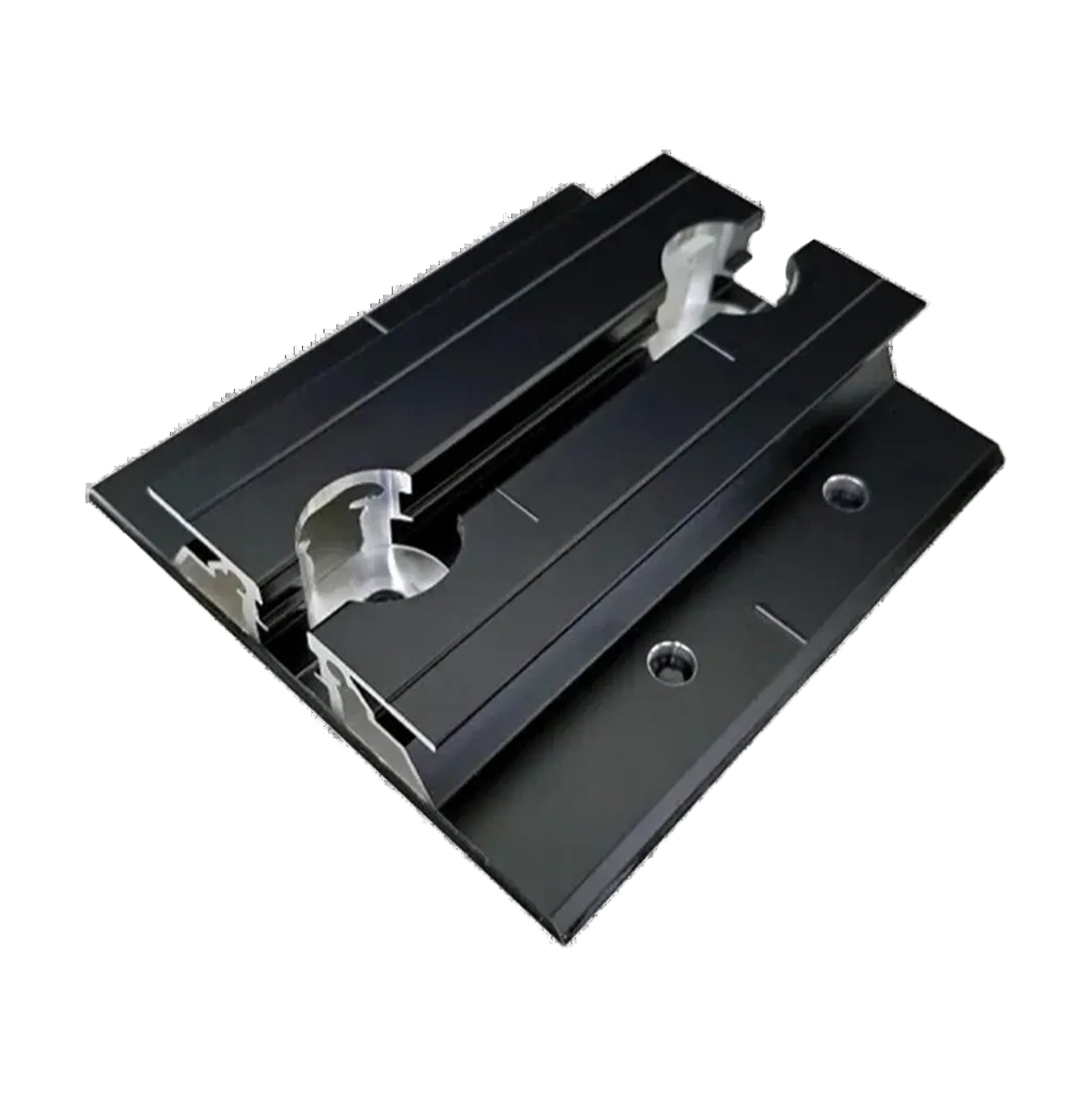

The Roof Tech RT-Mini II is a low-profile, self-flashing solar roof mount designed for fast, clean, and reliable installs on both asphalt shingle and metal roofs. Using Roof Tech’s proven AlphaSeal™ butyl flashing, it creates a waterproof seal without traditional metal flashing, while also giving installers the flexibility to mount to rafters or to roof decking depending on layout and attachment needs.
Compatible with the Kinetic L-Bracket and Rapid Rail system, the RT-Mini II helps create a clean, professional mounting setup with more flexible spacing options and simpler installation planning.
- Self-flashing design — no separate metal flashing required
- Works on shingle and metal roofs — versatile for a wide range of installs
- Rafter or decking attachment options — more flexibility for mount placement and rail layout
- Fast, installer-friendly setup — helps simplify rooftop mounting
- Waterproof seal — AlphaSeal™ butyl comes pre-installed on the base
- Compatible with Kinetic racking — pairs with Kinetic L-Brackets and Rapid Rail

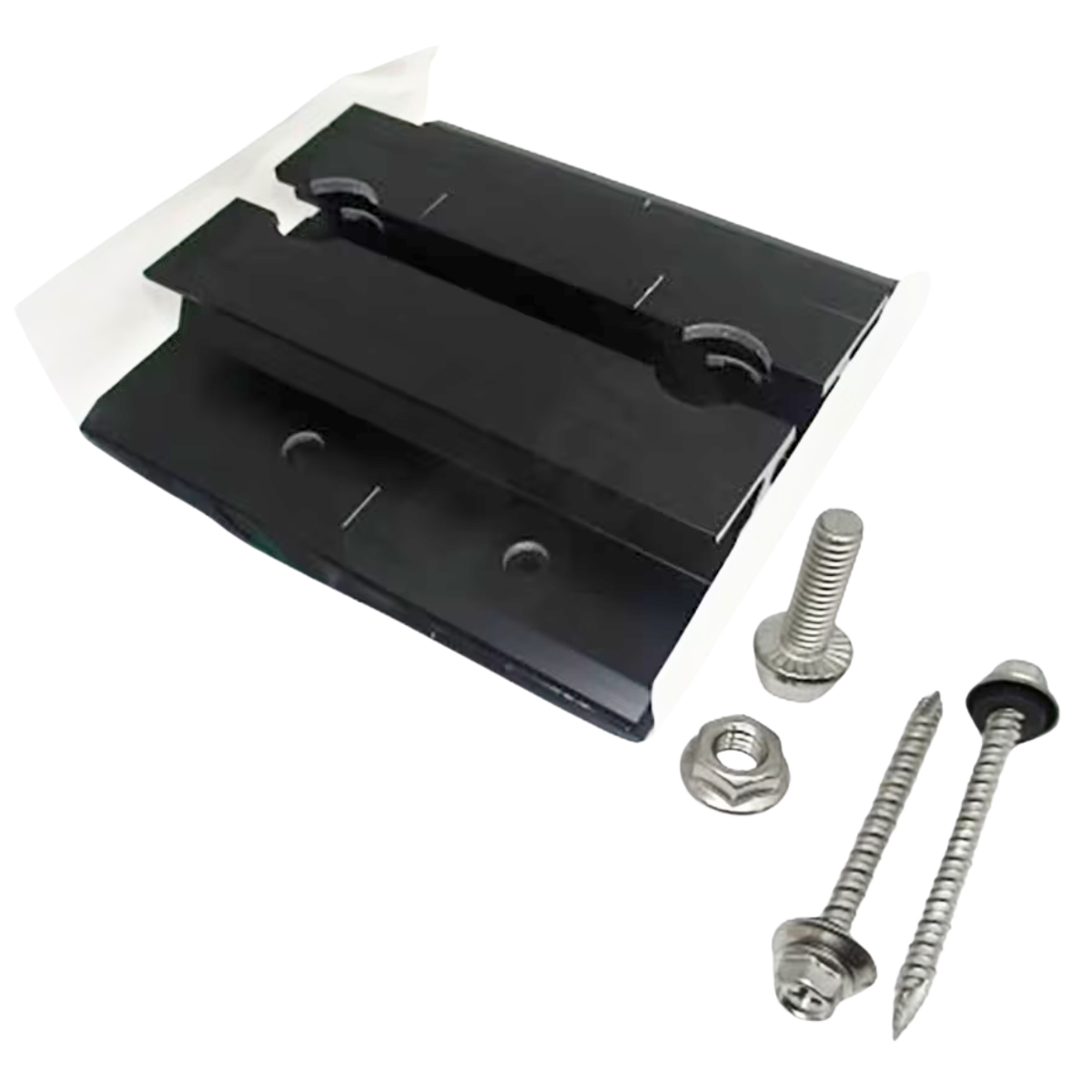

- 1 × RT-Mini II base with AlphaSeal™ butyl pre-installed
- 1 × bolt
- 1 × nut
- 2 × screws for rafter installation
For decking installs or combination rafter + decking installs, you will need 4 additional 5×60mm wood screws per mount (not included).
- Rail-based rooftop solar systems on asphalt shingle or metal roofs
- Installations where flexible mount spacing is useful for rail alignment
- Projects using Kinetic racking with L-brackets and Rapid Rail

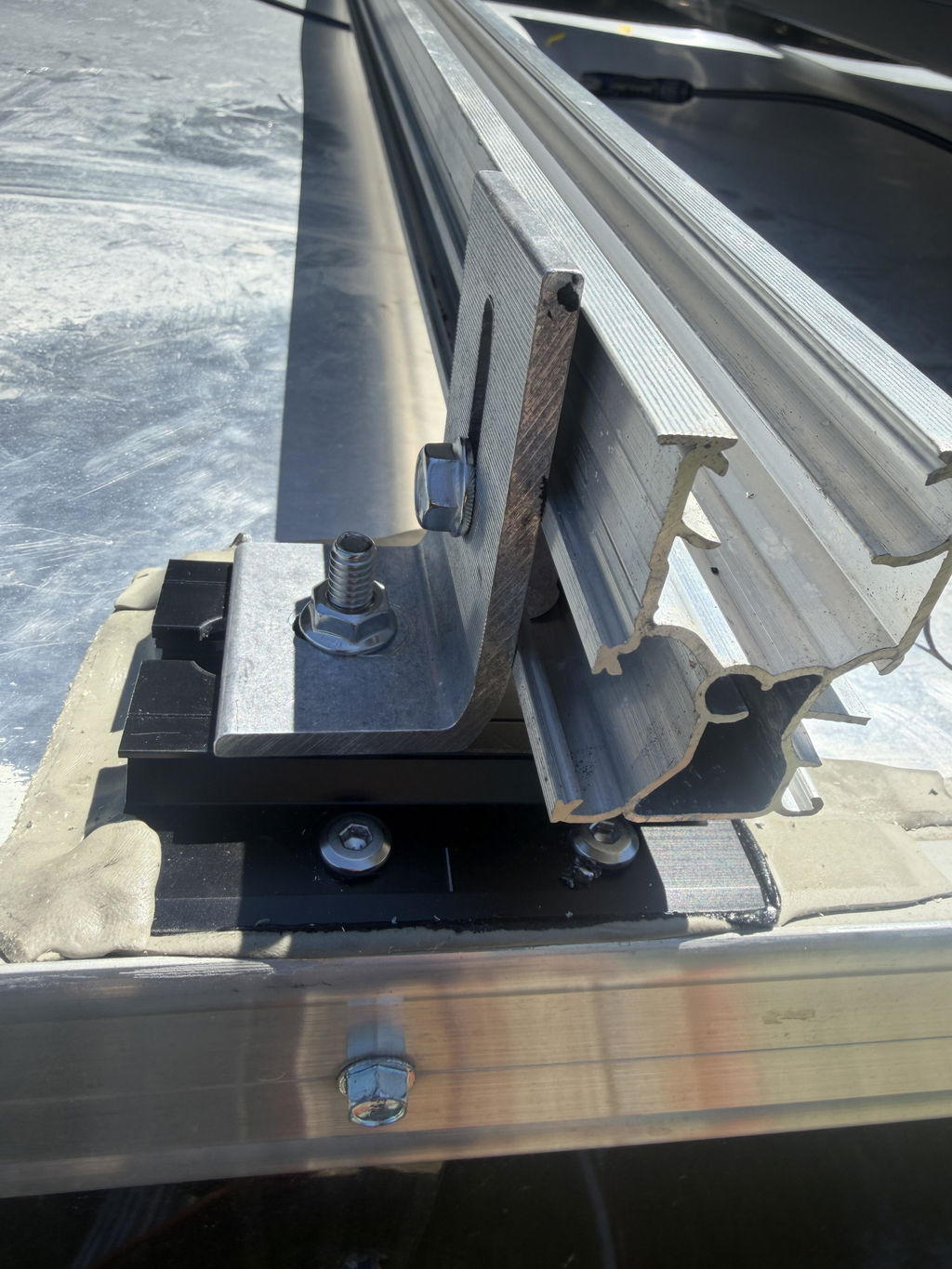

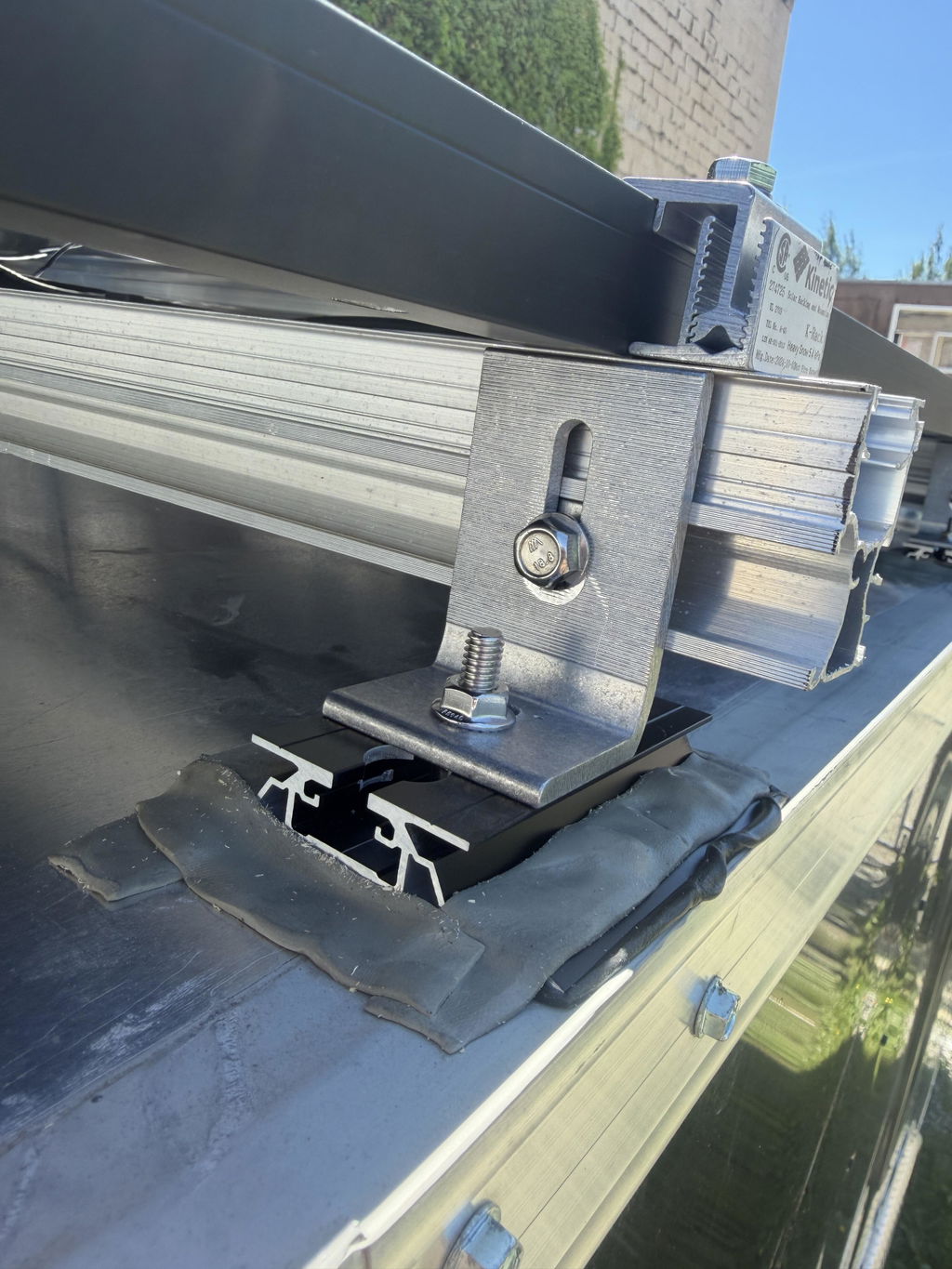

The RT-Mini II is fully compatible with the Kinetic L-Bracket and Rapid Rail system for a clean, integrated mounting solution.
For a typical rail-based install, you will generally need 1 × RT-Mini II and 1 × L-Bracket for each mounting foot location.
From there, installers will usually add Rapid Rail, plus the appropriate mid clamps, end clamps, and any required attachment screws depending on whether the install is going into rafters, decking, or a combination of both.
| Model | RT-Mini II |
| Mount Type | Self-Flashing Roof Mount |
| Compatible Roof Types | Asphalt Shingle, Metal |
| Compatibility | Kinetic L-Brackets, Rapid Rail, and standard rail-based systems |
| Waterproofing | AlphaSeal™ Butyl Flashing |
| Installation Options | Rafter, Decking, or Combination |
| Included Hardware | 1 Base, 1 Bolt, 1 Nut, 2 Screws |
| Extra Hardware Needed for Decking | 4 × 5×60mm Wood Screws per Mount |
Stamped PE letters are available in at least 5 provinces for supported projects. Check the manufacturer documentation or contact us before ordering if your install requires engineered paperwork.
Do I need extra screws?
Yes & No. We recommend getting extra screws just in case you miss the rafter.
For decking installs or combination rafter + decking installs, you will need 4 additional 5×60mm wood screws per mount. You can find them here: Roof-Tech SD5-60 5×60mm Wood Screws.
Can this be installed to rafters or to roof decking?
Yes. One of the big advantages of the RT-Mini II is that it can be installed into rafters or into roof decking, giving installers more flexibility for mount spacing and rail layout.
This also allows flexibility when mistakes are made and you miss the rafter with your screw. Instead of removing the screw (leaving a hole), simply drive the additional screws into the decking and continue installing.
What rail systems does this work with?
Pretty much any rail system is compatible. We recommend the Kinetic Rapid Rail system.
The RT-Mini II is fully compatible with the Kinetic L-Bracket Kit and Rapid Rail, making it a strong fit for Kinetic-based rail installs
Do I need separate flashing?
No. The RT-Mini II uses Roof Tech’s AlphaSeal™ self-flashing butyl base, so separate traditional metal flashing is not required.
