MC4 Solar Crimp Tool Kit – PV Connector Assembly Kit

MC4 Solar Crimp Tool Kit – PV Connector Assembly Kit

$26.79 CAD
$29.00 CAD $26.79 CAD
Sale Sold out
MC4 Solar Crimp Tool Kit – PV Connector Assembly Kit

This MC4 solar crimp tool kit includes the essential tools needed to assemble professional-quality MC4 solar connectors. Designed for PV installers, DIY solar builders, and off-grid systems, the ratcheting crimp tool produces consistent, secure crimps for reliable electrical connection.

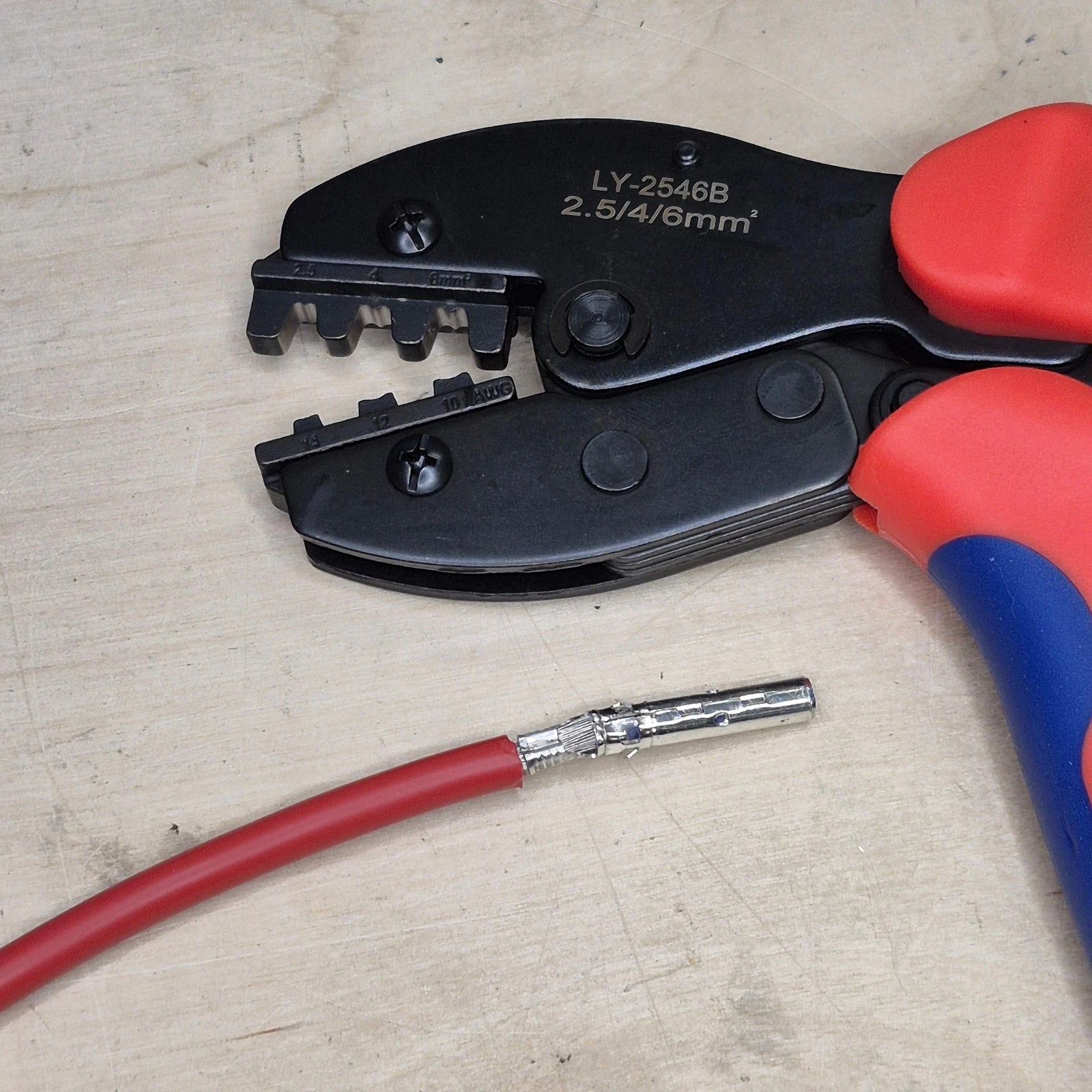

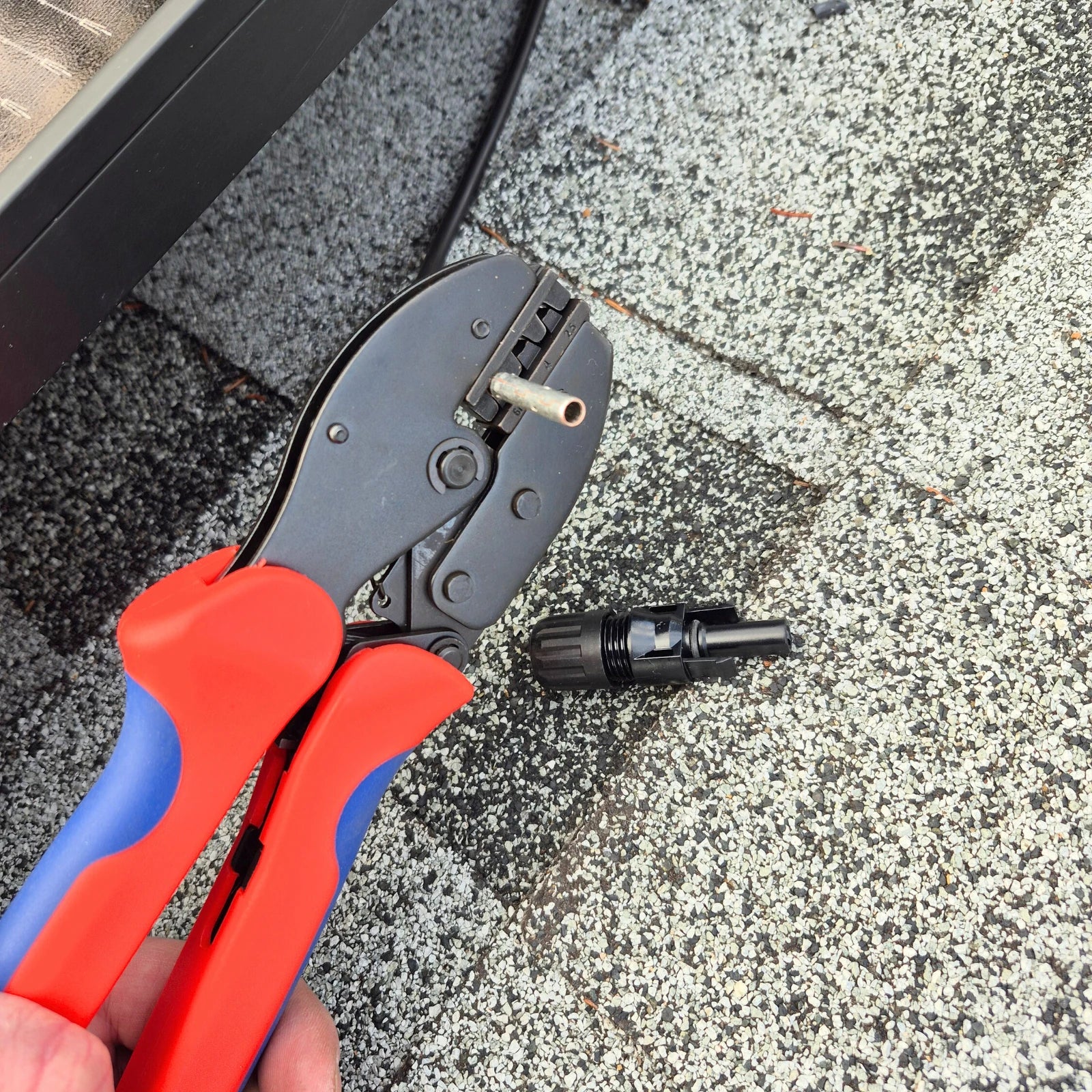

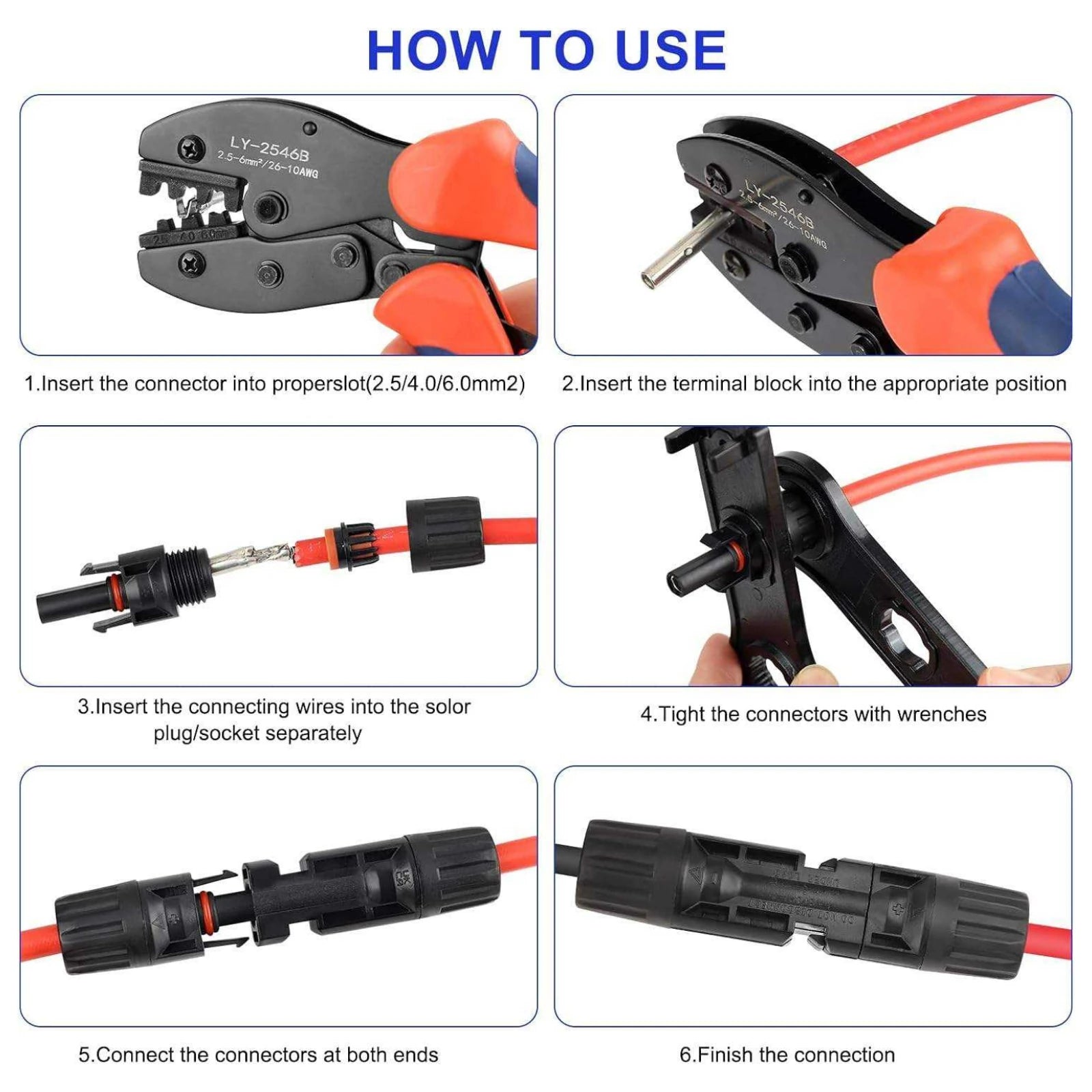

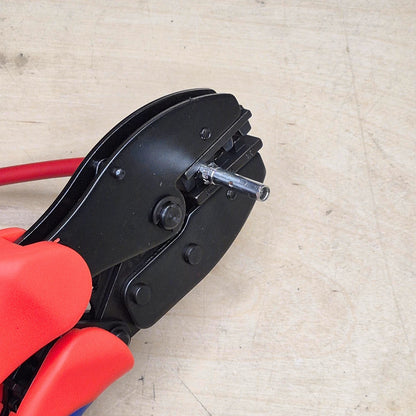

MC4 connectors are attached to solar cable by crimping a metal pin/sleeve onto the conductor, creating a durable low-resistance connection for photovoltaic systems. This kit provides the tools needed to perform those crimps properly and assemble connectors quickly and safely.

Compatible with our authentic Stäubli MC4 connectors and most weatherproof MC4 connector setsMC4-style generic connectors.

Features

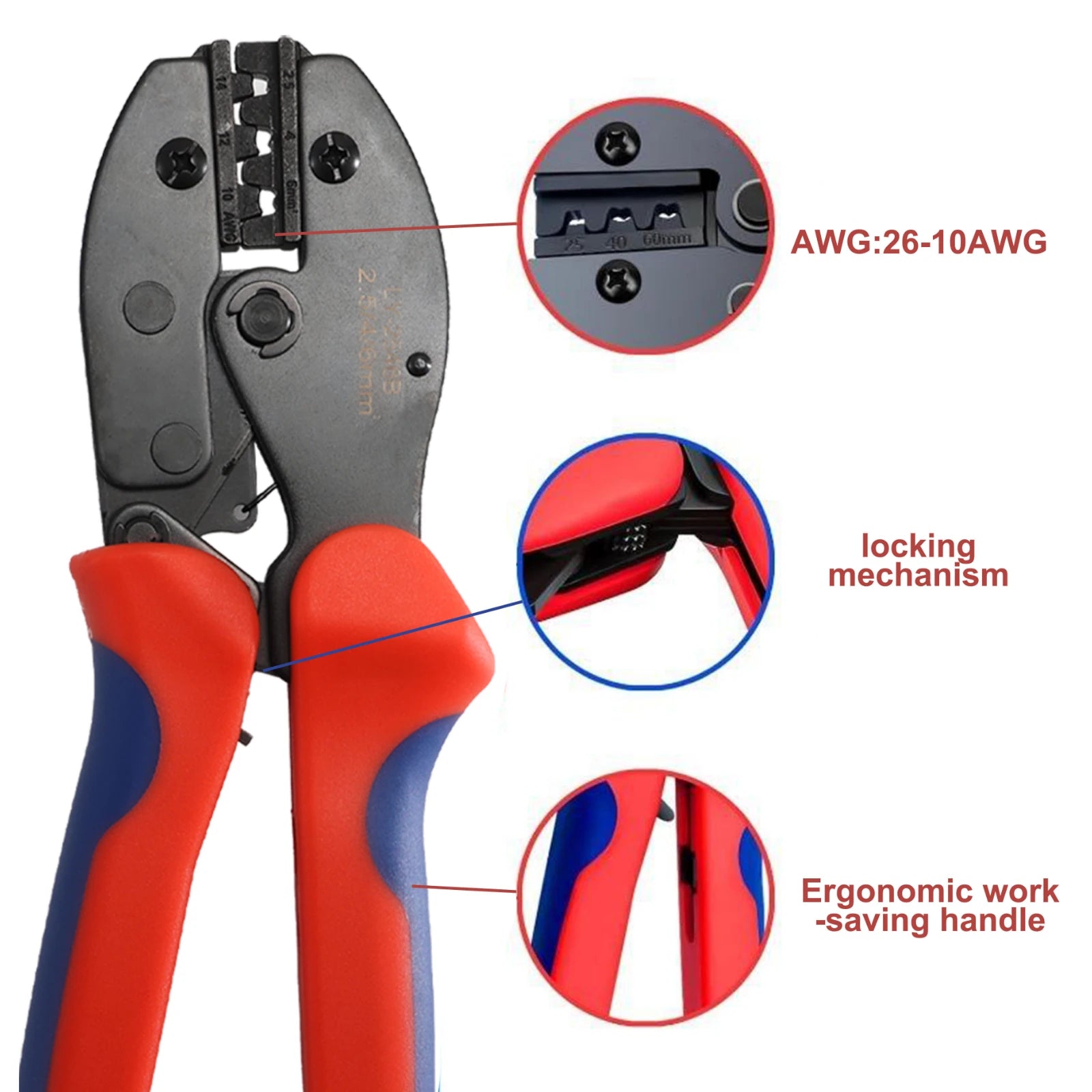

  • Ratcheting crimp mechanism ensures complete, consistent crimps
  • Precision dies designed for MC4 solar connector terminals
  • Compatible with 4mm² and 6mm² PV cable (10–12 AWG typical solar wire)
  • Heavy-duty hardened steel construction
  • Comfortable ergonomic handles for extended use
  • Includes tools for connector assembly and removal

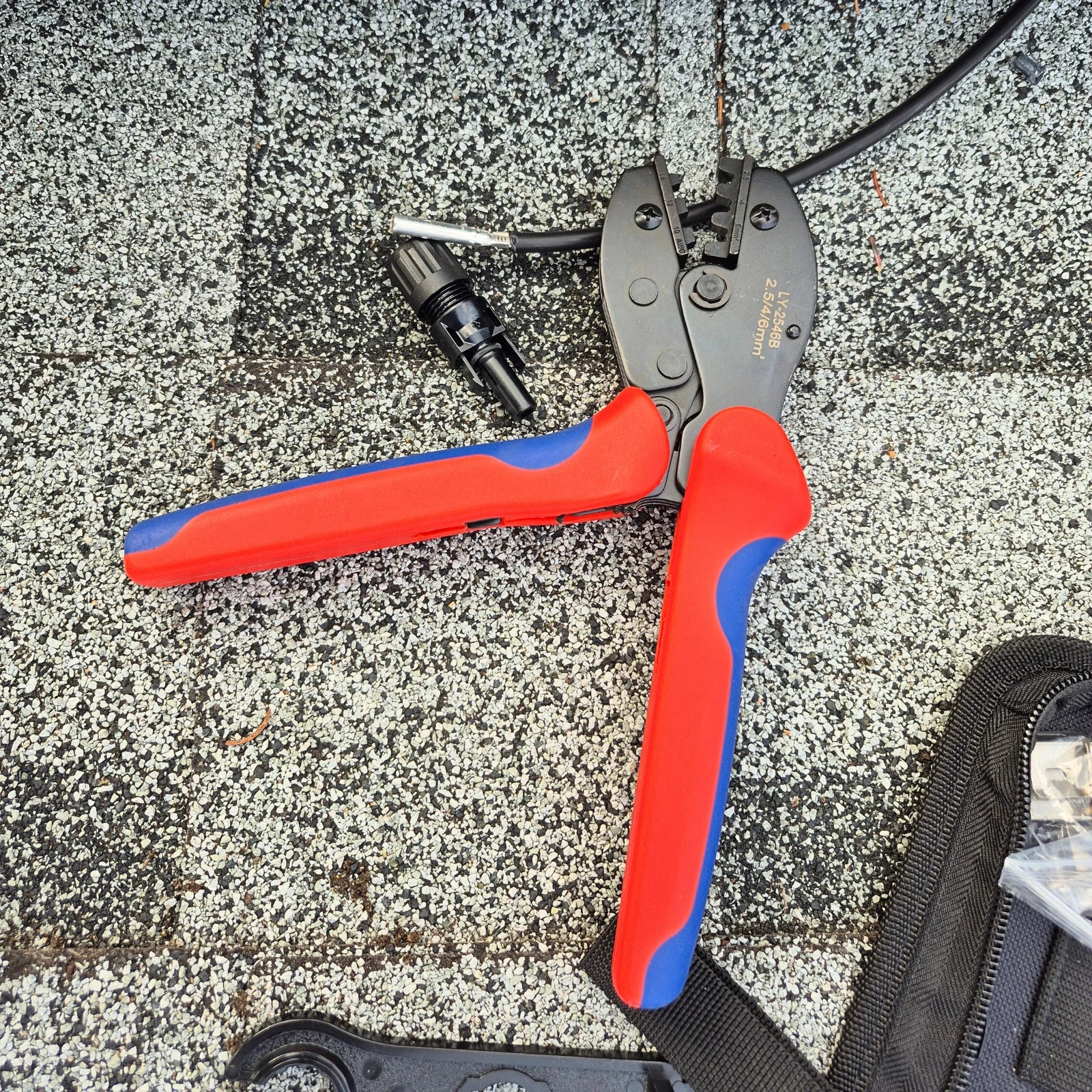

  • Ideal for solar panel installations, off-grid systems, and DIY solar wiring

Build custom solar cables

With the right connectors and crimp tool, you can create custom solar panel extension cables, panel-to-panel jumpers, and charge controller wiring for your system.

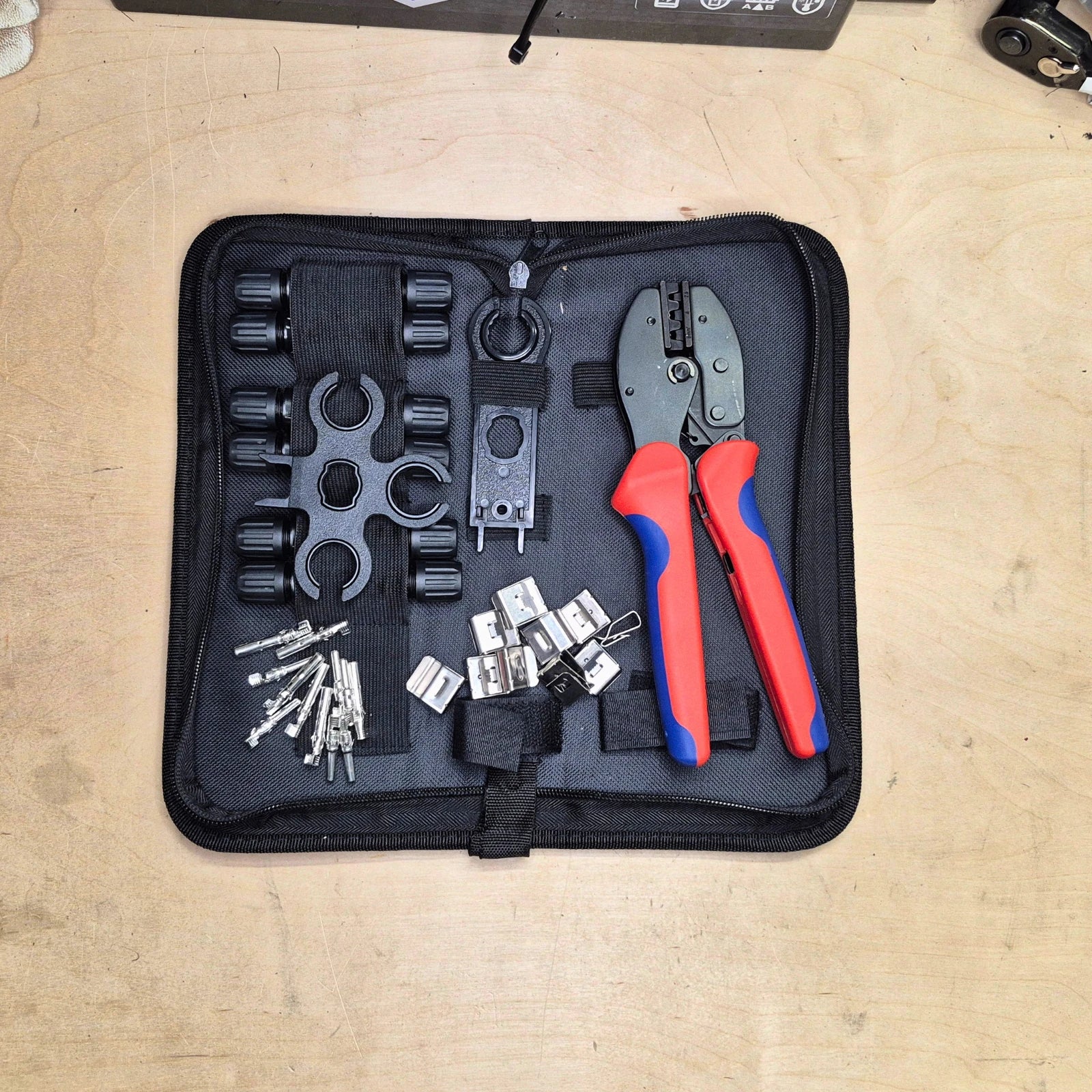

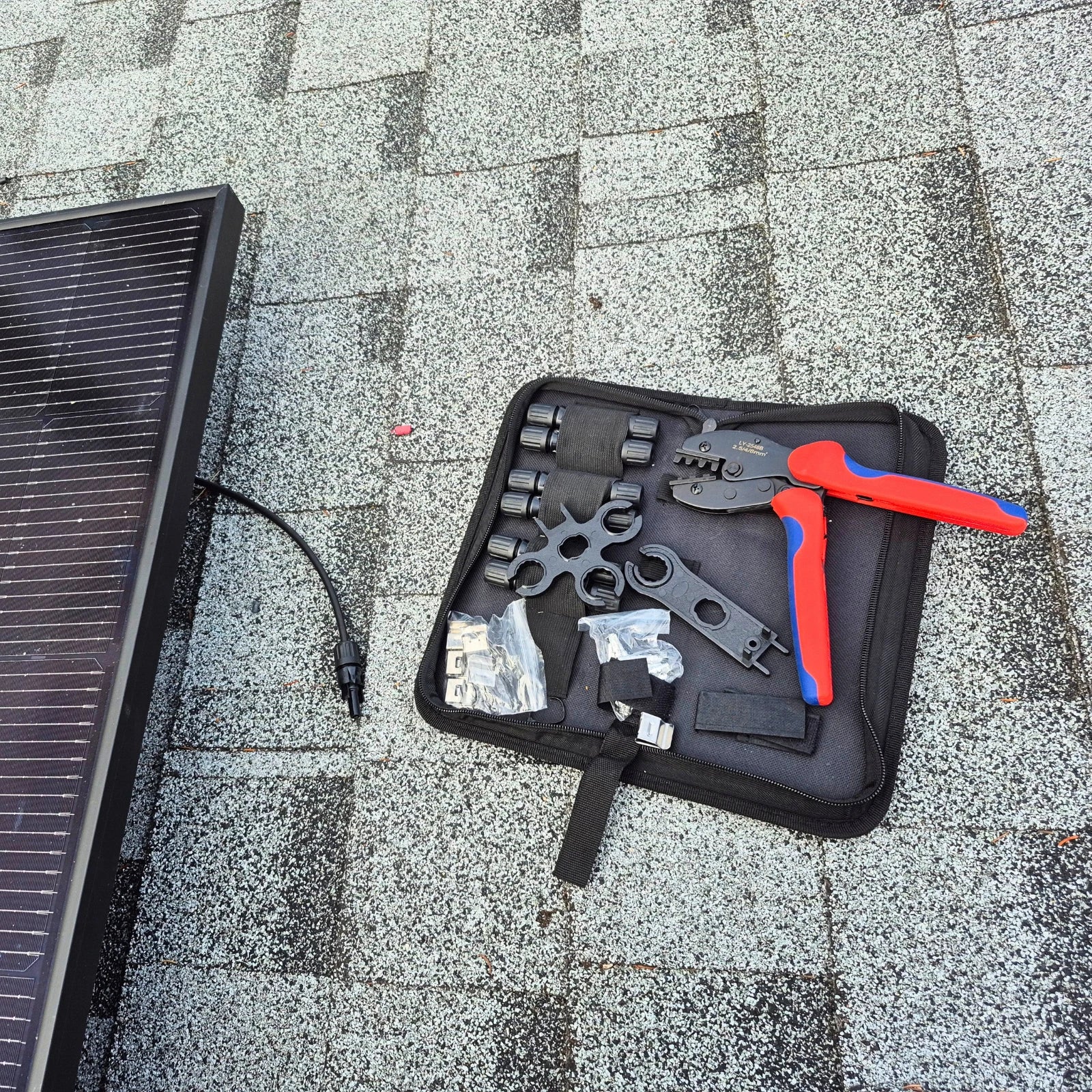

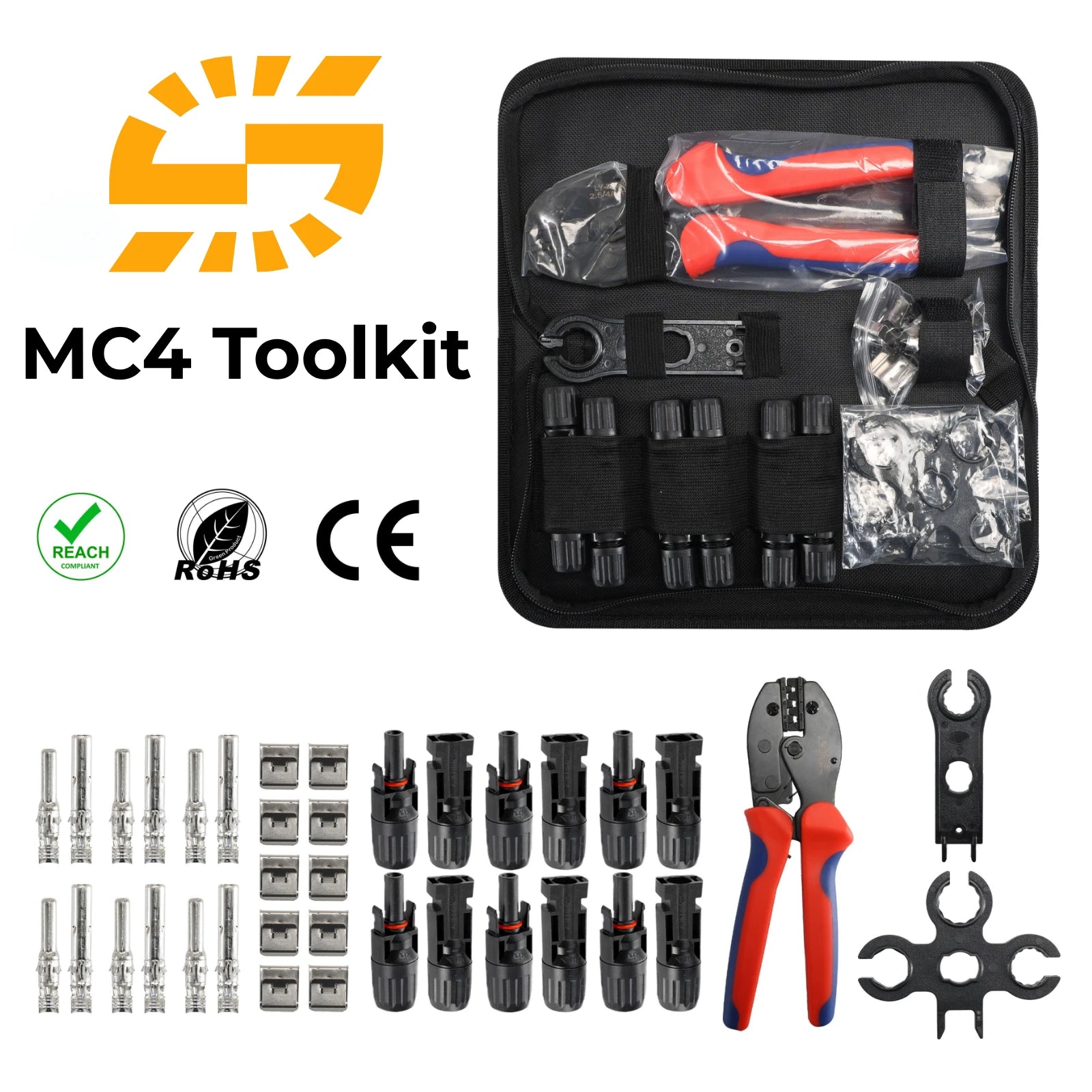

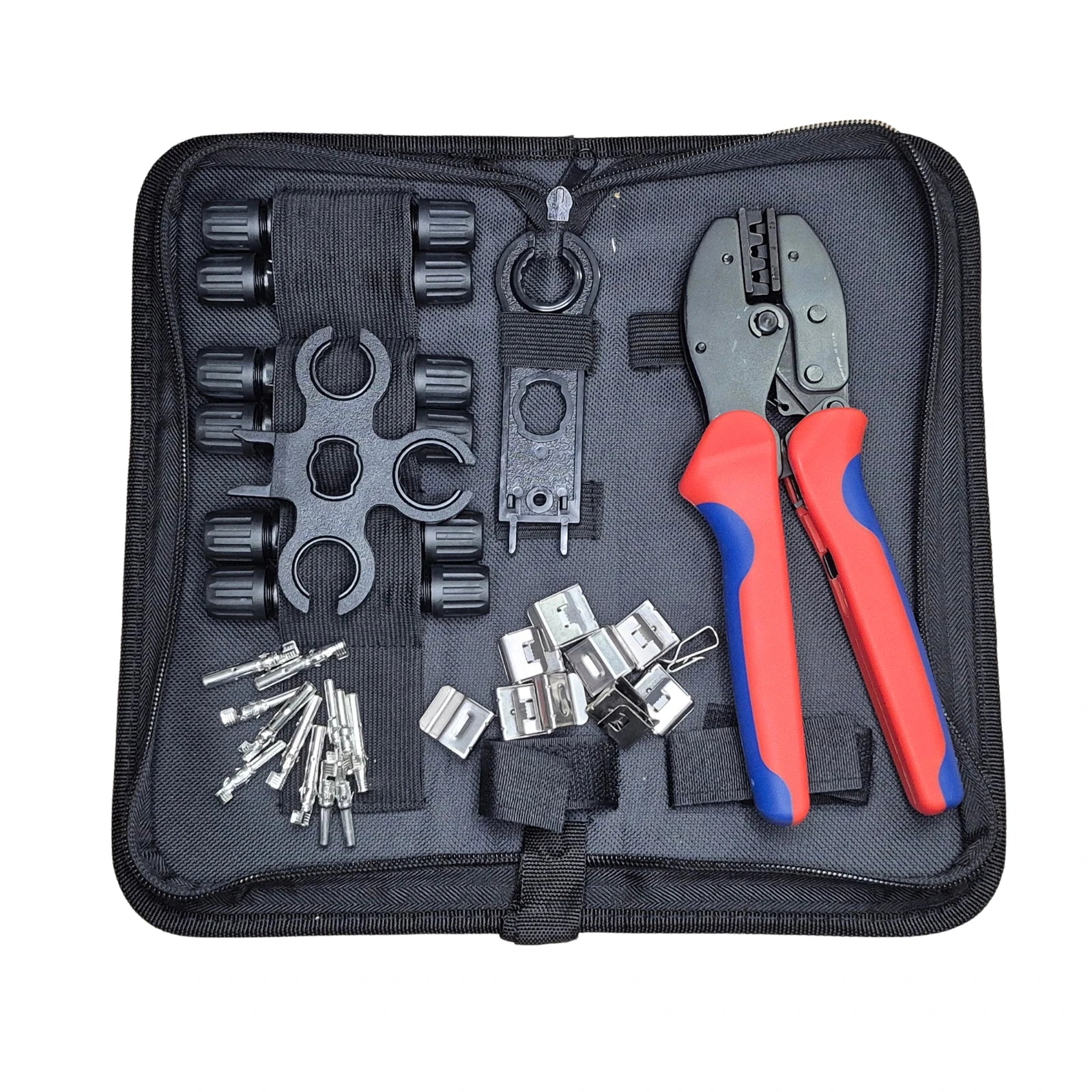

What's Included

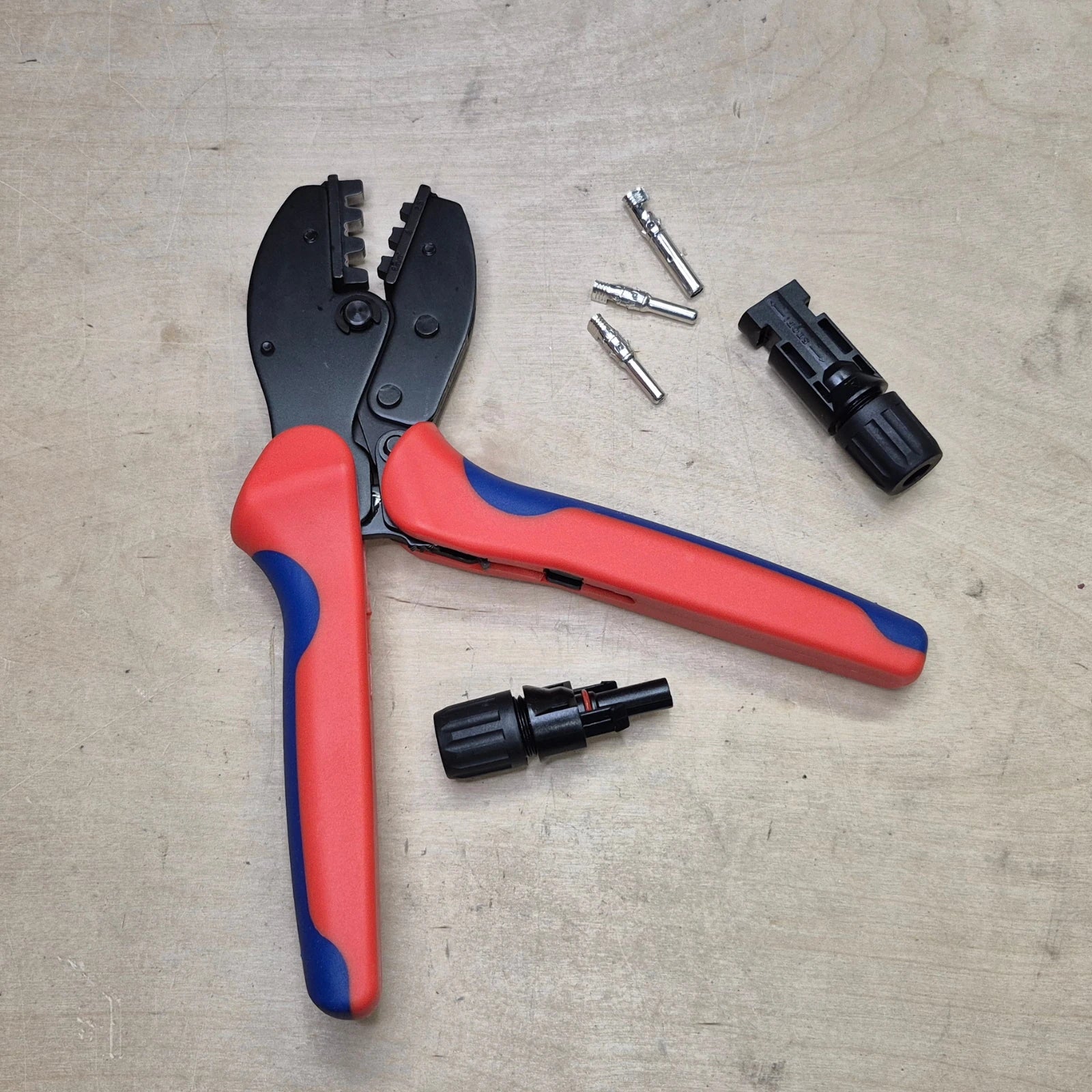

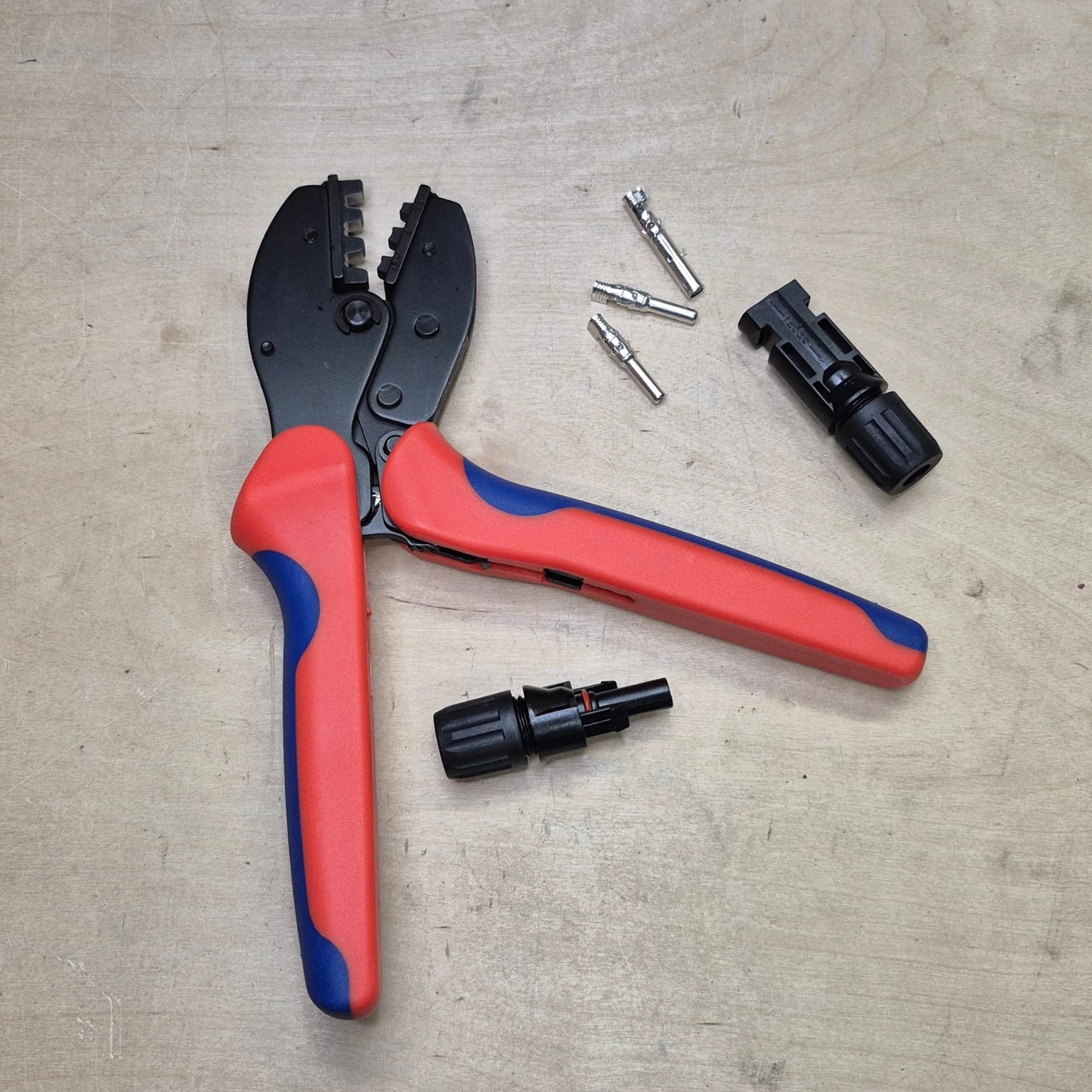

  • MC4 ratcheting crimp tool

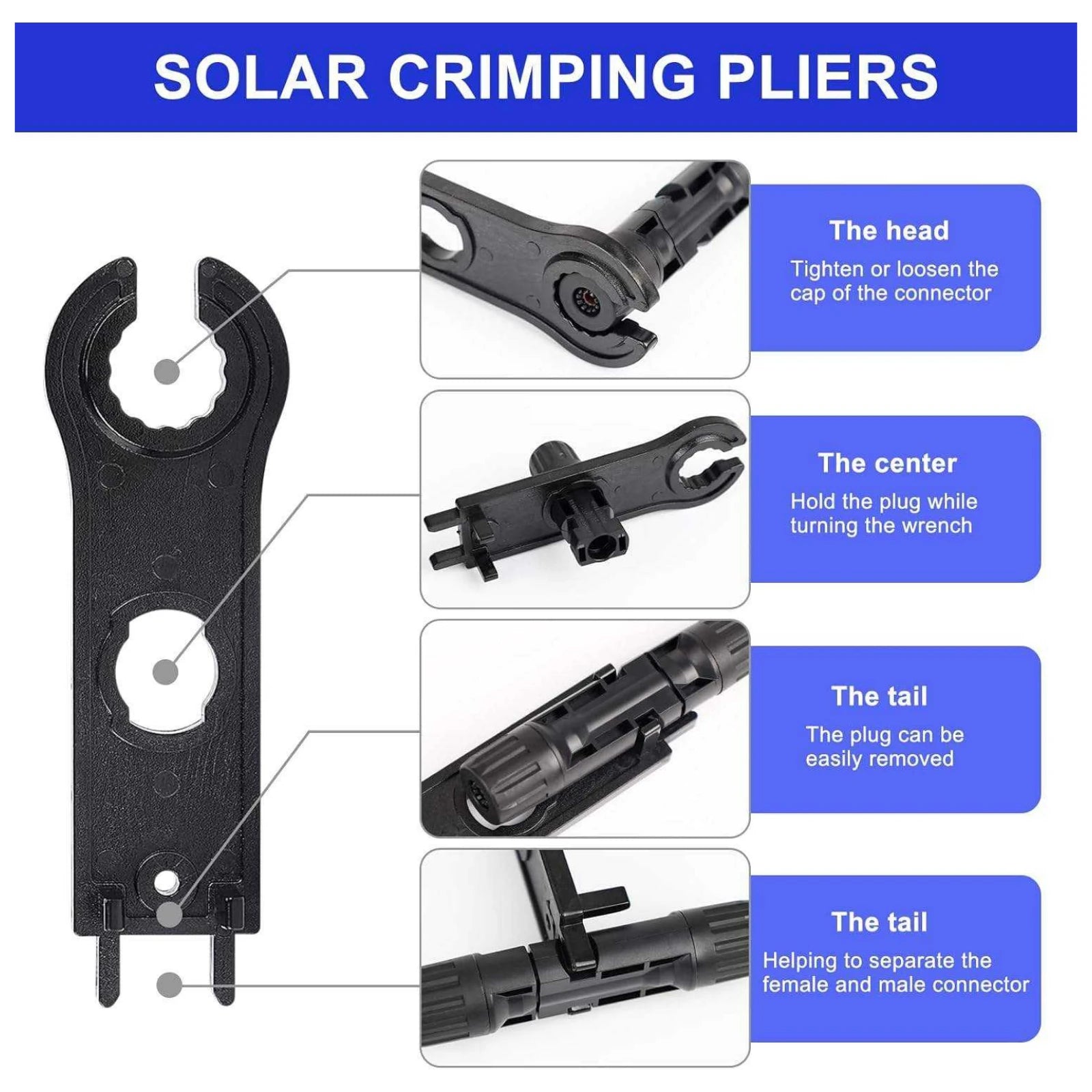

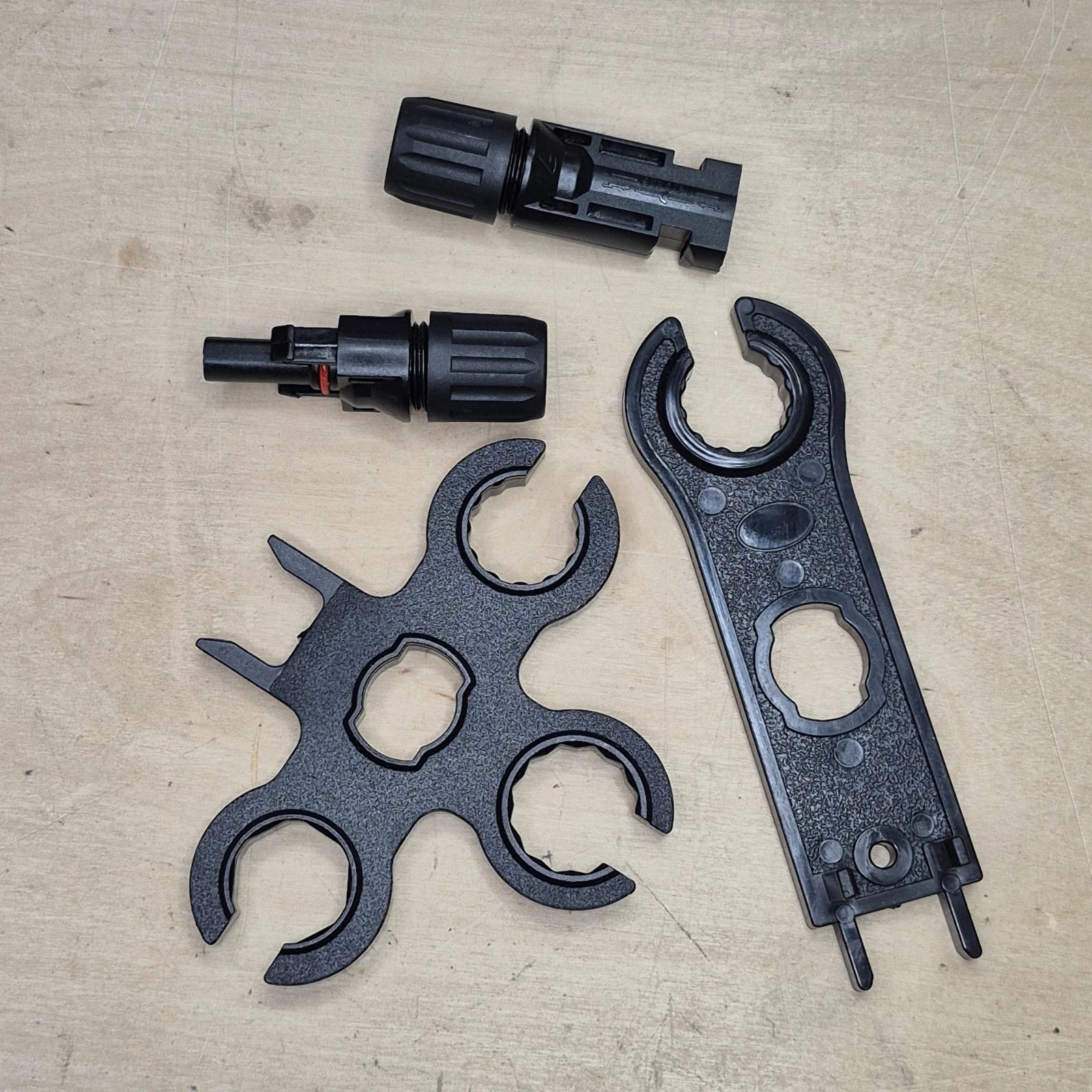

  • MC4 connector wrenches (2)
  • Generic MC4 Connectors (6 sets)
  • PV Cable Clips (10)
  • Reinforced Nylon storage case
Specifications
Tool Type MC4 solar connector crimp tool
Crimp Range
(Typical Wire Sizes)		 2.5mm² / 4mm² / 6mm² PV cable
(10–14 AWG solar cable)
Connector Compatibility MC4 connectors (Stäubli & compatible generics)
Mechanism Ratcheting crimp system
Construction Hardened steel frame with ergonomic grips
Storage Protective carry case

Need MC4 connectors?

This tool kit is designed for assembling MC4 connectors onto solar cable. Pair it with our connector sets to build custom solar cables for panels, batteries, and charge controllers.

Weatherproof MC4 Connector Pair Genuine Stäubli MC4 Connector Pair
Frequently Asked
Do MC4 connectors need a special crimp tool?

YES - MC4 connectors use a metal contact that must be crimped using the correct tools onto the solar cable conductor. A proper crimp creates a secure mechanical bond and a low-resistance electrical connection for reliable solar system performance.

Incorrect tools may appear to work, but risk poor connection with high heat.  This can lead to melting/damaged connections, and in extreme cases, fire.

Will this work with the MC4 connectors sold by Sapphire Energy?

Yes. This tool kit works with both the weatherproof MC4 connector sets and the genuine Stäubli MC4 connectors that we carry.

It also works with almost every other brand/type of MC4 connector on the market.

What wire sizes does this tool support?

This crimp tool is designed for common solar cable sizes including 2.5mm², 4mm², and 6mm² PV wire (roughly 14–10 AWG).

Do I need a ratcheting crimp tool?

Ratcheting crimp tools ensure the crimp cycle is completed before the tool releases. This helps produce consistent crimps and reduces the risk of loose electrical connections.

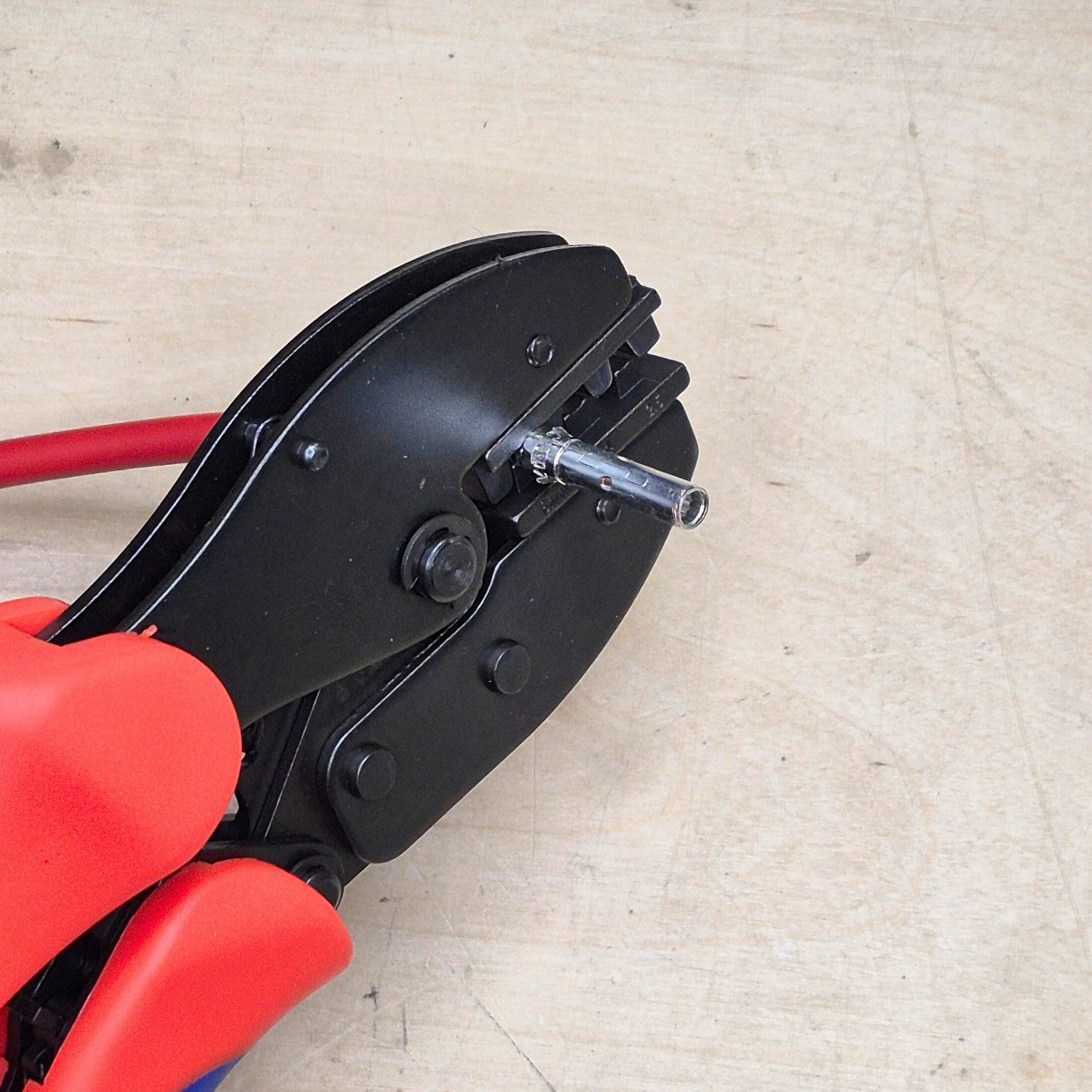

It also helps by holding the pin in place while you insert the conductor, before completing the crimp action.
