AIMS POWER
AIMS Power 1500W 24V DC to 120V AC Inverter
AIMS Power 1500W 24V DC to 120V AC Inverter
Couldn't load pickup availability

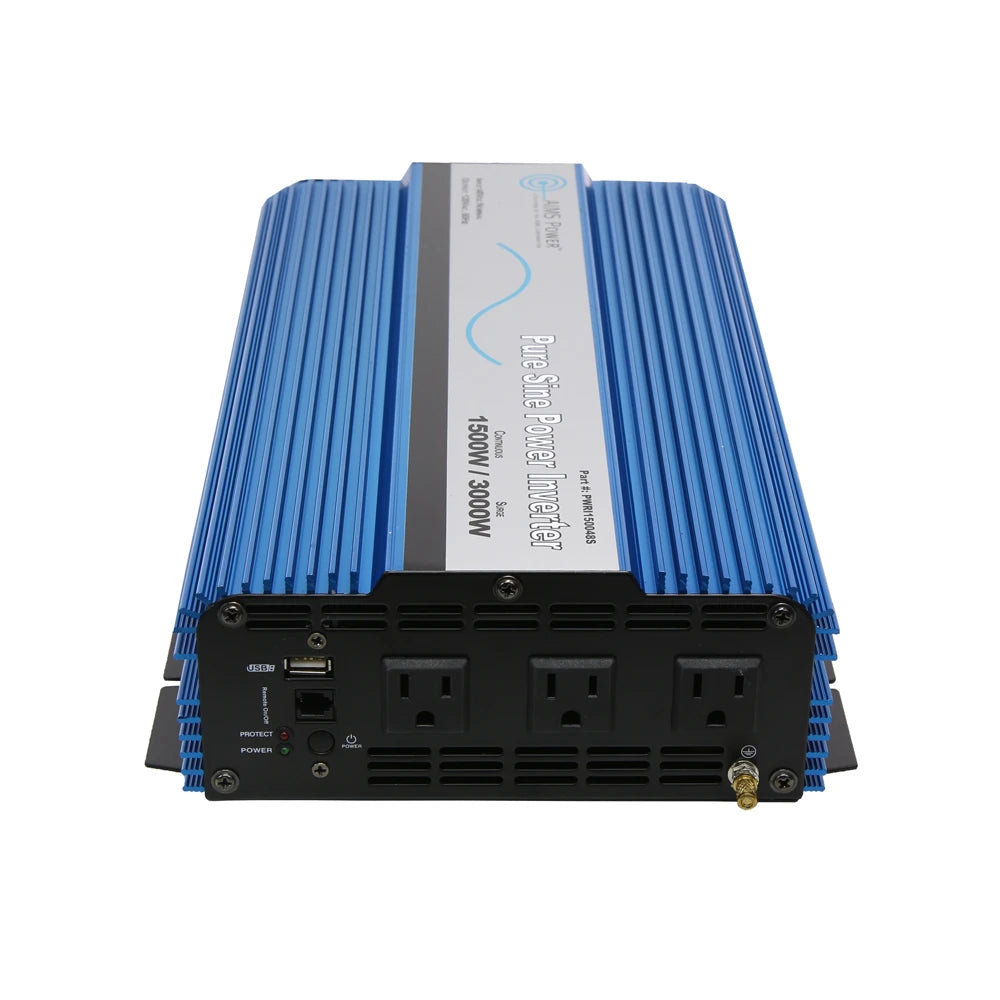

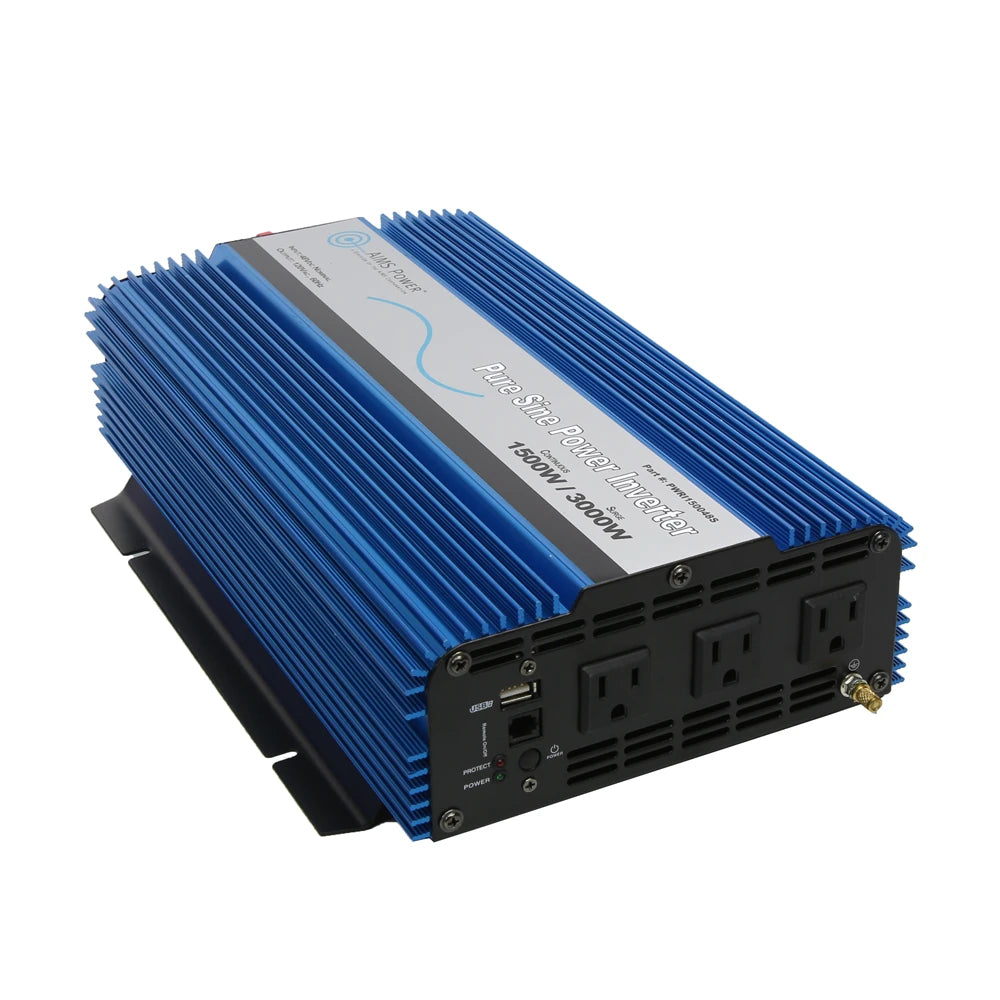

AIMS Power 1500W 24V DC → 120V AC Inverter
Turn your 24V battery bank into dependable household AC power for vans, RVs, cabins, marine, and backup systems. Solid continuous output with generous surge capacity, clean sine wave output, and thermally controlled cooling for quieter operation.
Why You’ll Love It
- Pure sine wave, 60 Hz (THD ≤ 3%) for sensitive electronics.
- Thermally controlled cooling fans for quieter operation.
- 1500W continuous / 3000W surge for reliable startup headroom.
- Low no-load draw (~0.7A) helps conserve your battery bank.
- Remote port for optional on/off control.
- 1-year warranty and AIMS technical support.
A 1500W inverter can draw over 70 amps from a 24V battery system under load. Use properly sized cables, an ANL fuse matched to your wiring, and mount the inverter close to the battery bank to minimize voltage drop.
Technical Specifications
| Continuous Output Power | 1500 W |
| Surge Power | 3000 W |
| System Voltage | 24V DC |
| Input Voltage Range | 19–32V DC |
| AC Output | 120V AC, 60 Hz |
| AC Waveform | Pure Sine Wave (THD ≤ 3%) |
| Efficiency | 90% |
| No-Load Consumption | ~0.7A |
| USB Output | 5V DC, max 1A |
| Over-Voltage Shutdown | 32 ± 1V DC |
| Under-Voltage Shutdown | 19 ± 1V DC |
| Over-Temperature Protection | 149 ± 8°F |
| Over-Load Protection | 1700 W ± 200 W |
| Cooling | Thermally controlled fans |
| Working Temperature | 32–104°F |
| Storage Temperature | 14–113°F |
| Dimensions | 13.78 × 9.29 × 3.74 in |
| Weight | 9.9 lb |
| Remote Port | Yes (supports optional remote) |
| Warranty | 1-year warranty & free tech support |
Suggested Uses
- Running laptops, tablets, cameras, and small electronics in vans or RVs
- Powering microwaves (up to ~1000W), kettles, coffee makers, and other light appliances
- Charging cordless tool batteries while traveling or off-grid
- Running small AC tools like jigsaws, sanders, and rotary tools
- Powering household items during outages: lights, fans, routers, networking gear
- Operating CPAP machines and medical electronics (pure sine safe)
- Supporting off-grid cabins or tiny homes with clean 120V AC for essentials
Applications
Perfect for any 24V battery system, this inverter bridges your DC power to dependable 120V AC—ideal for portable or stationary power needs.
In a van or RV, it powers laptops, appliances, tools, and electronics. In off-grid cabins and tiny homes, it provides clean AC from your solar-charged battery bank. For marine systems, it offers a quiet, dependable replacement for shore power. It's also excellent for backup and emergency power.
Pair it with heavy-gauge wiring, an ANL fuse kit, and a battery disconnect switch for a complete, safe system.
