Victron Phoenix Inverter Remote On/Off Switch
Control your compatible Victron Phoenix inverter from a convenient location with this genuine Victron remote ON/OFF switch. It allows the inverter to be installed close to the battery while keeping everyday control within easy reach.

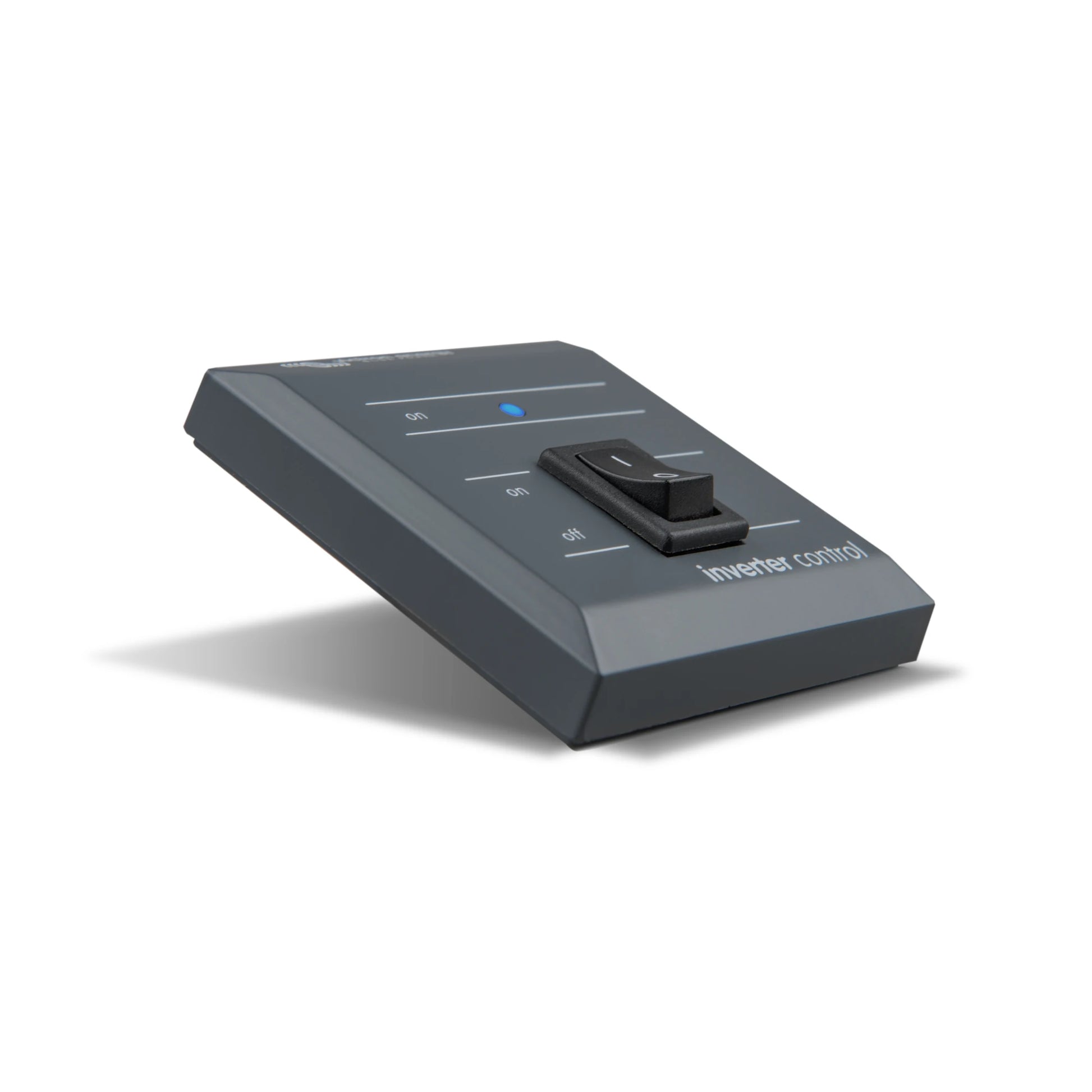

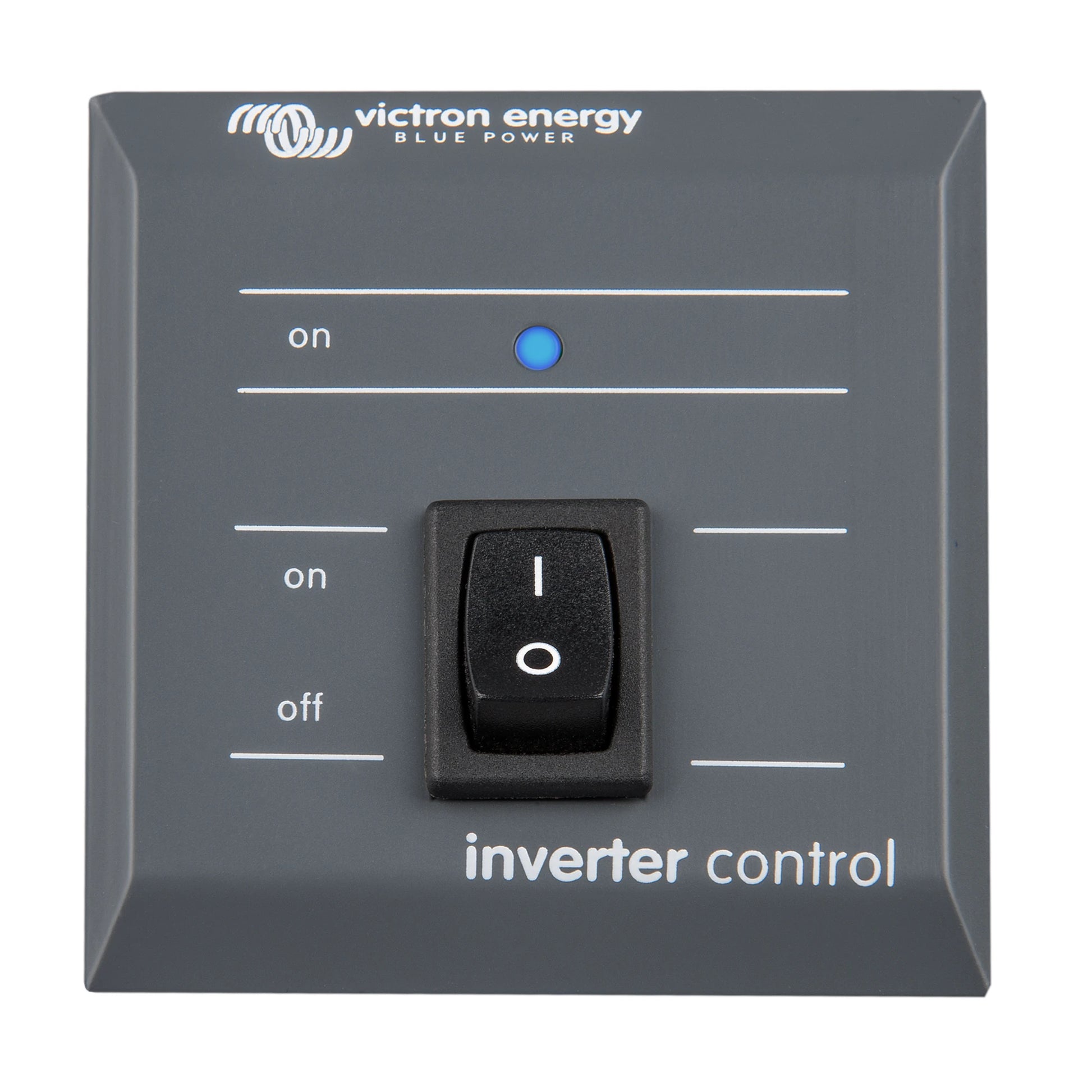

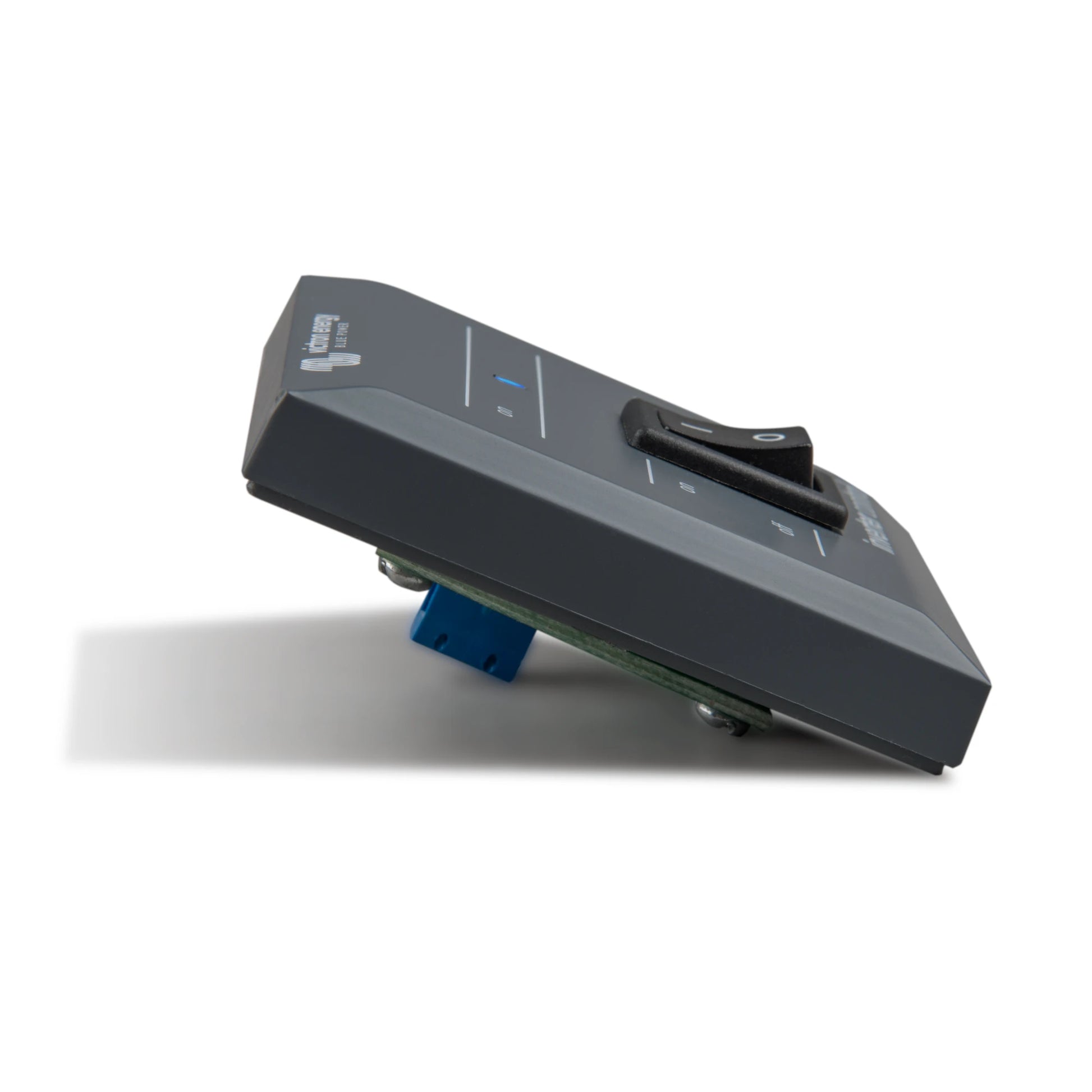

The compact control panel includes an easy-to-mount bracket and connects directly to the inverter’s dedicated two-wire remote terminals. No programming, Bluetooth connection or communications cable is required.
Why You’ll Love It
- Convenient remote inverter ON/OFF control
- Simple two-wire connection
- Easy-to-mount control panel and bracket
- Allows the inverter to be installed out of sight
- No Bluetooth, programming or network connection required
- Genuine Victron Energy accessory
Mount the inverter where short battery cables make the most sense, then install the remote switch somewhere convenient for everyday use.
Common Applications
- RVs and motorhomes
- Camper vans and truck campers
- Boats and marine electrical systems
- Off-grid cabins
- Service vehicles and mobile workshops
- Utility trailers and equipment installations
Specifications
| Victron Part Number | REC040010210R |
| Function | Remote inverter ON/OFF control |
| Compatible Inverters | Victron Phoenix VE.Direct inverter models |
| Connection | Two-wire remote control terminals |
| Recommended Control Wiring | 20 AWG or 22 AWG two-conductor wire |
| Overall Dimensions | 65 × 60 × 38mm |
| Installation | Panel or surface mounting with included bracket |
| Warranty | 5-year limited warranty |
Frequently Asked Questions
Which inverters is this remote switch compatible with?
This switch is intended for Victron Phoenix VE.Direct inverter models equipped with the dedicated two-wire remote ON/OFF connection. Despite the product family name, the switch does not connect through the inverter’s VE.Direct communications port.
Unsure whether it will work with your inverter? Contact Us before ordering and we can help confirm compatibility.
Does it connect to the VE.Direct communications port?
No. The remote switch connects directly to the inverter’s dedicated two-wire remote ON/OFF terminals. It does not occupy or communicate through the VE.Direct port.
Is connection wiring included?
No. Connection wiring is not included. This allows you to select the cable length required for your particular installation.
What type of wire should I use?
The switch uses a low-current two-wire control circuit. Inexpensive 20 AWG or 22 AWG two-conductor wire is suitable for most installations.
Can I mount the inverter somewhere hidden?

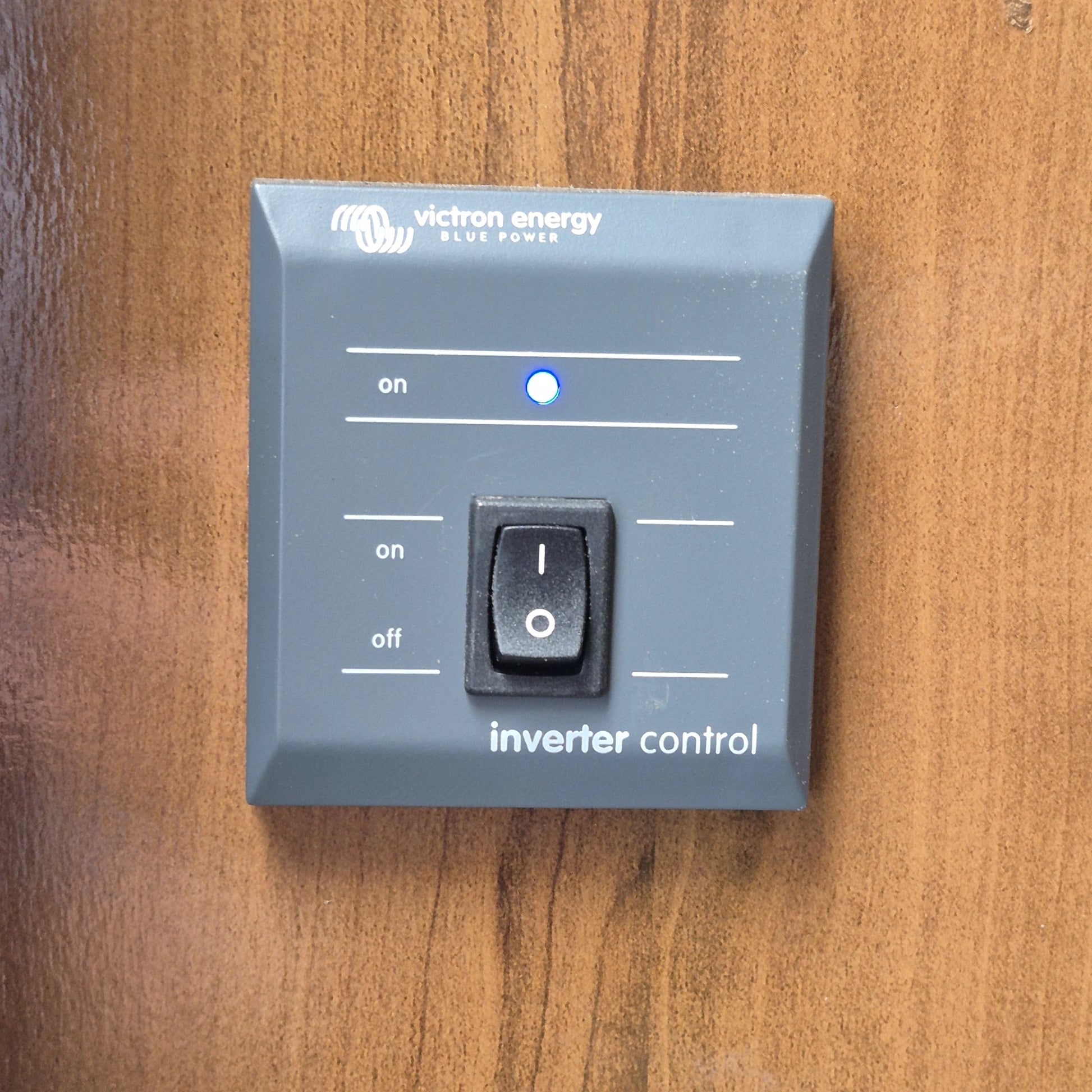

Yes. This is one of the primary benefits of the remote switch. The inverter can be installed close to the battery or inside a protected electrical compartment while the switch is mounted somewhere convenient and accessible.
Does it require Bluetooth or an app?
No. This is a simple wired ON/OFF switch and does not require Bluetooth, Wi-Fi, an app or any programming.
Is this a good match for the Victron Phoenix 12/1200 inverter?
Yes. It provides convenient remote control for the Victron Phoenix 12V 1200VA Inverter, allowing the inverter to remain mounted close to the battery while the ON/OFF switch is installed in a more accessible location.
What should I do if I am unsure about compatibility?
Contact Us with the model number of your inverter and we will help confirm whether this is the correct remote switch.
