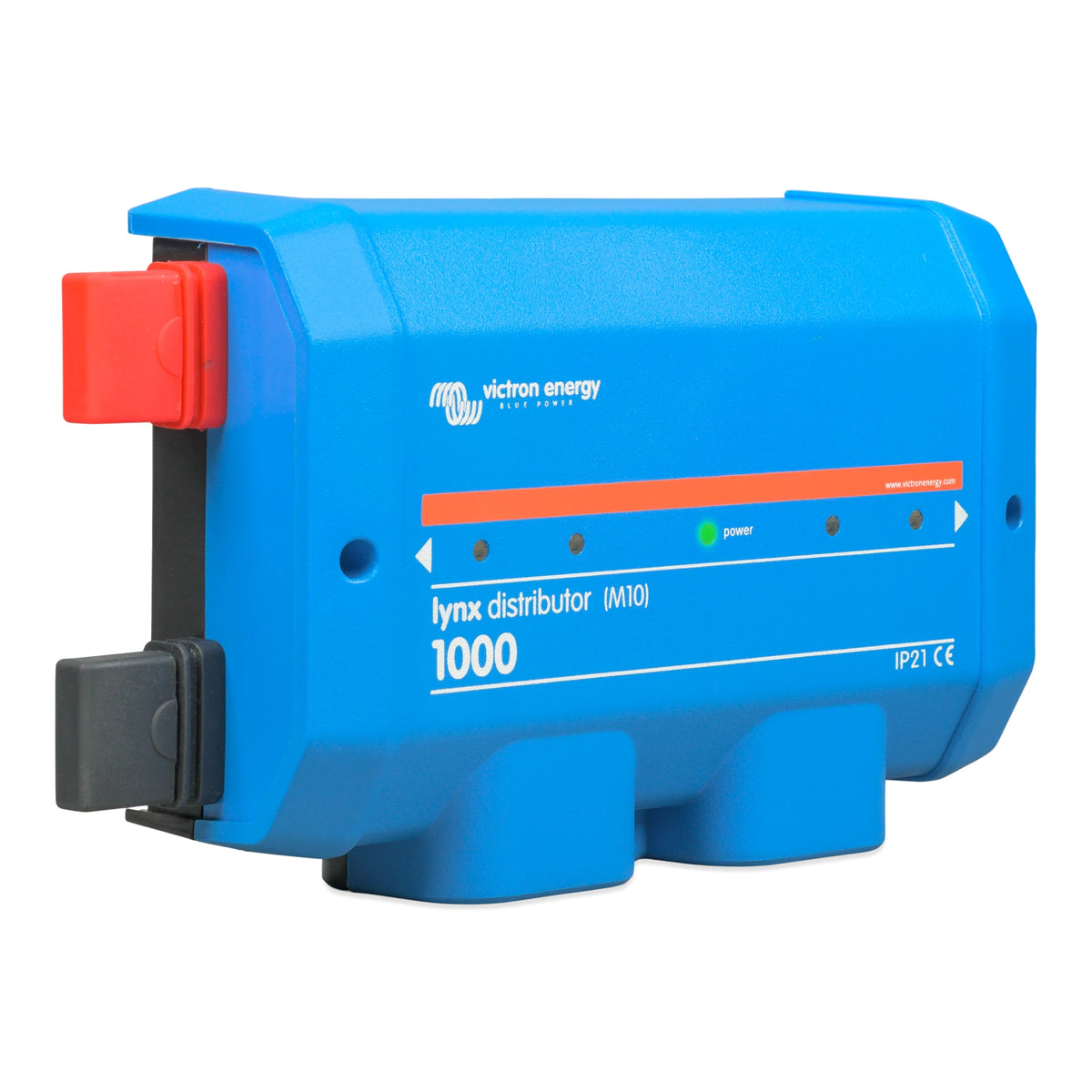

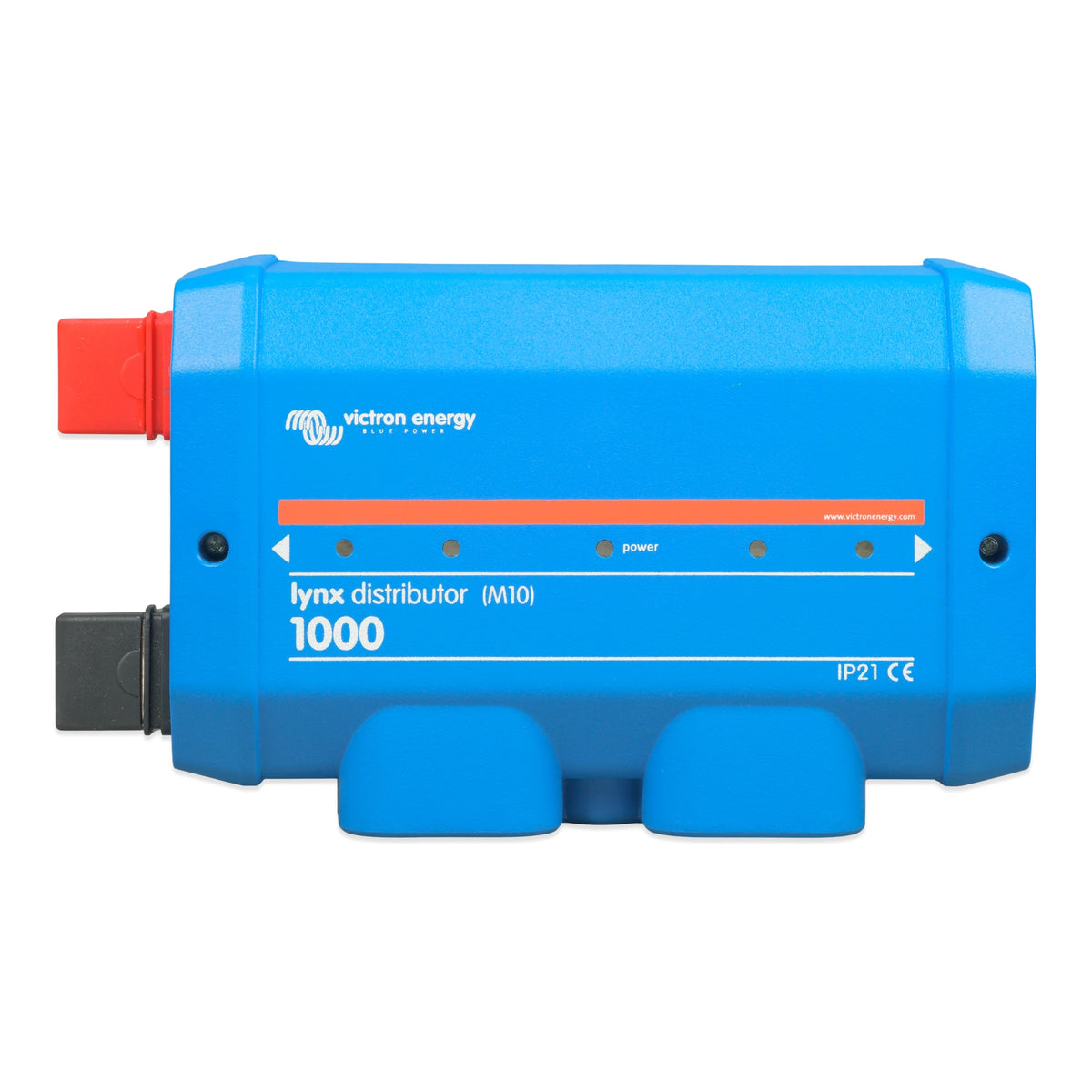

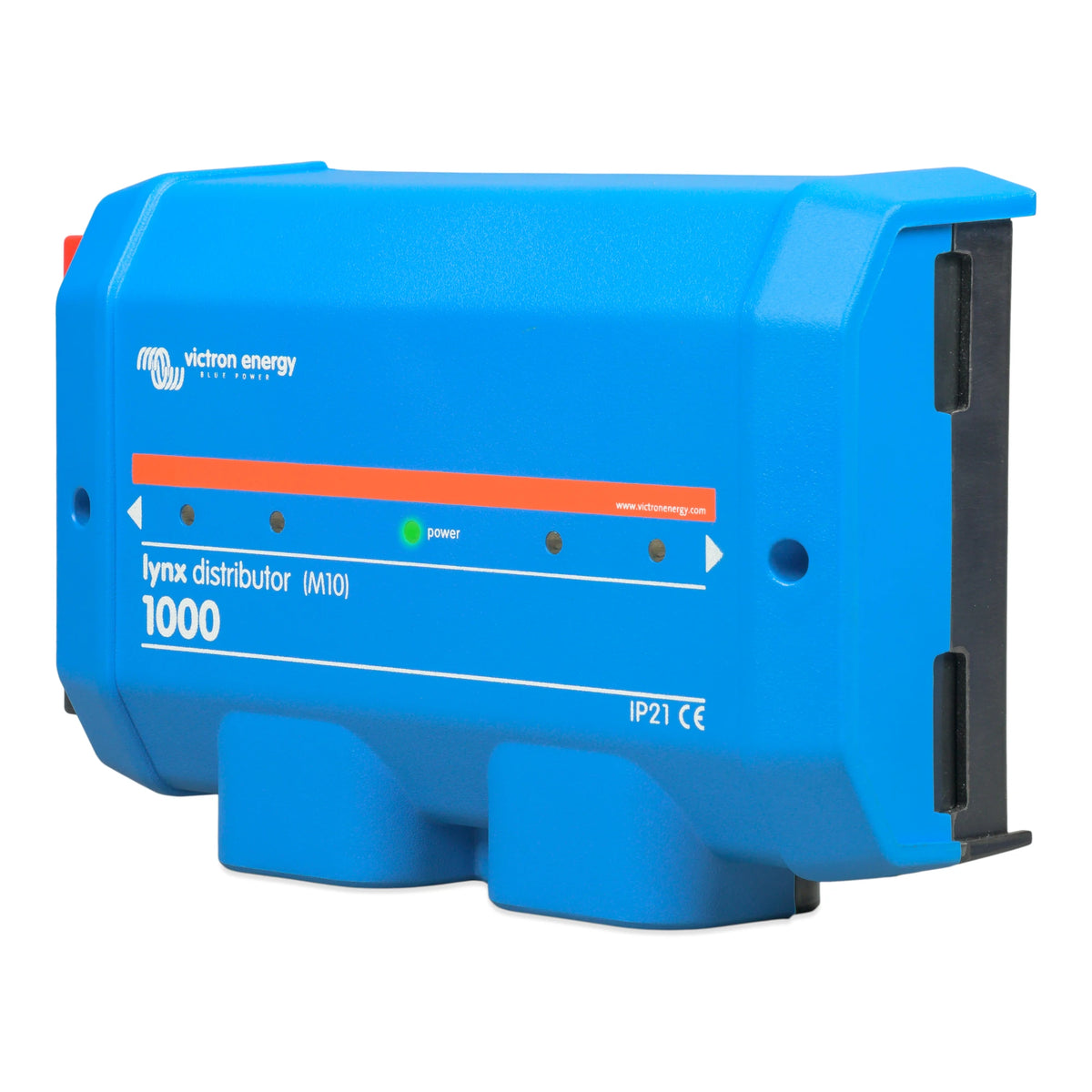

Victron Lynx Distributor M10 1000A
The Victron Lynx Distributor M10 brings clean, professional power distribution to high-current 12V, 24V and 48V DC systems. Positive and negative tinned-copper busbars, four MEGA-fused circuits and a protective enclosure keep your installation organized and easy to service.
Use it to connect batteries, inverters, solar controllers and chargers, either as a standalone distribution module or alongside compatible M10 Victron Lynx components.
Why You’ll Love It
- Four individually fused circuits for batteries, inverters, chargers and other DC equipment.
- 1000A continuous busbar capacity for substantial RV, marine and off-grid power systems.
- Built-in fuse-status LEDs help identify a failed fuse when the monitoring electronics are powered.
- Positive and negative distribution together keeps wiring clean, protected and serviceable.
- Modular M10 connections integrate directly with compatible Victron Lynx components.
Because the Lynx Distributor supports a wide range of battery voltages, it requires a dedicated 5V source to power the electronics and indicator LEDs.
When paired together the Lynx BMS, or Lynx Shunt offers this power without extra parts, or you can use a USB port (or 5V buck converter) to power the electronics
Professional DC Distribution

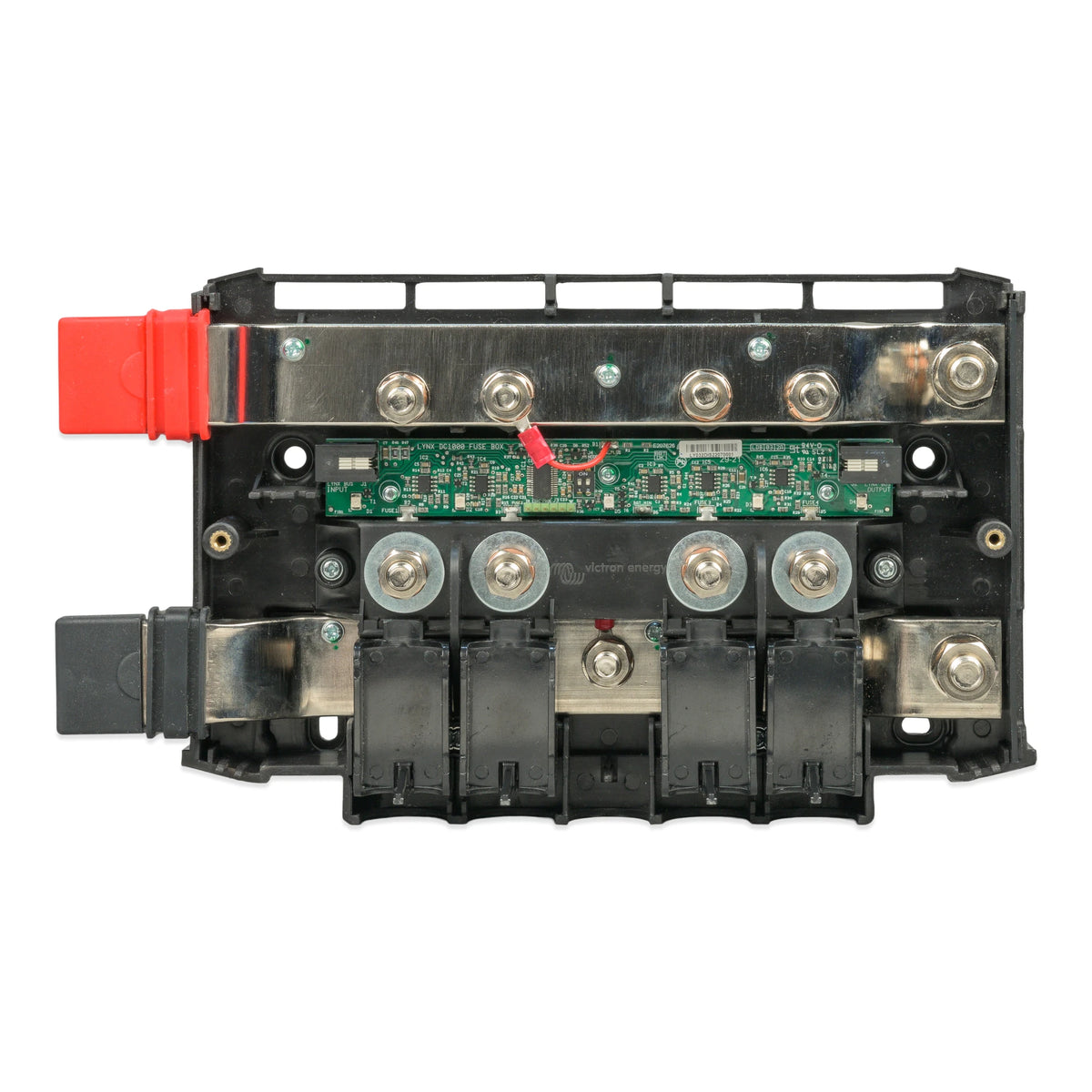

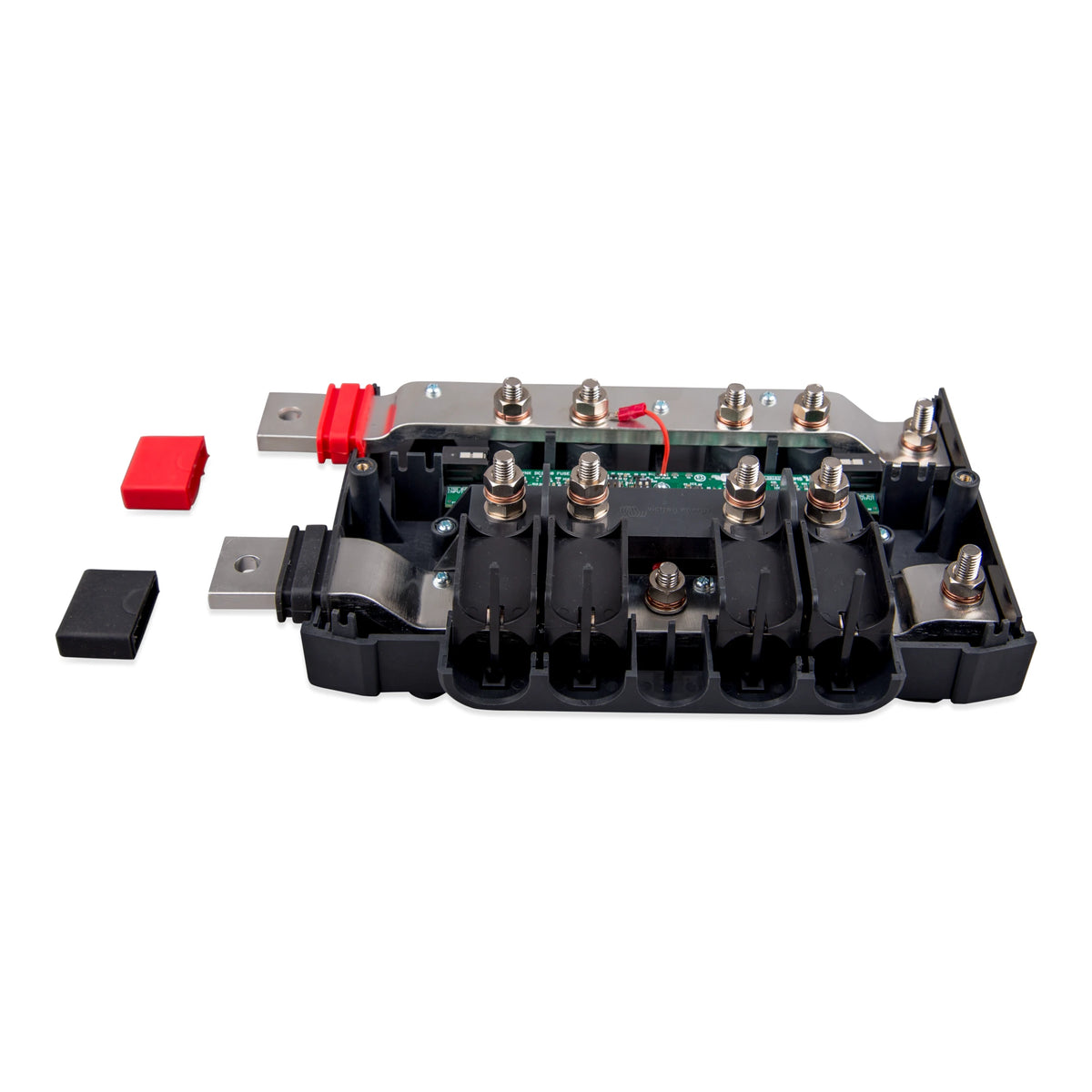

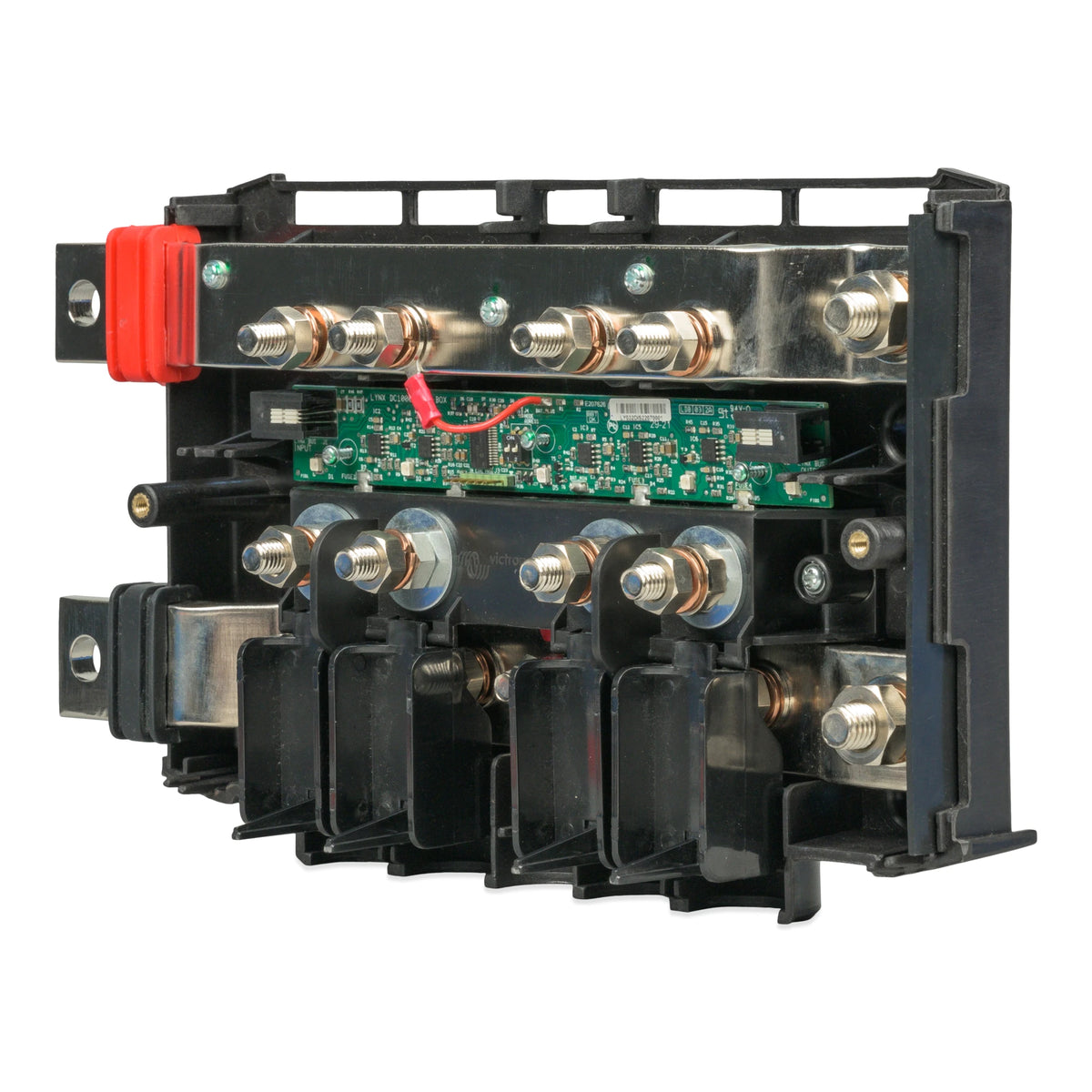

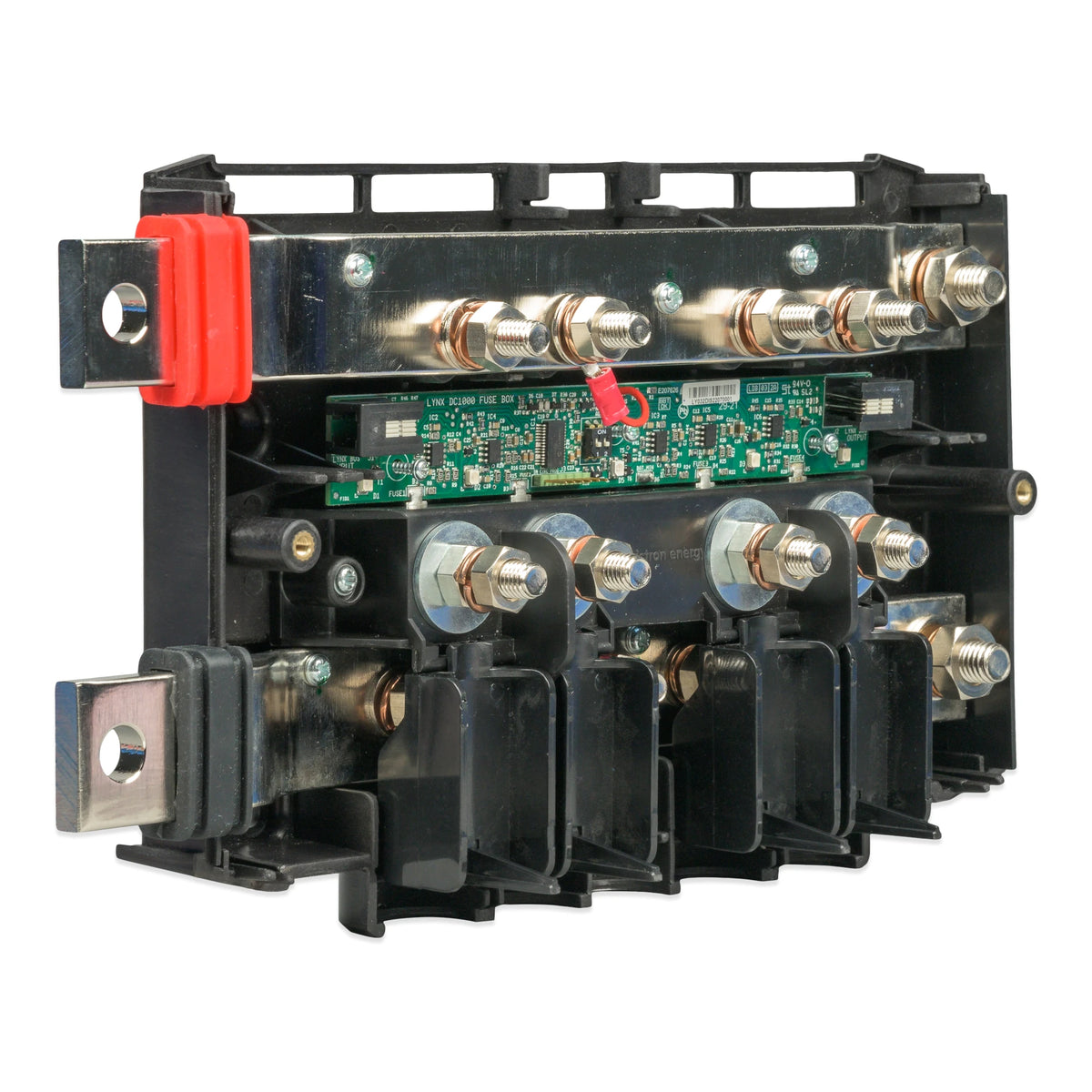

The Lynx Distributor combines four fused positive connections with four matching negative connections and a ground connection. Its tinned-copper busbars provide a dependable central connection point for high-current equipment.
Each positive circuit accepts a separately purchased MEGA fuse, allowing protection to be selected for the connected cable and equipment. The 1000A rating applies to the busbar assembly—not to each individual fused circuit.
Fuses are sold separately. Choose the appropriate amperage and DC voltage rating for each circuit, following the equipment manufacturer’s recommendations and the cable’s safe current capacity.
Fuse Monitoring & Lynx Compatibility
A power LED and four individual fuse-status LEDs provide local indication. The monitoring electronics receive power through the included 40cm RJ10 cable from a Lynx Smart BMS or Lynx Shunt VE.Can.
When connected to a compatible Lynx Smart BMS, fuse-status information can also be made available through VictronConnect and the connected GX/VRM monitoring system. A Lynx Shunt VE.Can powers the indicators but does not receive individual fuse-status data.
M10 refers to the side busbar connections that join Lynx modules together. The internal equipment cable and MEGA fuse connections remain M8. Select compatible M10 Lynx modules when building an interconnected assembly.
Applications
- RV, camper and van electrical systems
- Marine and boat DC power systems
- Off-grid cabins and solar installations
- Service vehicles and mobile power systems
- High-current inverter, charger and battery connections
Features
- Four MEGA-fused positive connections
- Four negative connections plus a ground connection
- 1000A continuous busbar rating
- Tinned-copper positive and negative busbars
- Power LED and four fuse-status LEDs
- M10 Lynx module interconnections
- M8 equipment cable and fuse connections
- Included 40cm RJ10 cable
- IP22 ABS enclosure
Specifications
| Manufacturer Part Number | LYN060102010 |
|---|---|
| Voltage Range | 9–60V DC |
| Supported System Voltages | 12V, 24V and 48V |
| Continuous Busbar Current | 1000A DC |
| Distribution Connections | 4 fused positive connections 4 negative connections plus ground |
| Fuse Type | MEGA — sold separately |
| Lynx Module Connections | M10 |
| Cable & Fuse Connections | M8 |
| Busbar Material | Tinned copper |
| Monitoring Connection | 40cm RJ10 cable included Power from Lynx Smart BMS or Lynx Shunt VE.Can Fuse-status data to Lynx Smart BMS only |
| Enclosure Material | ABS |
| Dimensions (L × W × H) | 290 × 80 × 170mm (11.42 × 3.15 × 6.69in) |
| Weight | 2.2kg (4.85lb) |
| Protection Rating | IP22 |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Warranty | 5 years — Victron Energy standard warranty |
Specifications are provided for reference and may change without notice. Always confirm critical specifications, compatibility and installation requirements using the latest Victron Energy documentation.
Frequently Asked Questions
Are the MEGA fuses included?
No. Fuses are purchased separately so each circuit can be correctly sized for its cable and connected equipment. Select a fuse with a suitable DC voltage rating for your system.
Does the M10 version require M10 cable lugs?
No. M10 refers to the side connections used to join compatible Lynx modules. The equipment cable and MEGA fuse connections inside the Distributor use M8 hardware.
Can I use it without a Lynx Smart BMS?
Yes. The Lynx Distributor can provide fused DC distribution without a Lynx Smart BMS. However, its fuse-monitoring electronics need a suitable 5V supply. This is normally supplied through the RJ10 connection by a Lynx Smart BMS or Lynx Shunt VE.Can. Without this supply, distribution still works, but the status LEDs and fuse monitoring do not.
To activate the fuse indication LEDs without a Lynx Shunt or BMS, you'll need to use a 5V power supply to feed power to the circuit board.
Does it connect directly to a Cerbo GX or Bluetooth?
No. The Distributor does not have its own Bluetooth or a direct GX connection. Remote fuse-status monitoring requires a compatible Lynx Smart BMS, which passes the information to VictronConnect and a connected GX/VRM system.
Can I use it in a boat or outdoors?
Yes, it is suitable for marine DC installations when mounted in a dry location. Its IP22 enclosure is not waterproof, so keep it away from direct spray, rain and wet environments.
Use it to power inverter systems, accept power from solar charge controllers, feed propulsion or maneuvering systems, DC control panels, windlass, etc.
Can you special order Victron products that aren’t listed?
Yes! We can special order many Victron Energy products that are not currently listed on our website. Contact us with the product name or part number, and we’ll confirm availability, pricing and estimated lead time. Many products are stocked locally, just not listed on our website!
