SolaDeck

SolaDeck 0599 AC/DC Roof Box

SolaDeck 0599 AC/DC Roof Box

$99.95 CAD
$99.95 CAD $99.95 CAD
Sale Sold out

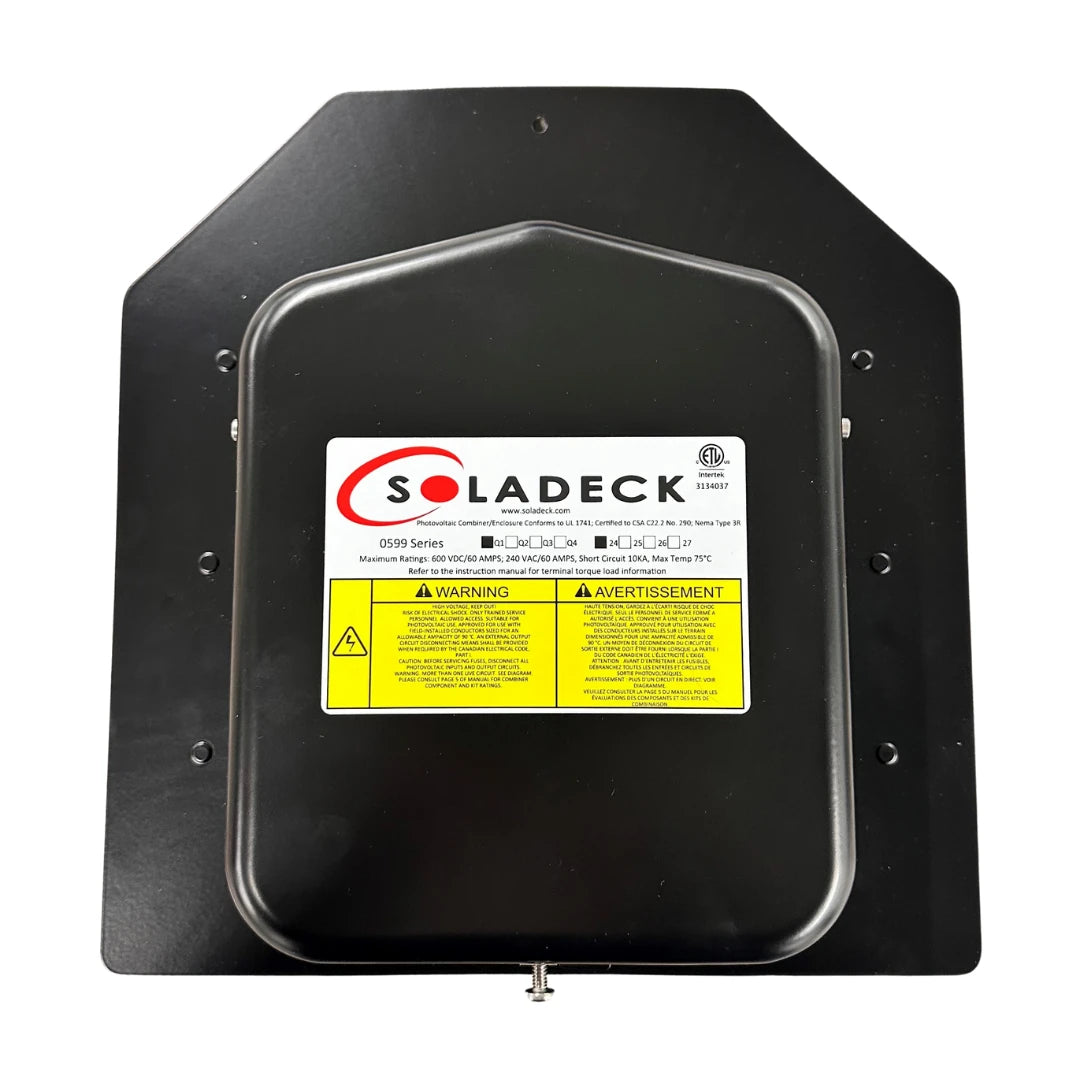

SolaDeck 0599 — Black Roof Penetration & Junction Box (AC/DC)

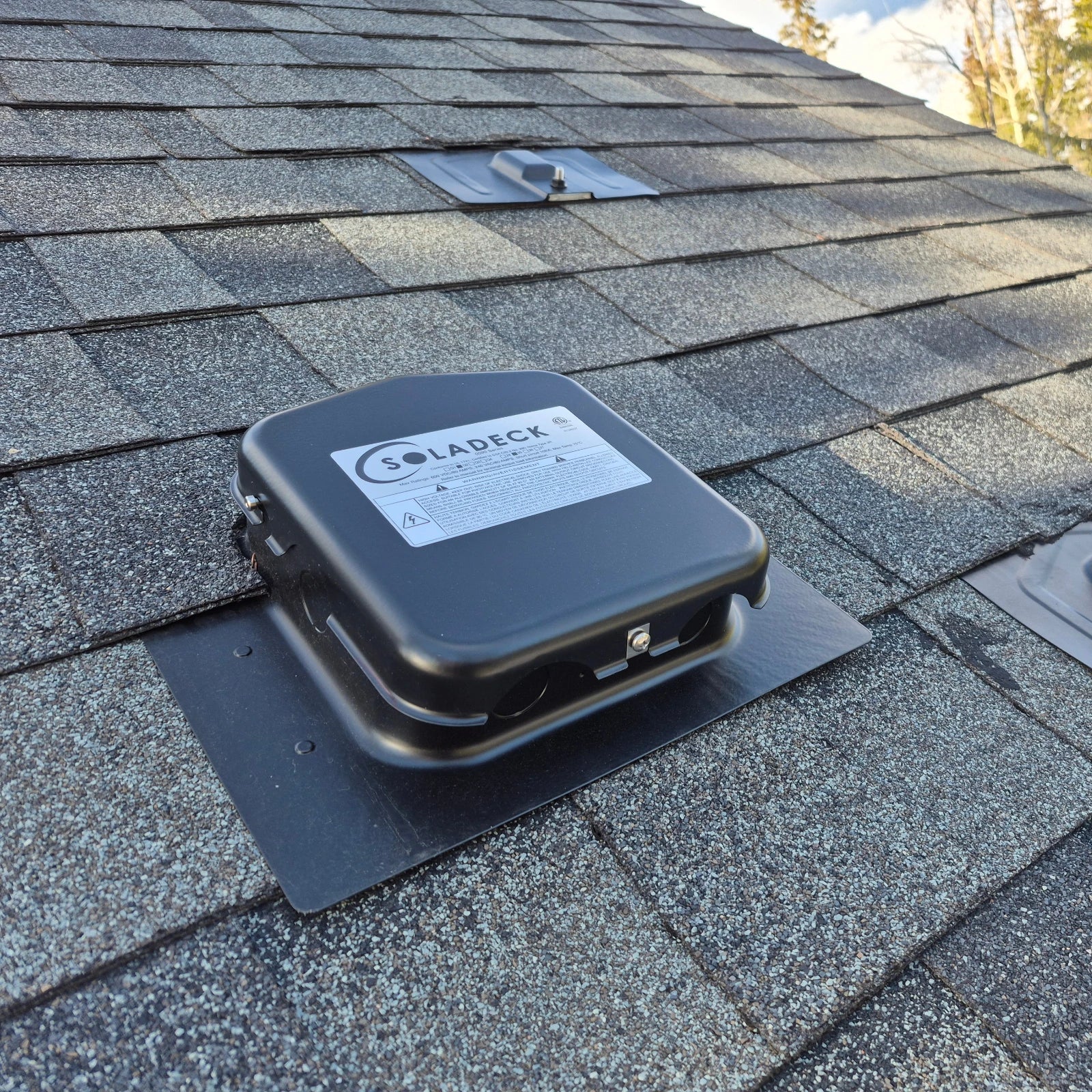

The SolaDeck 0599 is a professional-grade roof-mounted junction box and wire entry solution designed for clean, code-compliant solar installations. Built from G90 galvanized steel with a durable black powder-coated finish, it provides a secure and weather-resistant transition point for both AC and DC wiring.

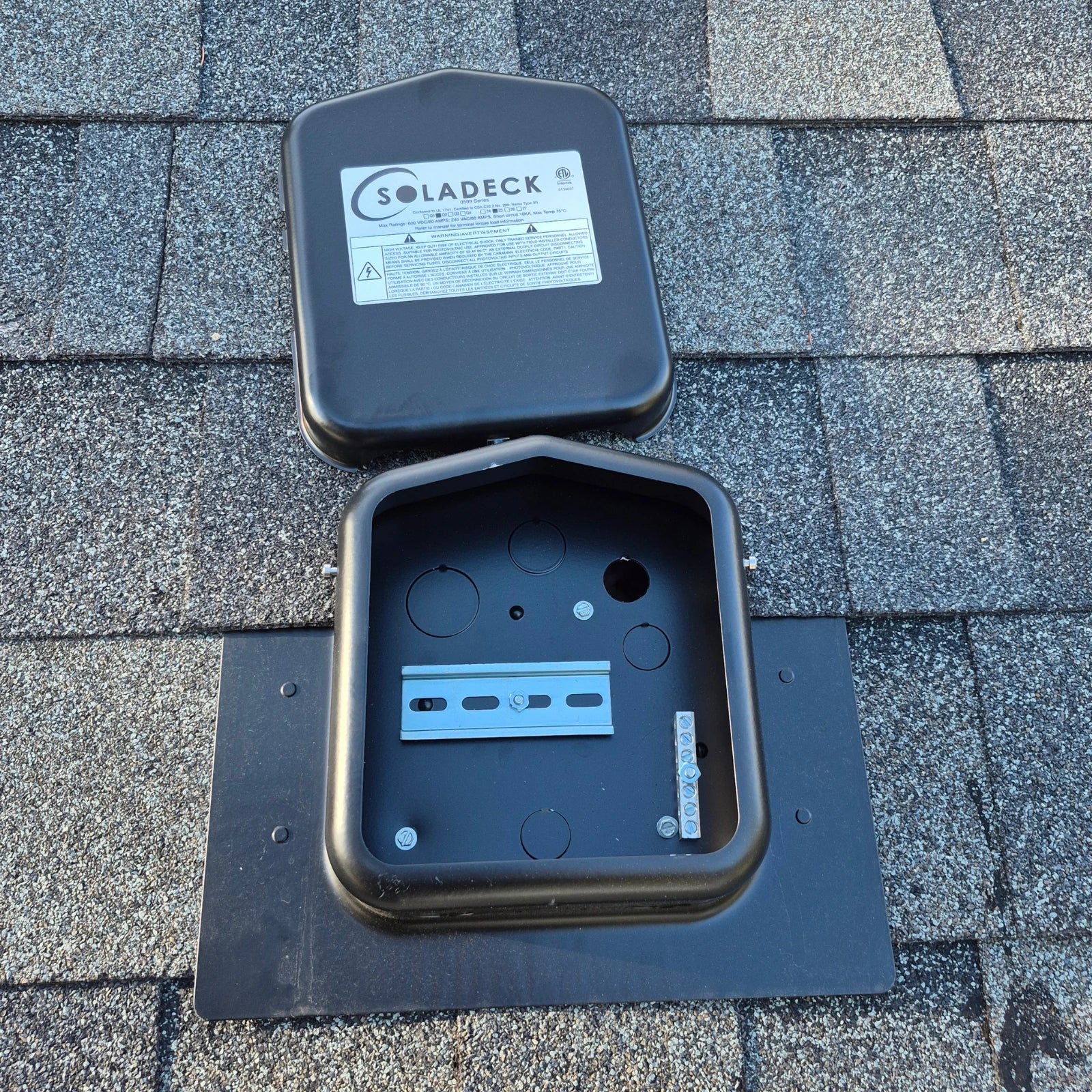

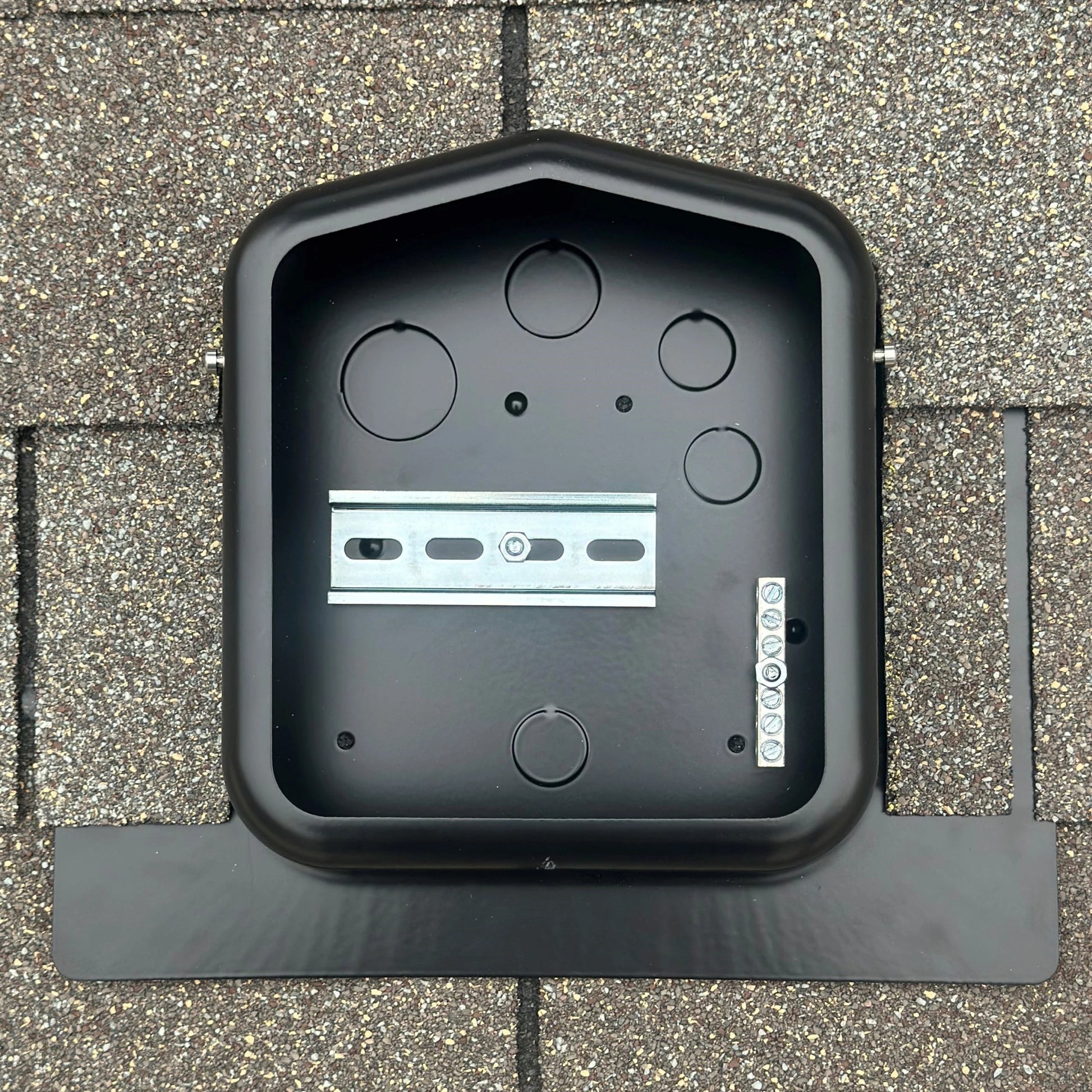

With a factory-installed 35mm DIN rail and ground block, this enclosure offers a clean way to organize connections inside the box while maintaining a low-profile appearance on the roof.

Why You’ll Love This
  • Purpose-built for solar installs — no guesswork or improvised roof penetrations
  • Works for AC & DC systems — ideal for string inverter or microinverter setups
  • All-in-one solution — flashing, enclosure, DIN rail, and ground block included
  • Clean, professional finish — black coating blends into modern roofs
  • Inspection-ready — ETL listed, UL1741, CSA compliant
  • Flexible interior layout — DIN rail allows optional mounting of terminal strips or fuse holders
Suggested Uses
  • DC Solar Panel Wiring — bring PV strings safely into the building
  • Microinverter (AC) Systems — route AC trunk cable from rooftop systems
  • Hybrid / Battery Systems — transition rooftop wiring to interior equipment
Why This Matters

Running wires through a roof without a proper enclosure can lead to leaks, failed inspections, and unsafe wiring. The SolaDeck provides a sealed, code-compliant, and professional solution.

Downloads
Spec Sheet Installation Manual Technical Drawings
Specifications
Model 0599-B
Material 20 Gauge G90 Galvanized Steel
Finish Black Powder Coated
Voltage Rating 600 VDC / 240 VAC
Current Rating 100A
Enclosure Type NEMA Type 3R
Certifications ETL Listed, UL1741, CSA C22.2 No. 290
Temperature Rating -35°C to 75°C
Roof Pitch Compatibility 2/12 – 12/12
Flashing Size 13” × 12”
Height 2.6”
Interior Volume 140 in³
Weight Approx. 2.5 lb
DIN Rail 35mm Slotted (Installed)
Ground Block Included
Roof Deck Knockouts (3) 0.5", (1) 0.75", (1) 1"

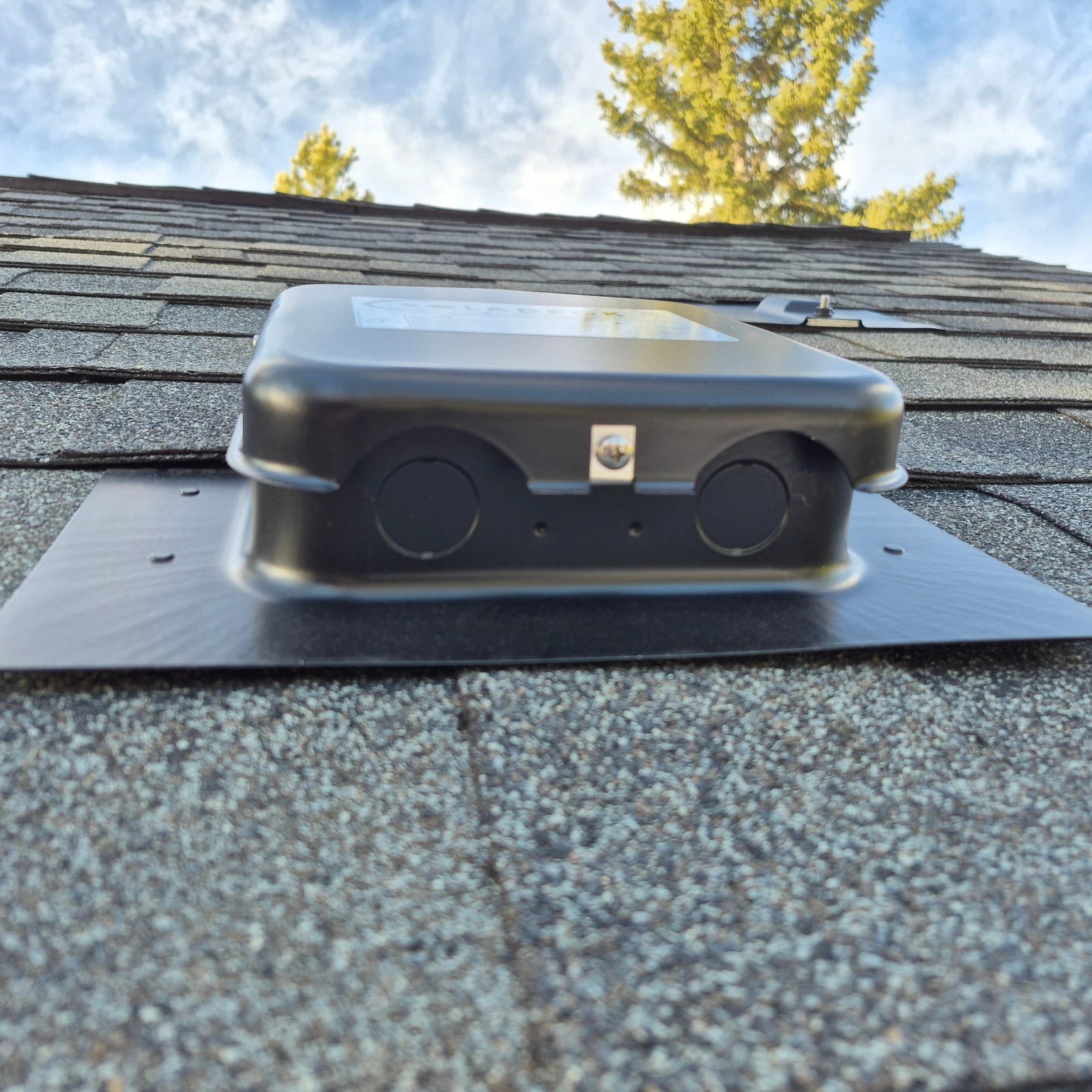

Side/Bottom Knockouts Four 0.75" (Left, Right, Bottom ×2)
Cover Slotted with Preinstalled Set Screw
Installation Notes
  • Install flashing under shingles per roofing best practices
  • Use proper conduit fittings to maintain NEMA 3R rating
  • Follow local electrical codes for grounding and bonding
Pro Install Tip — Add a Secondary Seal

Apply a continuous bead of roof-safe sealant along the top and bottom edges of the underside of the flashing before installation.

This adds a second layer of protection against water intrusion — especially important in rain, snow, and freeze/thaw conditions.

Frequently Asked
What is this used for?

To get from the solar panels on your roof, to inside the building where your inverter(s) & batteries are installed, you have two choices. Run conduit/cables across the roof and down the side of the building, or cleanly route them down through the roof.

The Soladeck products make penetrating the roof with your cables a leak-free and professional experience.

Mount the box, run the cables from your PV panels (or microinverters), and use the Soladeck as a junction box to transition to more traditional wiring methods (or as required by your local codes).

Can this be used for both AC and DC wiring?

Yes. The SolaDeck 0599-B is rated for 600 VDC and 240 VAC, so it can be used for DC solar panel wiring or for AC wiring in AC-coupled systems such as rooftop microinverters.

Do I need to use the DIN rail?

No. The 35mm DIN rail is simply a convenient value-add if you want to mount compatible terminal strips or fuse holders. The box also works perfectly well as a straightforward roof penetration and junction enclosure without using the rail.

Why use a SolaDeck instead of just passing wires through the roof?

A proper roof penetration box helps create a cleaner, safer, and more professional installation. It gives you a dedicated weather-resistant transition point for rooftop wiring and helps avoid the problems that can come from improvised penetrations.

Is this weatherproof?

YES - It is rated NEMA Type 3R for outdoor use (when installed correctly with appropriate roofing and conduit sealing practices).

Simply follow the easy installation instructions to ensure leak free performance.
