KHGLUG-M Grounding Lug
KHGLUG-M Grounding Lug
Couldn't load pickup availability
Reliable Solar Racking Grounding & Bonding

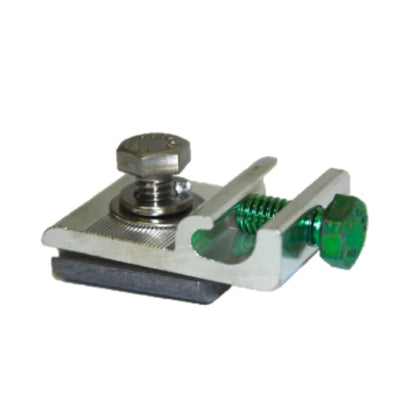

The Kinetic Solar KHGLUG-M Grounding Lug provides a secure connection point for bonding Kinetic Solar mill-finish racking rails to the equipment grounding conductor. It attaches directly to the rail using the included standard Kinetic nut and accommodates conductors from 4 to 14 AWG.
Why You'll Love It
- Provides a secure grounding and bonding connection
- Designed specifically for Kinetic Solar racking
- Compatible with mill-finish Kinetic rails
- Accommodates 4 to 14 AWG conductors
- Attaches directly to the racking rail
- Includes the standard Kinetic nut and required hardware
- Durable aluminum construction with stainless-steel hardware
Specifications
| Manufacturer | Kinetic Solar |
| Part Number | KHGLUG-M |
| Application | Solar racking grounding and bonding |
| Rail Compatibility | Kinetic Solar mill-finish rails |
| Conductor Range | 4–14 AWG |
| Lug Material | Aluminum |
| Hardware Material | Stainless steel |
| Finish | TiN plated |
| Included Hardware | Standard Kinetic nut and required mounting hardware |
Frequently Asked Questions
What does this grounding lug do?
The lug provides a connection point for bonding a Kinetic Solar racking rail to the equipment grounding conductor. This helps maintain electrical continuity between the bonded metal components of the solar array.
This is a critical safety component which helps protect against static, lightning, and transient voltages that could otherwise cause damage or shock hazards.
Be sure to properly connect your solar racking to your system ground.
Which Kinetic rails is it designed for?
The KHGLUG-M is designed for Kinetic solar racking, and may not be compatible with other brands or manufacturers.
What conductor sizes will it accept?
The lug accommodates conductors from 4 to 14 AWG. The selected conductor must meet the grounding and bonding requirements of the installation.
Is the mounting hardware included?
Yes. The KHGLUG-M includes the standard Kinetic nut and required mounting hardware for attachment to a compatible Kinetic rail.
Does it attach directly to the rail?

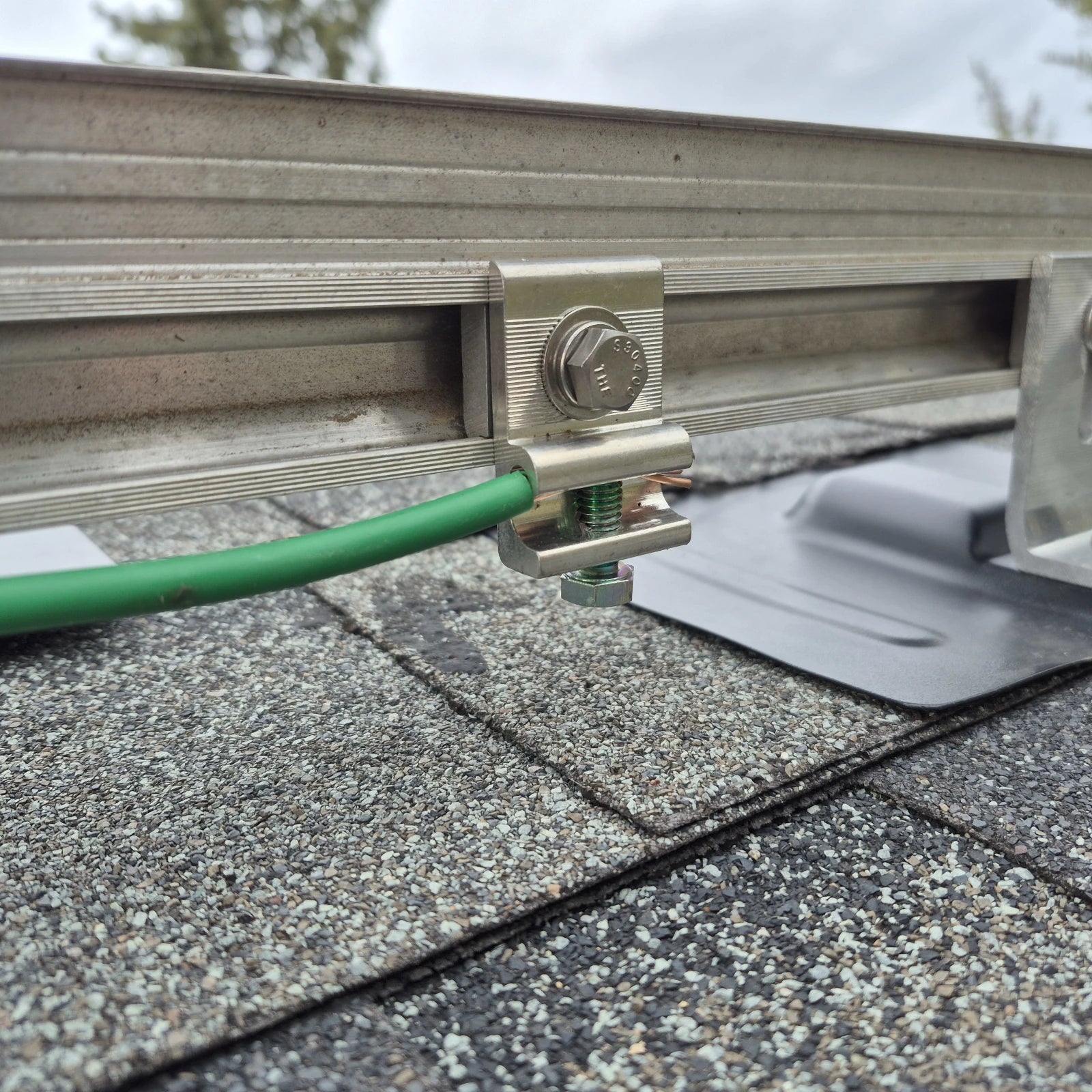

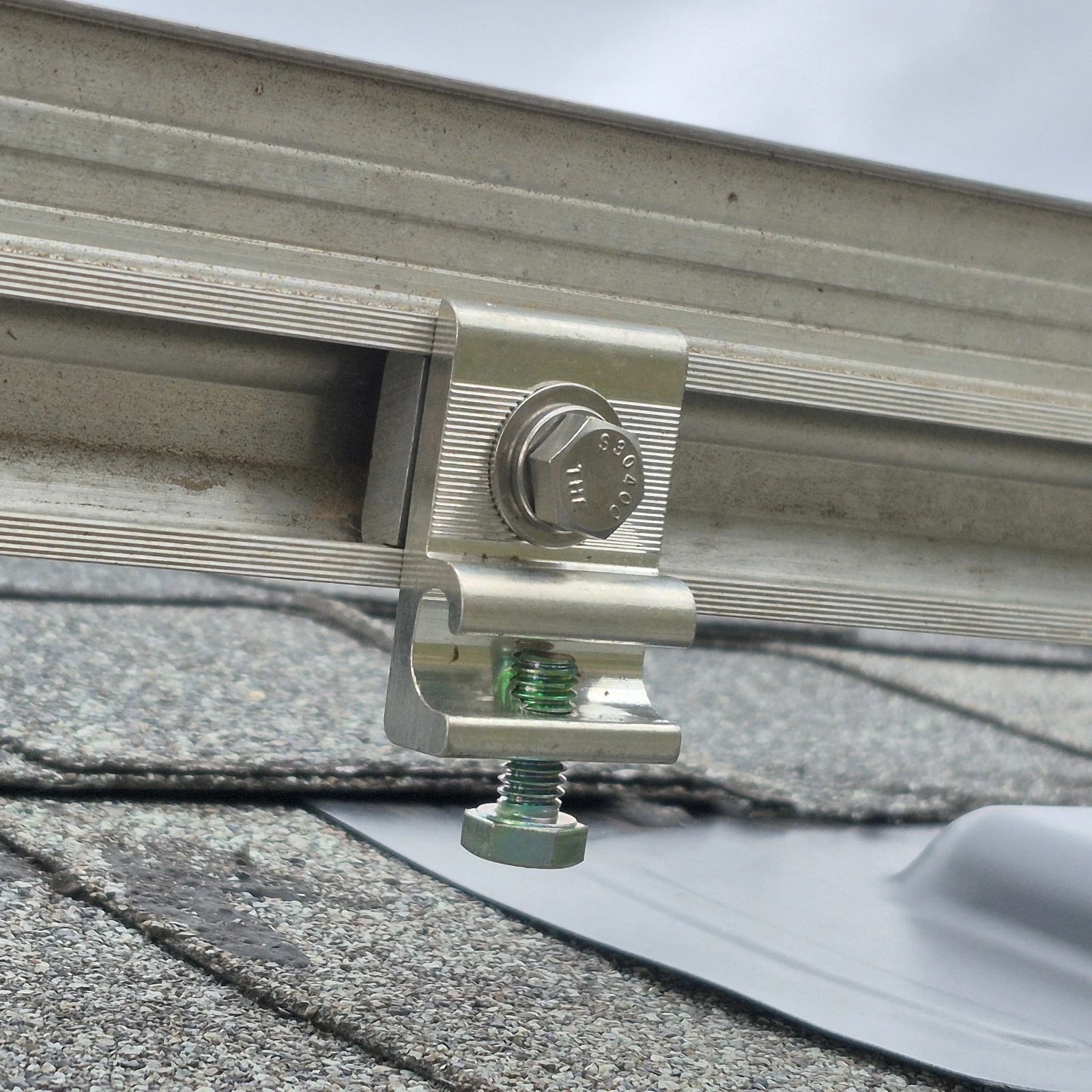

Yes. The lug mounts directly into the channel of a compatible Kinetic Solar rail, providing a secure connection point for the equipment grounding conductor.
Does one lug bond the complete solar array?
That depends on the racking layout, rail connections and bonding hardware used. All separate rail sections, modules and other exposed metal components must be properly bonded as required by the system design and applicable electrical code.
How many grounding lugs do I need?
The required quantity depends on the number of separate rail sections, how those rails are connected and bonded, and the electrical requirements of the installation. Contact us if you need help determining the appropriate components for your racking layout.
Typically, you need one lug per row of panels. The matching Kinetic panel clamps are certified to carry the bonding through the panel's aluminum frame to the second rail.
If you have questions - just reach out and ask!
