Battery Post Adapter (M8 2pc Set)
Battery Post Adapter (M8 2pc Set)
Couldn't load pickup availability
An Easy Bridge Between Old and New Battery Connections
Upgrading an older RV, trailer or boat to a battery with M8 terminals does not have to mean replacing cables that already use automotive-style battery clamps. This Battery Post Adapter Set converts standard M8 battery terminals into traditional positive and negative top posts, helping you reuse your existing connections and avoid the cost of new cables.
The adapters also make portable battery chargers, maintainers and other clamp-on equipment quick and easy to connect. A built-in M8 bolt on top of each adapter remains available for permanently installed accessories such as solar charging, an RV converter, a battery monitor or additional DC wiring.
Why You'll Love It
- Converts M8 battery terminals to automotive-style top posts
- Reuse existing RV, trailer or marine battery-clamp cables
- Makes portable clamp-on chargers easier to connect
- Built-in top M8 bolts accept compatible accessory wiring
- Includes one positive and one negative adapter
Connect the automotive-style clamps already installed in your RV or trailer, then use the built-in M8 bolts on top for new ring-terminal accessories. It is a simple way to modernize the battery without rebuilding all of the existing wiring.
Applications
- Upgrading older RVs and trailers to M8-terminal batteries
- Connecting portable battery chargers and maintainers
- Marine, fishing and seasonal battery systems
- Adding solar, monitoring or accessory wiring
- Replacing a traditional top-post battery without replacing existing cables

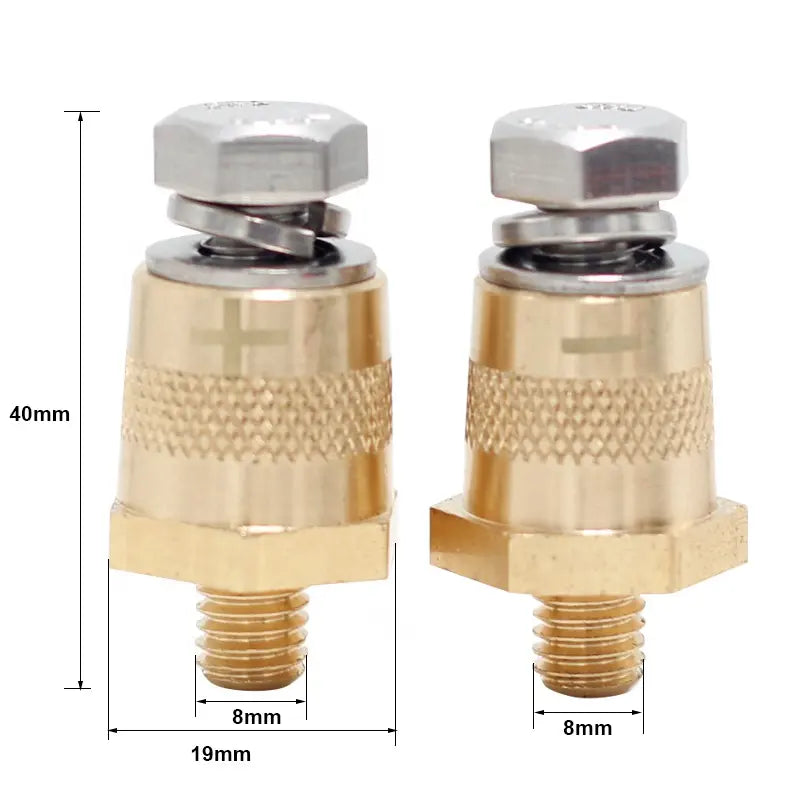

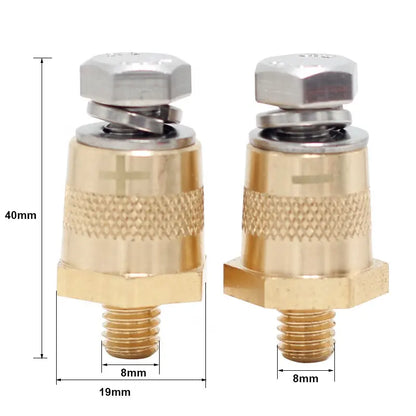

Product Specifications
| Specification | Value |
|---|---|
| Battery Connection | M8 bolted terminal |
| Cable Connection | Automotive-style positive and negative top posts |
| Auxiliary Connection | Built-in top M8 bolts for compatible ring terminals |
| Set Contents | 1 positive adapter + 1 negative adapter |
Most standard LiFePO₄ batteries with bolted terminals use M8 hardware, making these adapters a straightforward fit for many popular batteries. For a quick fit check, confirm that your battery uses M8 rather than a smaller terminal size and has clear space around each connection.
Frequently Asked Questions
Will these fit any lithium battery?
Most likely, yes. Most standard LiFePO₄ batteries with bolted terminals use M8 hardware, so these adapters fit many of the batteries commonly used in RV, trailer, marine and off-grid systems.
Some compact or specialty batteries use smaller M6 terminals. Before ordering, take a quick look at your battery specifications or compare the existing terminal bolt to confirm that it is M8.
Can I use the top post and M8 connection at the same time?
Yes. The automotive-style post can accept a compatible battery clamp while the built-in M8 bolt on top is used for properly sized ring-terminal wiring. This makes it easy to retain existing RV or trailer cables while adding solar charging, monitoring or other accessories.
Make sure every connection seats flat, remains secure and does not interfere with nearby terminals or the battery case. Always test your wiring and check for heat after installation.
Can I connect a portable battery charger to these posts?
Yes. The automotive-style posts provide a convenient place to attach compatible charger or maintainer clamps. Always confirm polarity and make sure the charger is suitable for the battery type and voltage before connecting it.
Are these marked positive and negative?
It depends on the batch or production run we receive. Some sets may include visible positive and negative markings, while others may not.
The negative post is normally slightly smaller than the positive post, so the two can be identified visually. Compare them side by side before installation, then install each adapter on the corresponding battery terminal.
Why use these instead of replacing my battery cables?
If your existing top-post cables are still in good condition, these adapters can save the cost and work of replacing them just because your new battery uses M8 terminals.
You can keep the existing clamp-style connections and still use the built-in top M8 bolts for new solar, monitoring or accessory cables.
Shop ready-made battery cables or contact Sapphire Energy for help selecting the correct cable size, length and terminal configuration.
