JA Solar

New Product

500W A Solar JAM60D41 500W Solar Panel

500W A Solar JAM60D41 500W Solar Panel

$199.00 CAD
$199.00 CAD $199.00 CAD
$199.00 each
Sale Sold out

JA Solar JAM60D41-500/LB — 500W Bifacial TOPCon Module

More solar power per panel. This 500 W bifacial glass-glass module delivers excellent efficiency and durability in a larger utility-class format—ideal for cabins, off-grid homes, solar ground mounts, and high-output rooftop systems that want maximum production per panel.

Why you’ll love this

  • High output — 500 W of rated power with ~22.6% efficiency to build powerful arrays with fewer modules.
  • Bifacial gain — double-glass construction captures additional reflected light from snow, roofs, and bright ground surfaces.
  • Premium TOPCon cells — n-type technology improves efficiency, reduces degradation, and boosts long-term production.
  • Utility-grade durability — rugged glass-glass construction designed to withstand heavy snow loads, wind, and harsh weather.
  • Better low-light performance — excellent early-morning and late-day production keeps batteries charging longer.

Built for cabins, off-grid homes & high-output systems

  • Fewer panels per system: 500 W modules help reduce array size and mounting hardware while still hitting your power targets.
  • Perfect for ground mounts: larger format panels maximize production for off-grid homes and remote cabins.
  • Great for snowy climates: bifacial output benefits from reflected winter sunlight.
  • Long-term reliability: n-type TOPCon cells and glass-glass construction provide excellent resistance to degradation.
  • Easy to pair: works with modern MPPT charge controllers and 12V / 24V / 48V battery systems when properly sized.

Controller & Wiring Notes

  • Use an MPPT charge controller sized for the panel’s open-circuit voltage (Voc) and Isc.
  • Typical controller sizing: 40A for 12V systems or 20A for 24V systems per 500W panel.
  • MC4-type connectors simplify series and parallel wiring with standard solar branch connectors.
  • Protect strings with properly sized fuses or breakers and outdoor-rated PV cable.

Suggested Controllers (Bluetooth Enabled)

12V: 40A MPPT Heavy Duty 12V: MC4010 40A MPPT 24V: 20A MPPT Compact

Quick specs

Power (Pmax) 500 W
Cell technology n-type TOPCon, monocrystalline, half-cut (120 cells)
Construction Glass-glass bifacial module, black frame
Module efficiency 22.6%
Vmp / Imp (STC) 36.91 V / 13.55 A
Voc / Isc (STC) 43.85 V / 14.42 A
Max system voltage 1500 V DC
Max series fuse 30 A
Dimensions (L × W × H) 1953 × 1134 × 30 mm
76.9 × 44.6 × 1.18 in
Weight 27.3 kg (60.2 lb)

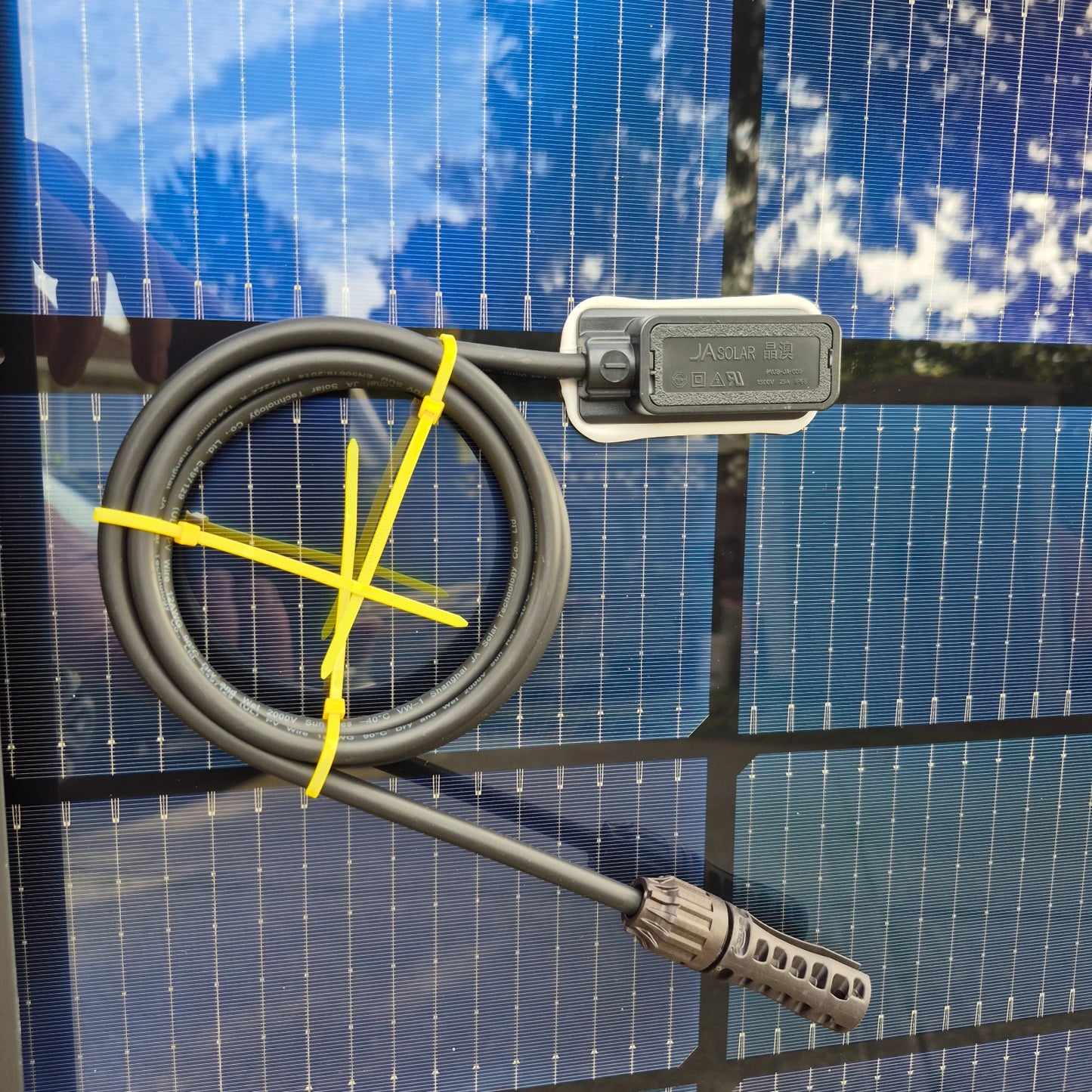

Connectors QC 4.10-35 / MC4-EVO2 compatible
Cable length / gauge Portrait: 300 mm (+) / 400 mm (−)
4 mm² (≈12 AWG)
Junction box IP68, 3 bypass diodes
Operating temp −40 °C to +85 °C
NOCT 45 ± 2 °C
Mechanical loads Front 5400 Pa / Back 2400 Pa
Bifaciality (typ.) 80% ± 10%
Warranty 12-year product / 30-year performance

Specifications sourced from the JA Solar JAM60D41-500/LB datasheet and may vary slightly by batch. Always refer to the official datasheet for exact electrical characteristics and installation requirements.

Downloads

Datasheet (PDF) Warranty (PDF) Installation Manual (PDF)

Great for

  • Cabins, cottages, and off-grid homes needing high production per panel
  • Ground-mount solar arrays where larger modules improve system efficiency
  • Large RV or mobile power builds with sufficient roof space
  • Snowy or reflective environments where bifacial gain increases production

Fit & mounting tips

  • Panel size ≈ 76.9" × 44.6" × 1.18" — measure clearances around roof vents, racks, and A/C units before ordering.
  • For RVs or trailers: use low-profile mounts and maintain an airflow gap under the panel to help keep cell temperatures down and output up. We recommend our Z-brackets.
  • For cabins or ground mounts: install on a sturdy racking system and consider seasonal tilt adjustments to improve winter production.
  • Bifacial modules perform best when mounted with some clearance above the surface so reflected light can reach the rear side.
Freight & pickup: This panel’s dimensions require LTL freight or warehouse pickup. Adding this item to your cart will prevent checkout. Please contact us first—we’ll arrange freight or coordinate pickup at a local distributor warehouse.

Pickup: This product can be picked up directly from several locations across the country, including Delta BC, Calgary AB, Edmonton AB, Stratford ON, and Dartmouth NS.
