Generic
Slotted 35mm Aluminum DIN Rail
Slotted 35mm Aluminum DIN Rail
Couldn't load pickup availability

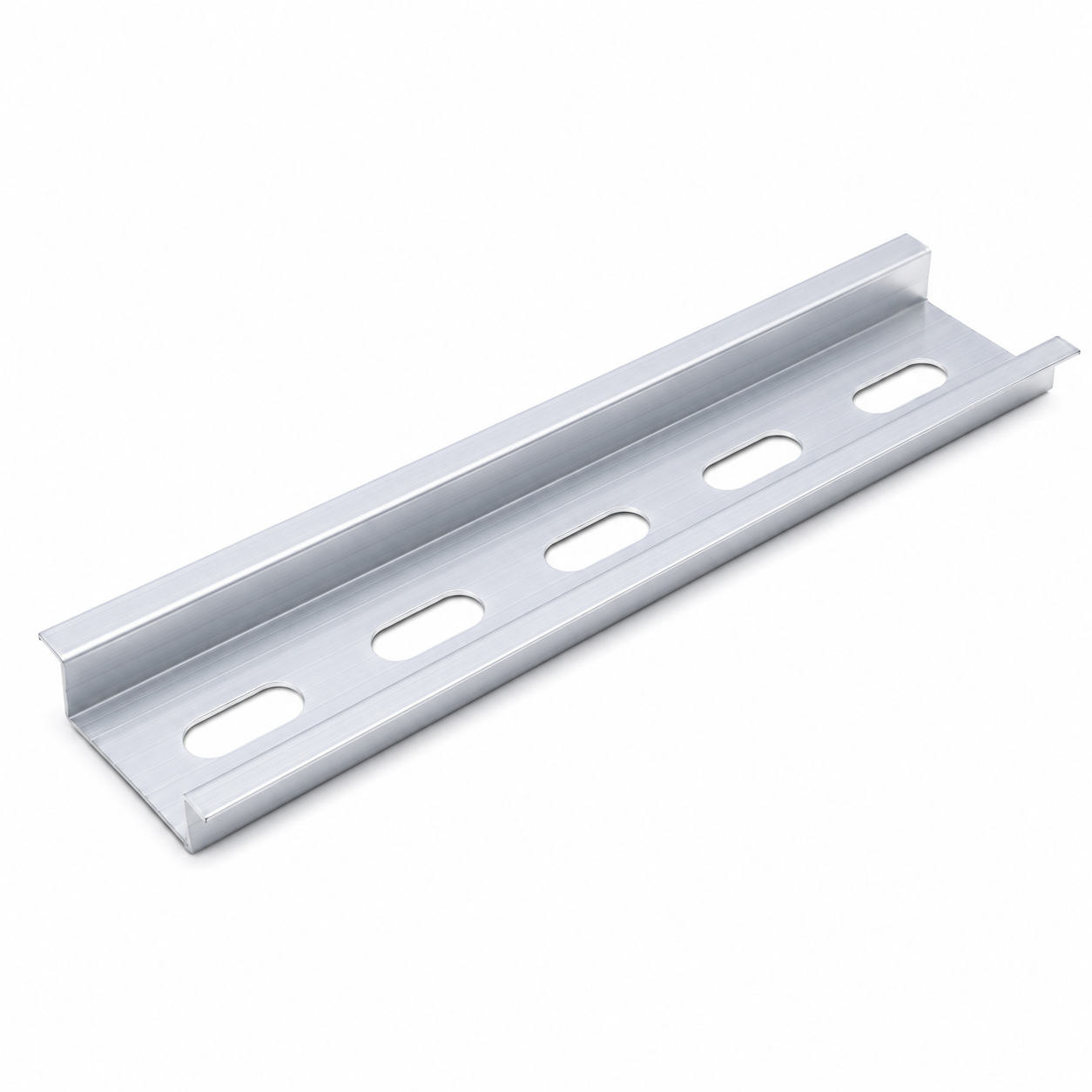

35mm Slotted Aluminum DIN Rail (TS35)

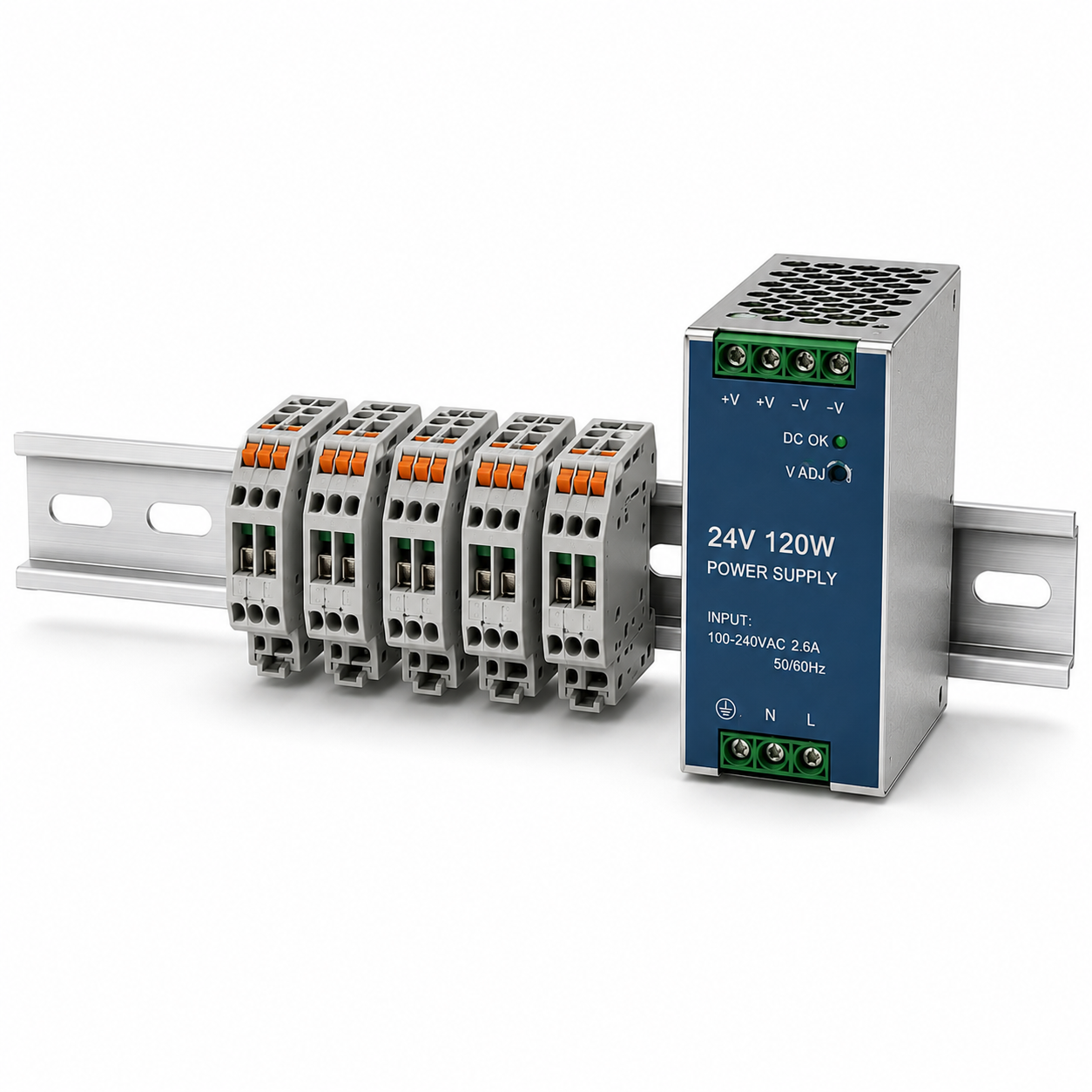

Build cleaner, more serviceable electrical installs with this 35mm Slotted Aluminum DIN Rail. It gives you a standard mounting platform for breakers, terminal blocks, relays, controllers, small power supplies, and other snap-on electrical components used in RV, marine, solar, battery, and DIY control projects.
The lightweight aluminum construction is corrosion resistant, easy to cut, and well suited for compact enclosures where clean layout matters. The slotted rail design also makes it easier to fasten, align, and adjust inside panels, battery boxes, equipment cabinets, and custom electrical builds.
Why You'll Love It
- Standard 35mm TS35 / EN60715 top-hat rail profile
- Lightweight aluminum construction
- Corrosion resistant for RV, marine, and off-grid environments
- Slotted mounting design for easier alignment
- Easy to cut to fit custom enclosures and battery boxes
- Helps create cleaner, more serviceable electrical panels
Common Applications
- RV electrical panels
- Marine electrical systems
- Camper van and overland builds
- Battery box and power system enclosures
- Solar, Inverter and charger cabinets
- DIY control panels
- Off-grid power systems
Specifications

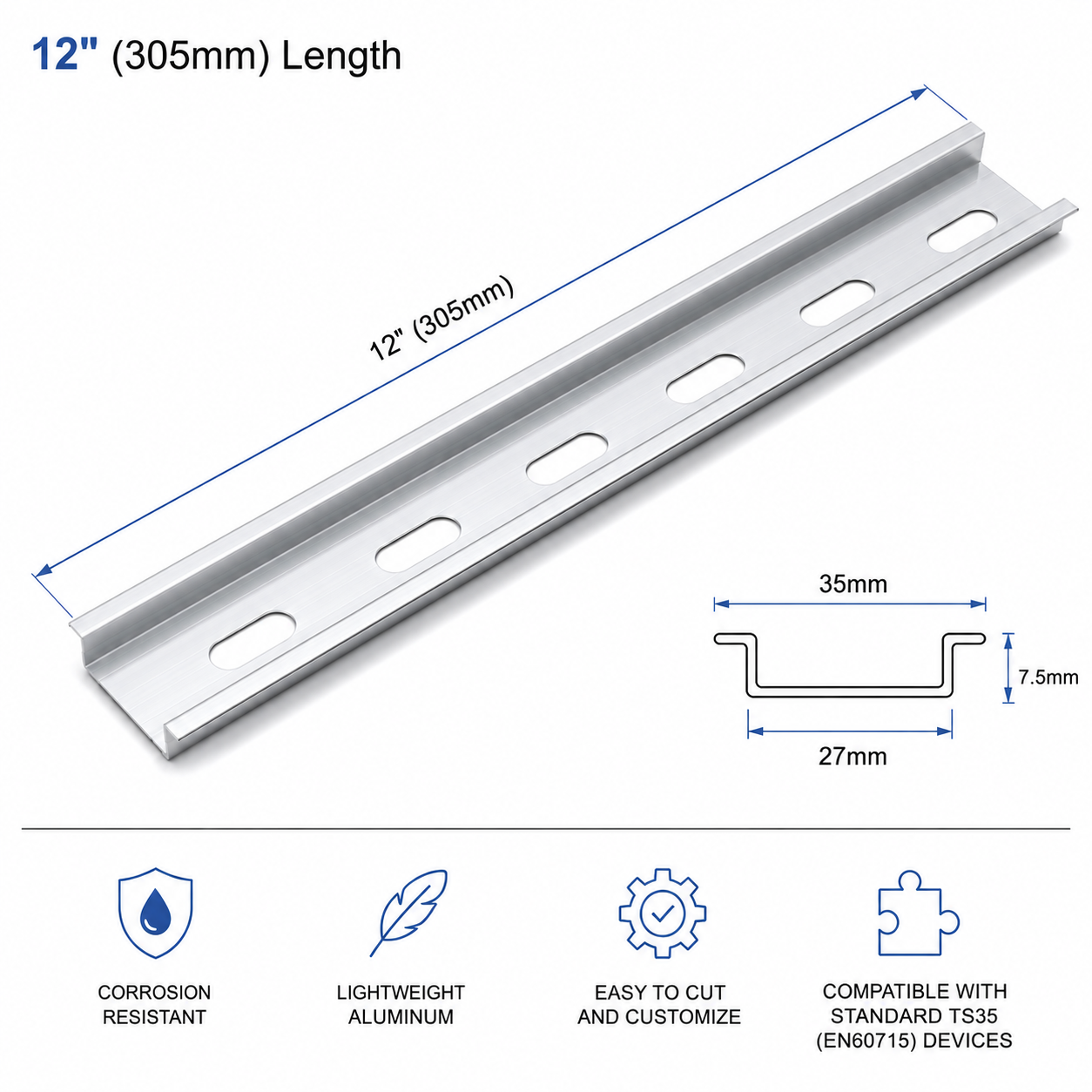

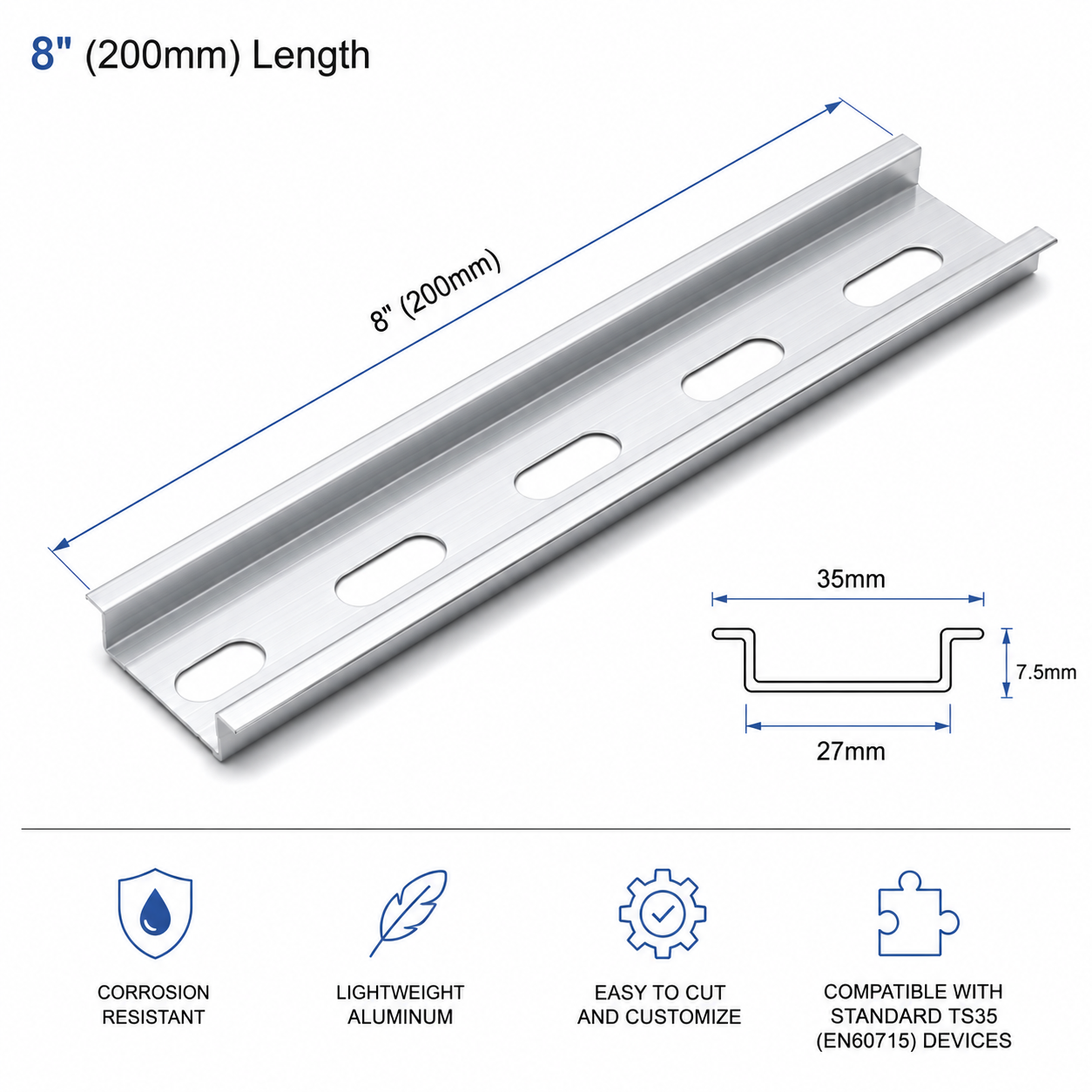

| Rail Type | TS35 / Top Hat DIN Rail |
|---|---|
| Standard | EN60715 / IEC60715 |
| Overall Width | 35 mm |
| Height | 7.5 mm |
| Base Width | 27 mm |
| Material | Aluminum |
Product images are for reference only. Minor variations in finish, slot pattern, end cuts, and manufacturing details may occur between production batches.
Frequently Asked Questions
What is a TS35 DIN rail?
TS35 refers to the standard 35mm top-hat DIN rail profile commonly used in electrical enclosures. It is the rail style used by many snap-on breakers, terminal blocks, relays, small controllers, timers, power supplies, and similar control components.
Is this useful for RV or marine electrical installs?
Yes. DIN rail is a great way to keep smaller electrical components mounted neatly inside RV, boat, camper, battery, and solar enclosures. It helps make the system easier to inspect, service, and modify later.
Can I cut the rail to a custom length?
Yes. Aluminum DIN rail is easy to cut with common metal-cutting tools. After cutting, deburr the edge before installing components or wiring nearby.
Why choose aluminum DIN rail?
Aluminum is lightweight, naturally corrosion resistant, and easier to cut than many steel rails. That makes it a practical choice for RV, marine, off-grid, and DIY electrical projects where moisture resistance and easy customization matter.
