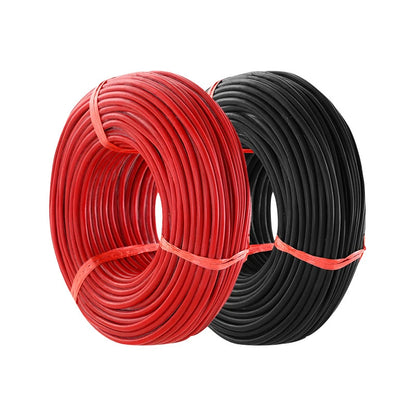

• Two rolls of solar cable on a white background.
1 3

Sapphire Energy

New Lower Price!

#10 AWG Solar PV Cables (Bulk)

#10 AWG Solar PV Cables (Bulk)

$1.00 CAD
$1.00 CAD $1.00 CAD
Sale Sold out
Color: Black

#10 AWG Photovoltaic (PV) Solar Cable — Sold by the Foot

Looking for Pre-Made Sets?

High-quality #10 AWG (6 mm²) photovoltaic wire built for solar, battery, and off-grid power systems. This cable is sold by the foot — just enter the number of feet you need before adding to cart. Available in both red and black for clear polarity identification.

Each color and length are ordered separately using the color selector above. Example: ordering 25 ft (red) and 15 ft (black) gives you one 25 ft red cable and one 15 ft black cable — each cut from continuous rolls for a clean, professional install.

Constructed with tinned copper conductors and UV-resistant XLPE insulation for durability.  These are built for direct sun exposure, and rated for up to 1.8kV DC. These cables are suitable for wet & outdoor use. Built to deliver maximum efficiency and long-term reliability in outdoor solar applications.

💡 Free Cable Crimping Service:
We’ll crimp your cable ends free of charge! Just add the appropriate connectors to your cart and leave clear notes at checkout (e.g. which ends go on which cable). You can also contact us before ordering to confirm your setup.

Why You’ll Love It

  • Order exact lengths — no waste or overpaying for pre-cut cables that are too long
  • Choose red or black jackets to avoid wiring mistakes.
  • Tinned copper for maximum conductivity, corrosion resistance, and durability.
  • UV-resistant jacket rated up to 1.8KV for extra safety
  • Ideal for solar, RV, van, and cabin builds.

Usage Examples

  • ☀️ Connecting solar panels to a combiner box or charge controller
  • 🔋 Wiring between batteries, small inverters, or DC distribution panels
  • 🚐 Custom runs for van, RV solar setups
  • 🏠 Outdoor PV and remote off-grid systems
📏 Need Longer Lengths or Bulk Pricing?
We can offer better pricing on large cable runs.
Tell us the exact lengths you need and we’ll build a custom quote.
Just contact us before ordering!

Specifications

Conductor material Tinned copper
Wire size 6.0 mm² (10 AWG)
Insulation & jacket XLPE (low-smoke, halogen-free; UV & outdoor rated)
Rated voltage (DC) 1.8 kV DC
Temperature range −40 °C to +90 °C
Minimum bend radius 4 × cable outer diameter (OD)
Environmental UV / Sun resistant (outdoor rated)

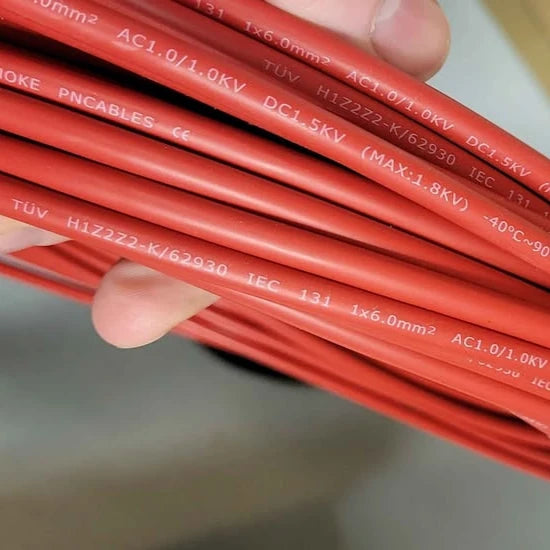

Standards & markings TÜV 2PfG 1169 (08.2007)
IEC 62930
IEC 131 / H1Z2Z2-K
CE
Maximum continuous cut length 328 ft (100 m)
⚡ Want a Ready-to-Use Solar Cable Set?
Prefer a plug-and-play option with factory-installed MC4 connectors?
Check out our pre-made #10 AWG Solar PV Extension Cable Sets — available in common lengths and ready to install.

View Pre-Made Solar Cable Sets →

Don’t Forget Your Connectors

🔌 Staubli MC4 Connectors ⚡ Generic MC4 Connectors
View full details
