Sapphire Energy

Multi-Hole Cable Sealing Gland M32X1.5

$4.95 CAD

~~$4.95 CAD~~ $4.95 CAD

Sale Sold out

Holes 3 Hole 4 Hole

Multi-Hole Cable Sealing Gland – IP68 Waterproof (3-Hole / 4-Hole)

A clean, watertight way to route multiple cables into a junction box, control panel, PV combiner, or outdoor enclosure. These multi-hole cable sealing glands create a tight compression seal around each wire to help keep moisture and dust out.

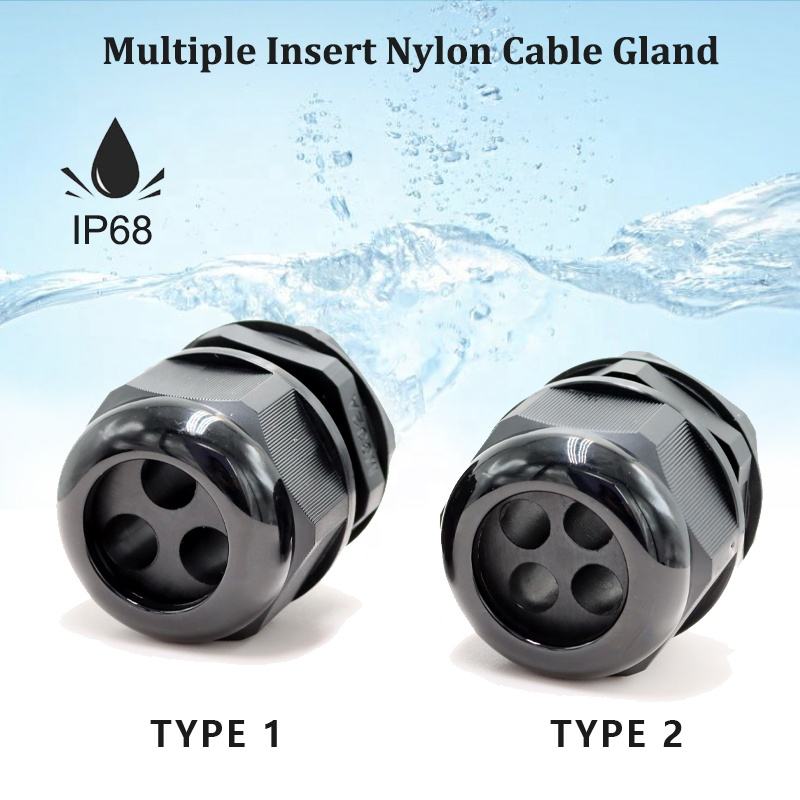

Choose between Type 1 (3 holes @ ⌀10 mm) or Type 2 (4 holes @ ⌀9 mm) depending on your cable count and diameter. Perfect for tidy installs where you want fewer enclosure penetrations and a more professional finish.

Install Tips:
Confirm your cable OD fits the hole size before final assembly. Route cables first, then tighten evenly to compress the seals and maintain the IP68 rating.

Pro Tip: If you’re feeding wires into a PV combiner or control enclosure, leaving a gentle drip-loop outside the box helps shed water away from the entry point.

Why You’ll Love It

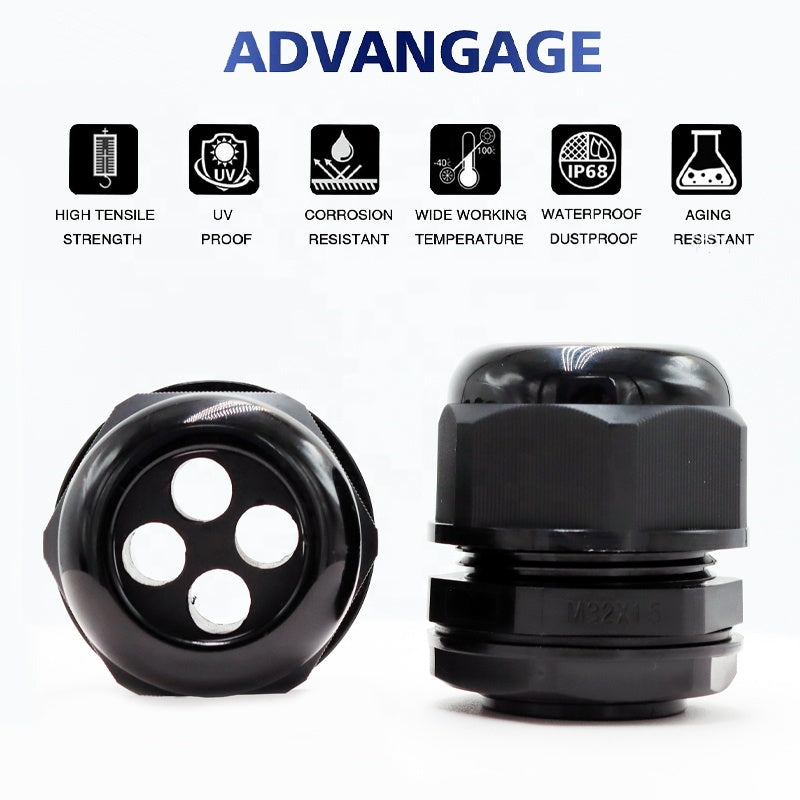

IP68-rated sealing helps keep water and dust out of enclosures
Routes multiple wires through one clean entry point
Reduces drilling multiple holes in your junction box or panel
Compression seal provides strain relief to limit cable movement and wear
Ideal for PV combiners, junction boxes, control panels, and outdoor enclosures
Clean, professional finish for solar, DC wiring, monitoring, and accessories

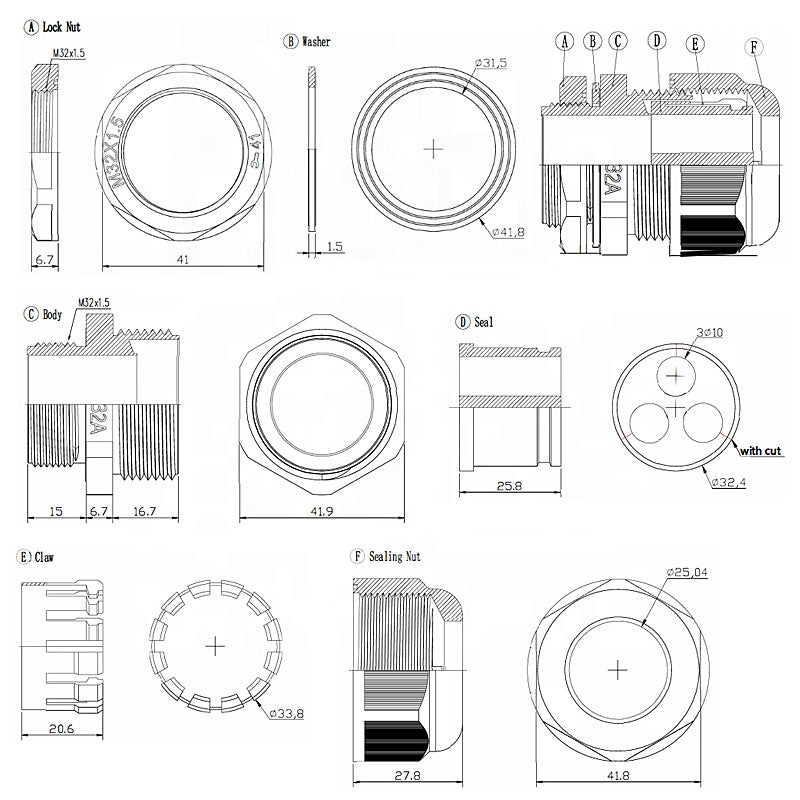

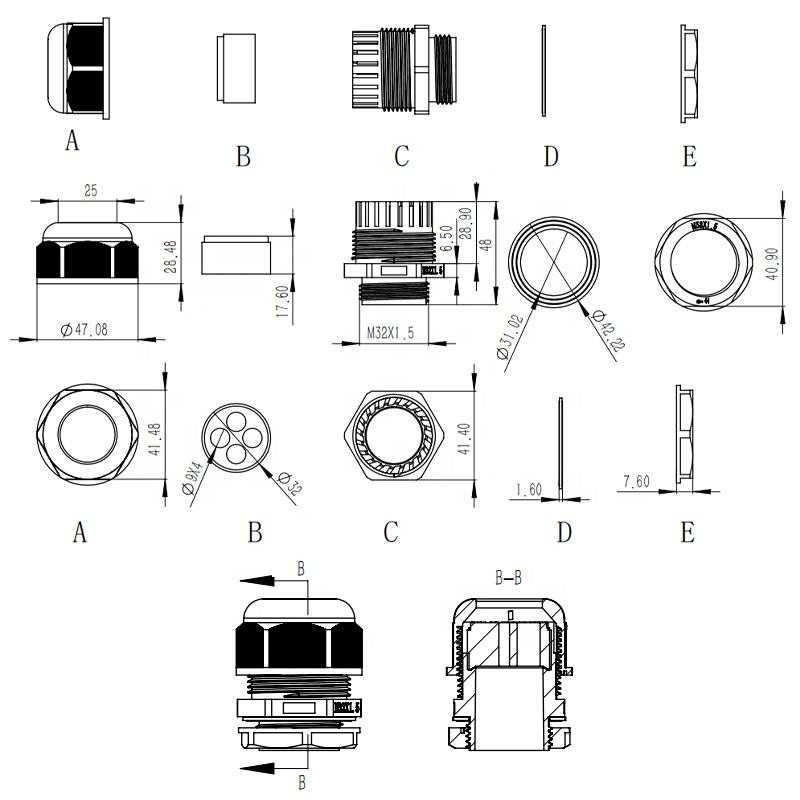

Product Details

Ingress Rating	IP68
Cable Entries	Type 1: 3 cables Type 2: 4 cables
Hole Diameter	Type 1: ⌀10 mm (x3) Type 2: ⌀9 mm (x4)
Knockout Size	⌀32 mm enclosure hole (≈ 1.26″)

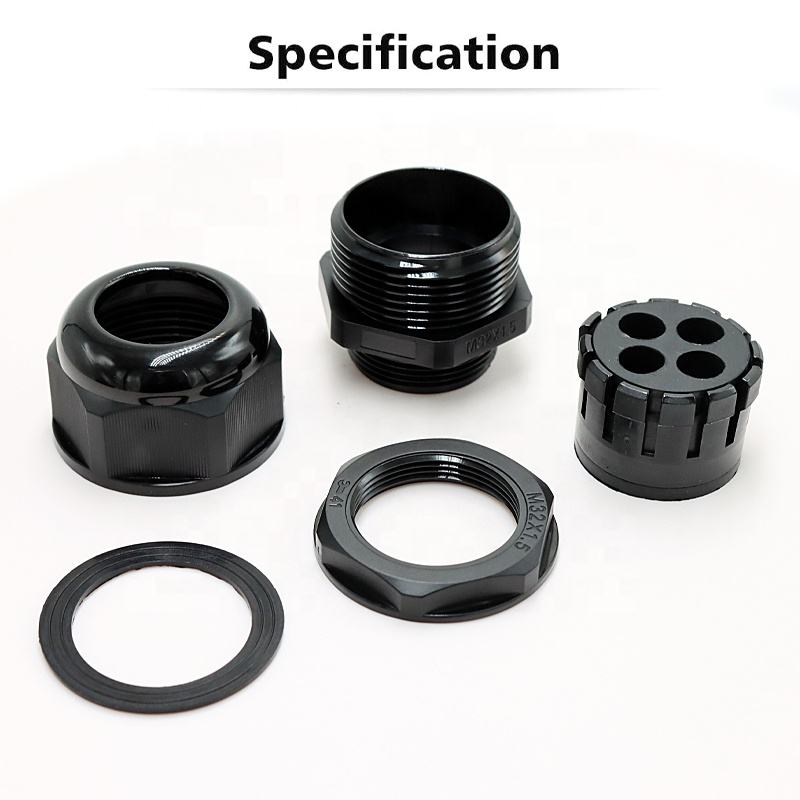

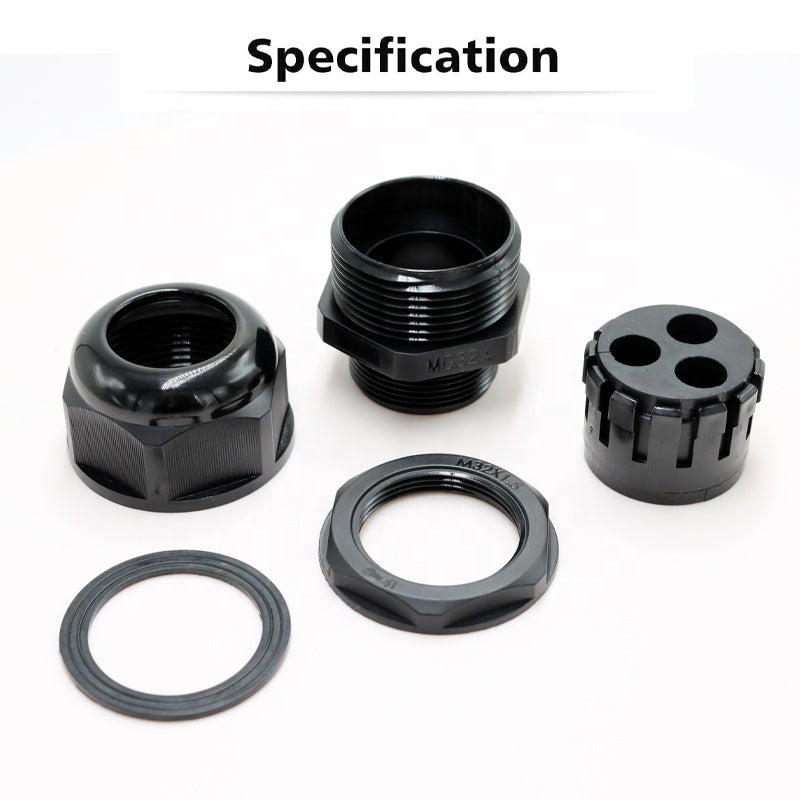

Includes	Sealing gland M32 locking nut Rubber seal
Applications	Solar installs, junction boxes, PV combiners, control panels, outdoor enclosures
