Lumera Solar
200 Watt Folding Solar Panel Kit
200 Watt Folding Solar Panel Kit
Couldn't load pickup availability

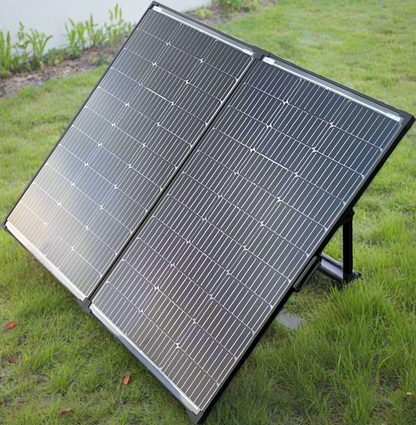

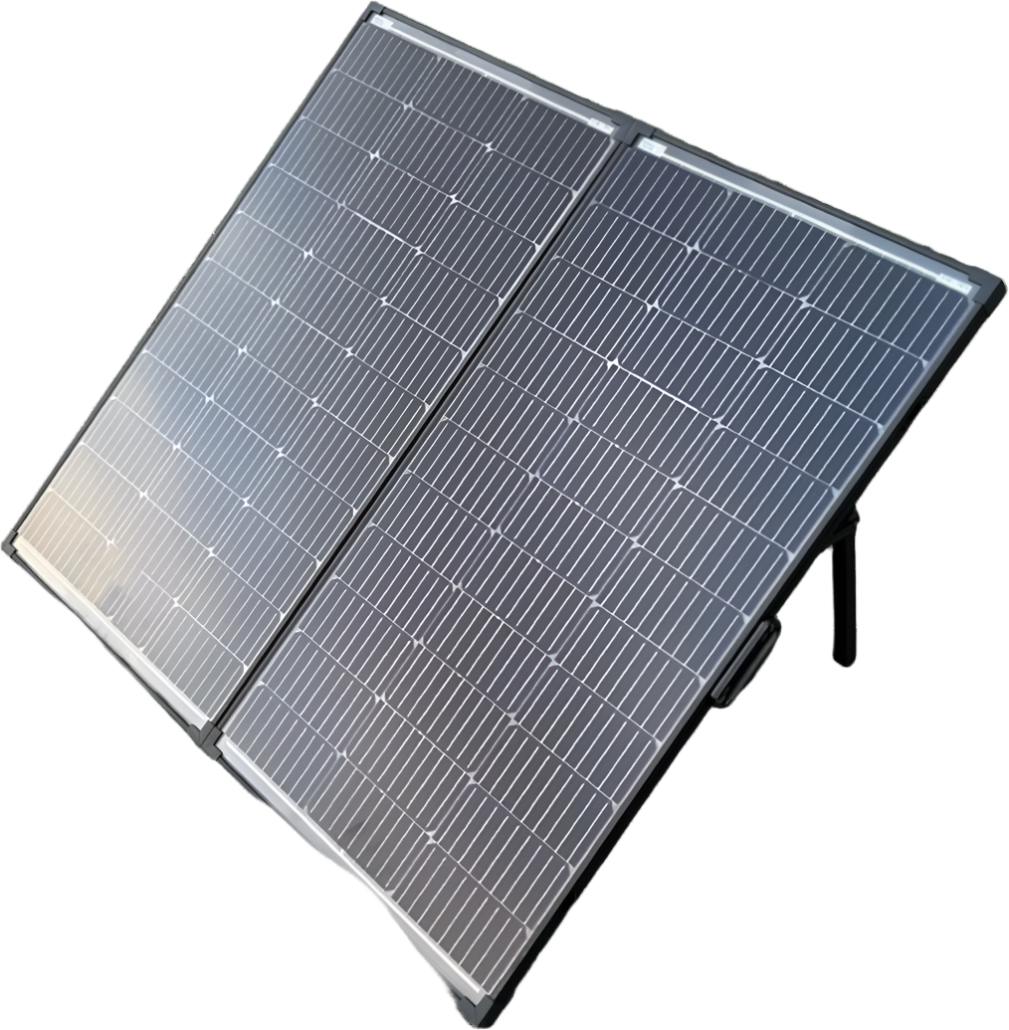

200W BiFacial Folding Solar Panel Kit
A folding solar kit built for people who are done with disposable gear. This
A folding solar kit built for people who are done with disposable gear. This Canadian-made 200W bi-facial kit uses full glass modules, a rigid anodized aluminum frame, and adjustable legs to deliver the same long-life performance as permanent rooftop panels — just in a portable, aim-anywhere format.
Where fabric-style solar blankets fade, sag, and underperform, this kit stays stable in wind, handles real weather, and produces noticeably more usable power thanks to its high-efficiency PERC cells and bifacial rear-side gain. It’s engineered to last, hold its output for years, and deliver the kind of reliability that makes its price make sense the moment you use it.
Who this kit is ideal for
- RVs, travel trailers, and campers that already have a solar charge controller installed.
- Portable power station owners who want a high-quality, glass panel folding kit.
- Van and overland builds needing a portable “aimable” panel to supplement rooftop solar.
- Anyone who prefers the superior durability and performance of a full glass panel with an aluminum frame over fabric-style folding blankets.
What’s included
- 200W folding bi-facial solar panel (2 × 100W glass modules).
- Black anodized aluminum frame and corrosion-resistant hardware.

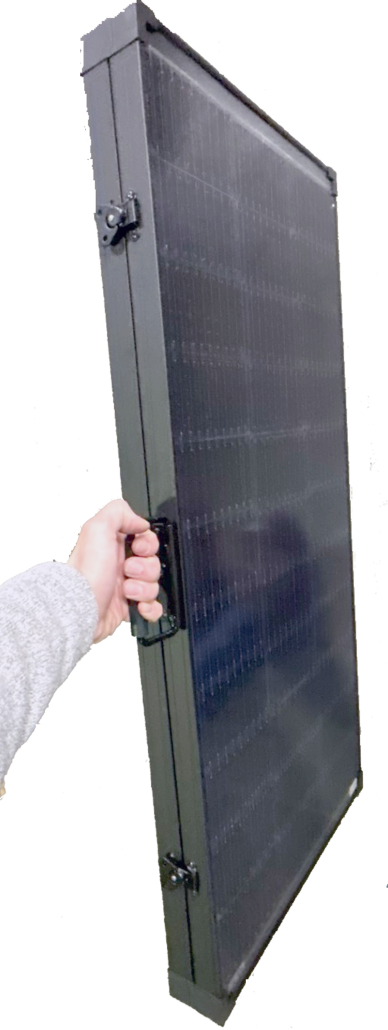

- Built-in folding legs with adjustable tilt, plus carry handle and solid latches.
- Pre-installed MC4 leads, factory wired in series.
- Optional canvas storage/carry bag available separately.
Want to protect your gear and your ride?
A fitted canvas carry case keeps your 200W kit from scuffing the inside of your RV, van, or trailer, while also protecting the panel itself from dirt and travel wear. Handily it also includes a pocket for storing things like adapter cables.
What you’ll connect it to
This kit is designed to plug directly into the equipment you already have:
- Your existing solar charge controller in an RV, trailer, or van, or
- A portable power station with a compatible solar input.
Helpful accessories
- MC4 Splitter “Y” Cables — use these to rewire the kit from series into parallel for lower-voltage systems.
- Power Station Adapter Cables — connect directly to EcoFlow, Bluetti, Jackery, and more.
Prefer a complete kit?
If you don’t already have a solar charge controller, we also offer a version of this kit that includes a matched MPPT controller and battery connection leads.Quick Specs
- Panel Power: 200W (2 × 100W bi-facial glass panels)
- Cell Type: Monocrystalline PERC
- Frame Material: Anodized black aluminum
- Connector Type: MC4-compatible
- Dimensions (Open): 990 × 1060 × 70 mm (41.8 × 41.8 × 2.8 in)
- Dimensions (Closed): 990 × 558 × 66 mm
- Weight: Approx. 14 kg (30.9 lb)
- Origin: Made in Canada (Surrey, BC)

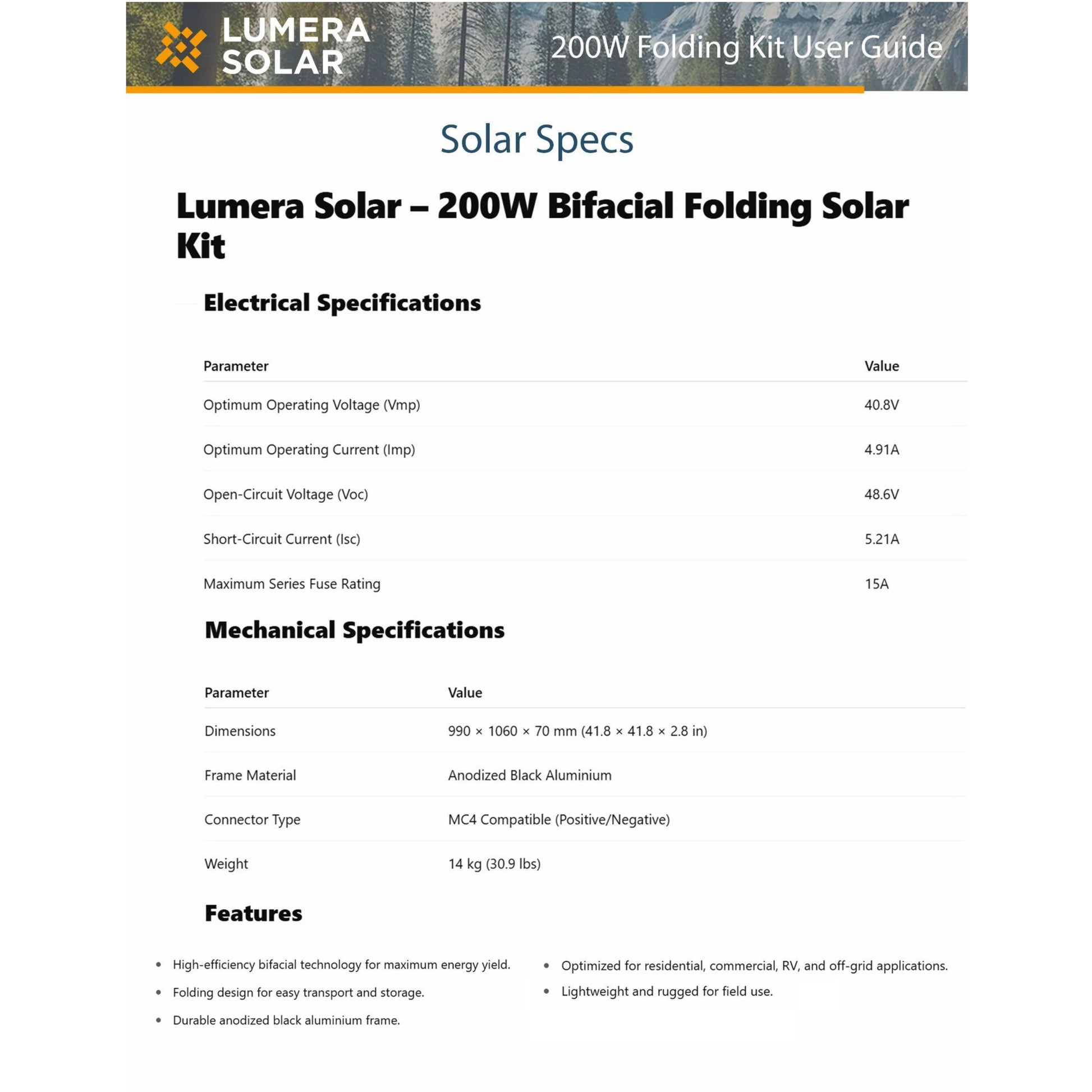

Electrical Specs
| Parameter | Series* | Parallel |
|---|---|---|
| Pmax | 200W | 200W |
| Vmp | 40.8V | 20.4V |
| Imp | 4.91A | ≈9.82A |
| Voc | 48.6V | 24.3V |
| Isc | 5.21A | ≈10.42A |
| Max Series Fuse | 15A | 15A (per string) |
*Factory wiring is series connected.
Specifications subject to change without notice.
Values above are based on STC (1000 W/m², 25 °C, AM 1.5). The folding kit ships factory wired in series but can be rewired in parallel with MC4 splitter cables
Shipping
This kit ships free to most locations in Canada. Remote or hard-to-reach areas may require a small surcharge due to size and weight.
Share
Good quality product, very well packaged thankfully, as the courier company left several dings and holes in the outer box. We just returned from camping in a very shady site, which would normally have us using our generator by the third day, but this panel set up kept us charged up all week. So far, we are very happy with our purchase. Customer service has been excellent so far too.
